Replacement

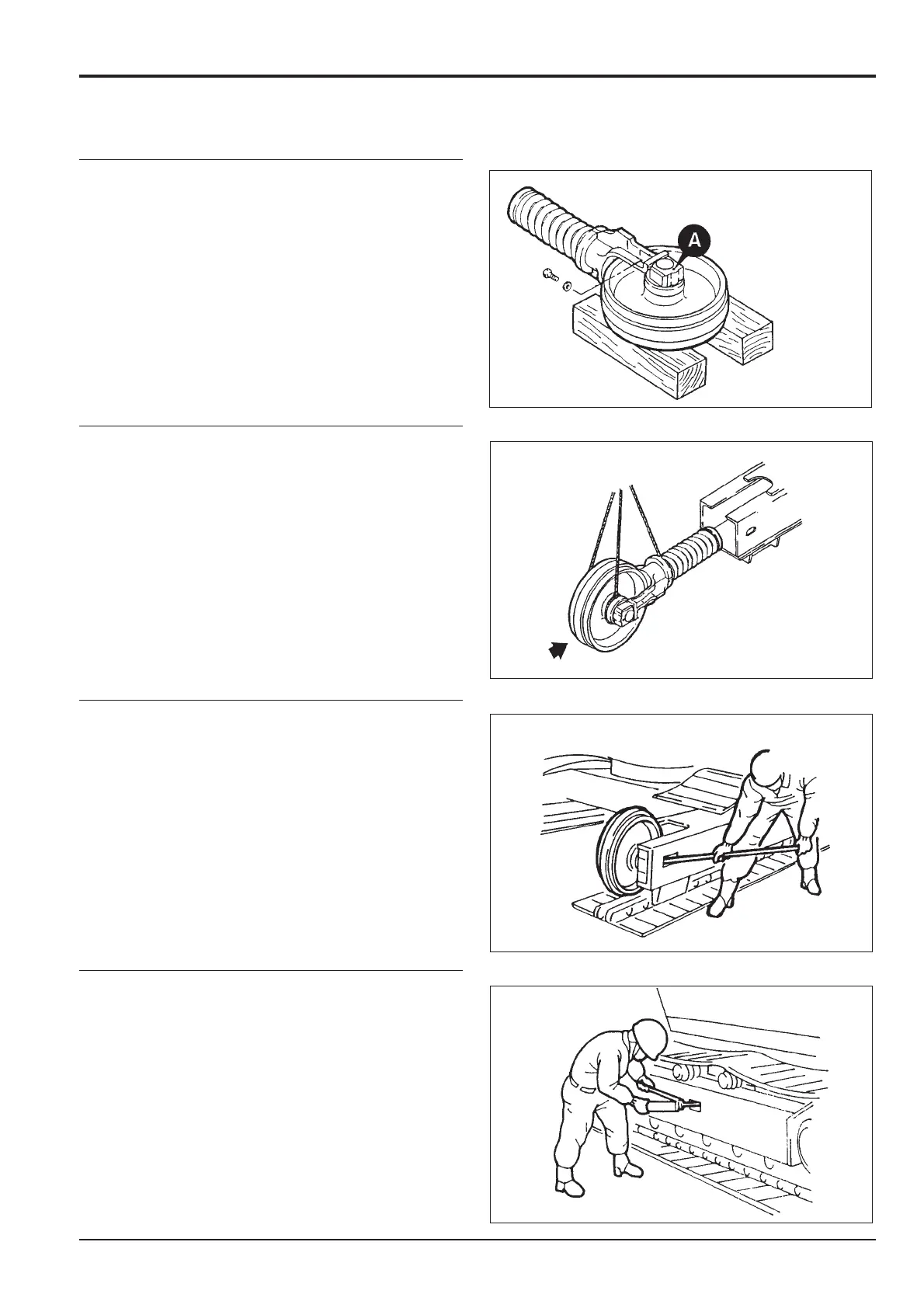

1. Before fitting the idler wheel, check the oil level at A.
If required, top up with the specified oil (see section 3).
Assemble the idler wheel to the recoil unit and fit the
mounting bolts.
2. Fasten a sling around the idler wheel and recoil
assembly and enter it into the undercarriage.
3. Position the idler wheel in the undercarriage using a bar.
4. Connect the track link (see Track Motor/Reduction
Gearbox, Removal and Replacement, Section F).
Section J
Track and Running Gear
9803/6400
Section J
2 - 2
Issue 2*
Idler Wheel and Recoil Unit (continued)
*
