jcb JS210 Service Manual

Schematics, Technical Data
40 - 1
Section E
Hydraulics
9803/6400
Section E
40 - 1
Issue 2*

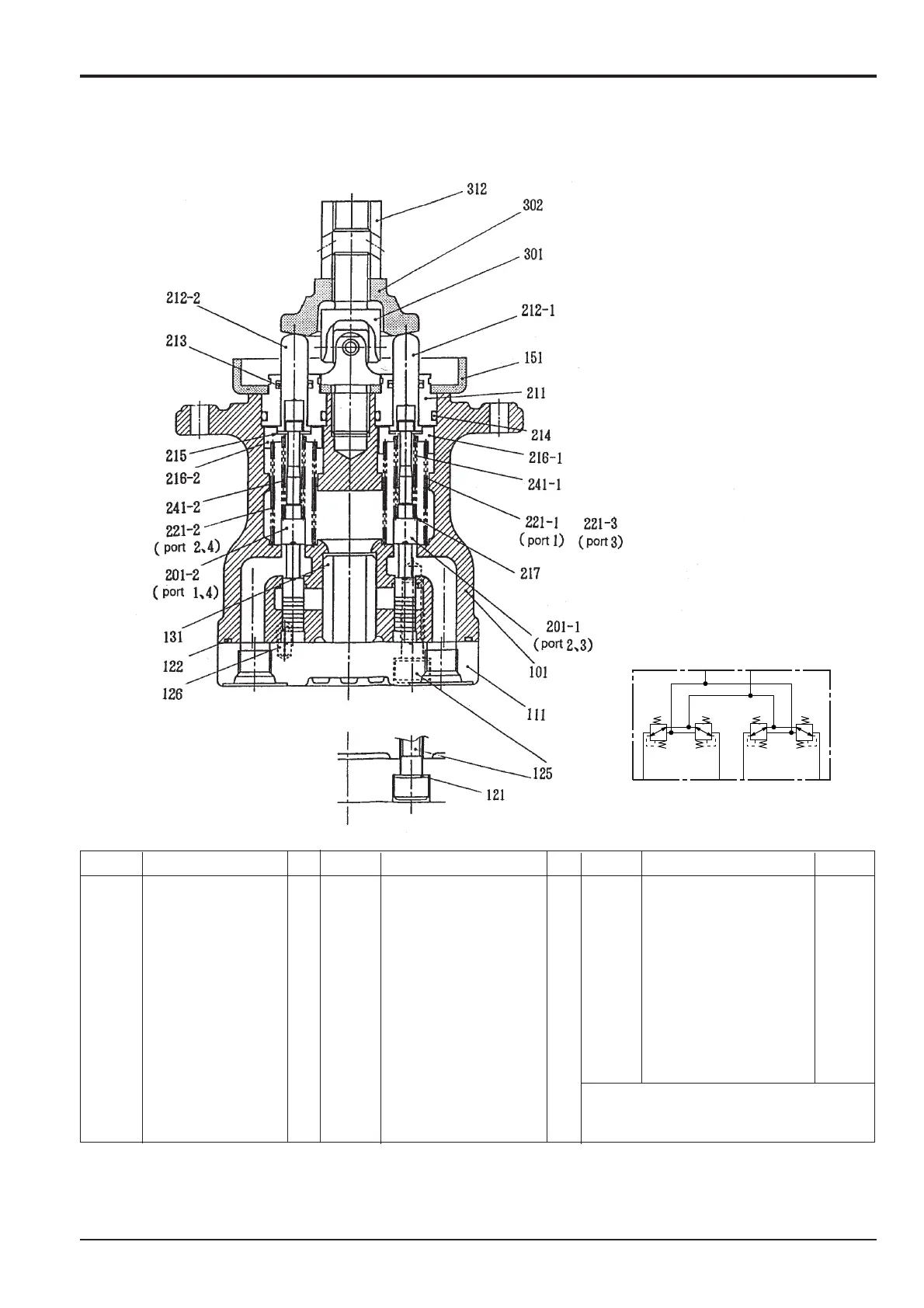

Remote Control Valve JS200/JS240
Symbol Part Name Qty Symbol Part Name Qty Symbol Part Name Qty
101 Case 1 211 Plug 4 221-2 Spring 2
111 Port plate 1 212-1 Push rod 2 221-3 Spring 1
121 Seal washer 2 212-2 Push rod 2 241-1 Spring 1
122 O-ring 1 213 Seal 4 241-2 Spring 1
125 Hexagonal socket bolt 2 214 O-ring 4 301 Joint 1
126 Spring pin 1 215 Washer 1 8 302 Disc 1
131 Bushing 1 216-1 Spring seat 2 312 Adjusting Nut 1
151 Plate 1 216-2 Spring seat 2
201-1 Spool 2 217 Washer 2 4 Seal kit 1 set
201-2 Spool 2 221-1 Spring1 (121,122, 213, 214)
*
*
*
PT
1324
JS03600
*
