jcb JS210 Service Manual

40 - 2
Section E
Hydraulics
9803/6400
Section E
40 - 2
Issue 2*

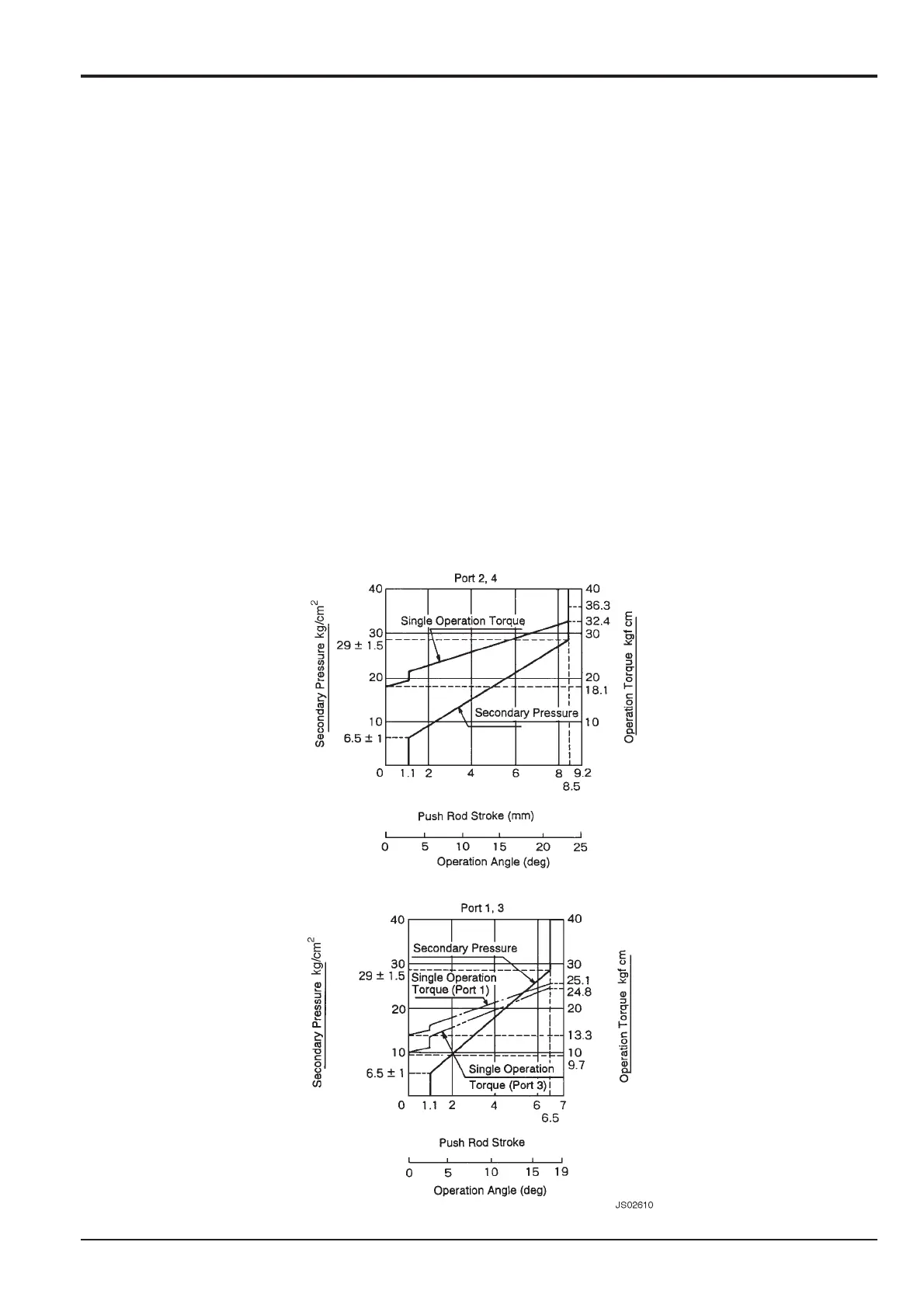

Remote Control Valve JS200/JS240
Schematics, Technical Data
Working pressure 40 kgf/cm
2
(38.6 bar, 568.9 lb/in
2
)
Primary pressure Max. 100 kgf/cm
2
(96.7 bar, 1422 lb/in
2
)
Secondary pressure 0~45 (maximum control pressure) kgf/cm
2
(0-43 bar, 639.2 lb/in
2
)
(differs for each machine type)
Allowable back pressure Max. 3 kgf/cm
2
(2.89 bar, 42.6 lb/in
2
)
Flow rate 20 l/m (4.39 imp gal)
Control operation angles Single handle Alone ±19°
Simultaneous ±25°
Double handle ±26.5°
Weight Single handle Approx. 4.6 kg (2.08lb)
Double handle 6 kg (2.72lb)
*
*
*
*
*
*
