jcb JS210 Service Manual

4 - 5
Attachments (continued)
Bucket and Bucket Link Installation JS200,
JS200LC
Bucket Link and Bucket Ram Installation
JS200, JS200LC
Section B
Body & Framework
9803/6400
Section B
4 - 5
Issue 2*

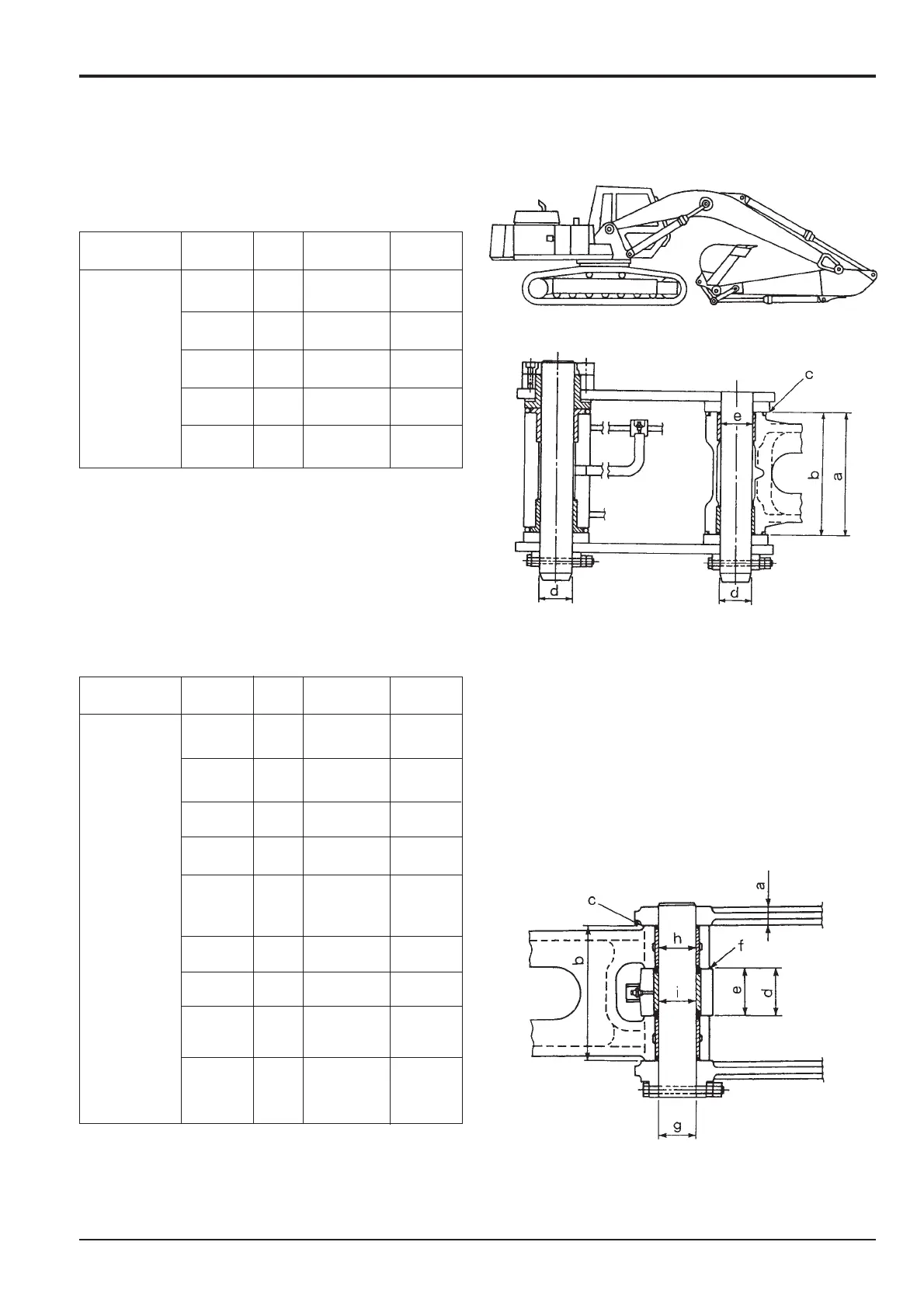

Maintenance Specifications
*
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
9. Bucket and Bucket a 307 313
bucket link
installation
Bucket link b 306 304
Clearance c 1.0-3.5
Pin d ø80 ø79
Bushing e ø80 ø81.5
(bucket link)
Shim for
adjustment
KRV1197
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
10. Bucket link Dipper Link a 46 43
and bucket
ram
installation
Bucket link b 280 278
Clearance c 1.0-1.5
Bucket link d 96 98
Bucket
ram e 95 93
(eye end)
Clearance f 1.0-2.0
Pin g ø85 ø84
Bushing h ø85 ø86.5
(Bucket link)
Bushing
(Bucket i ø85 ø86.5
ram)
Shim for
adjustment
KHV0170
Shim for
adjustment
KHV0170
