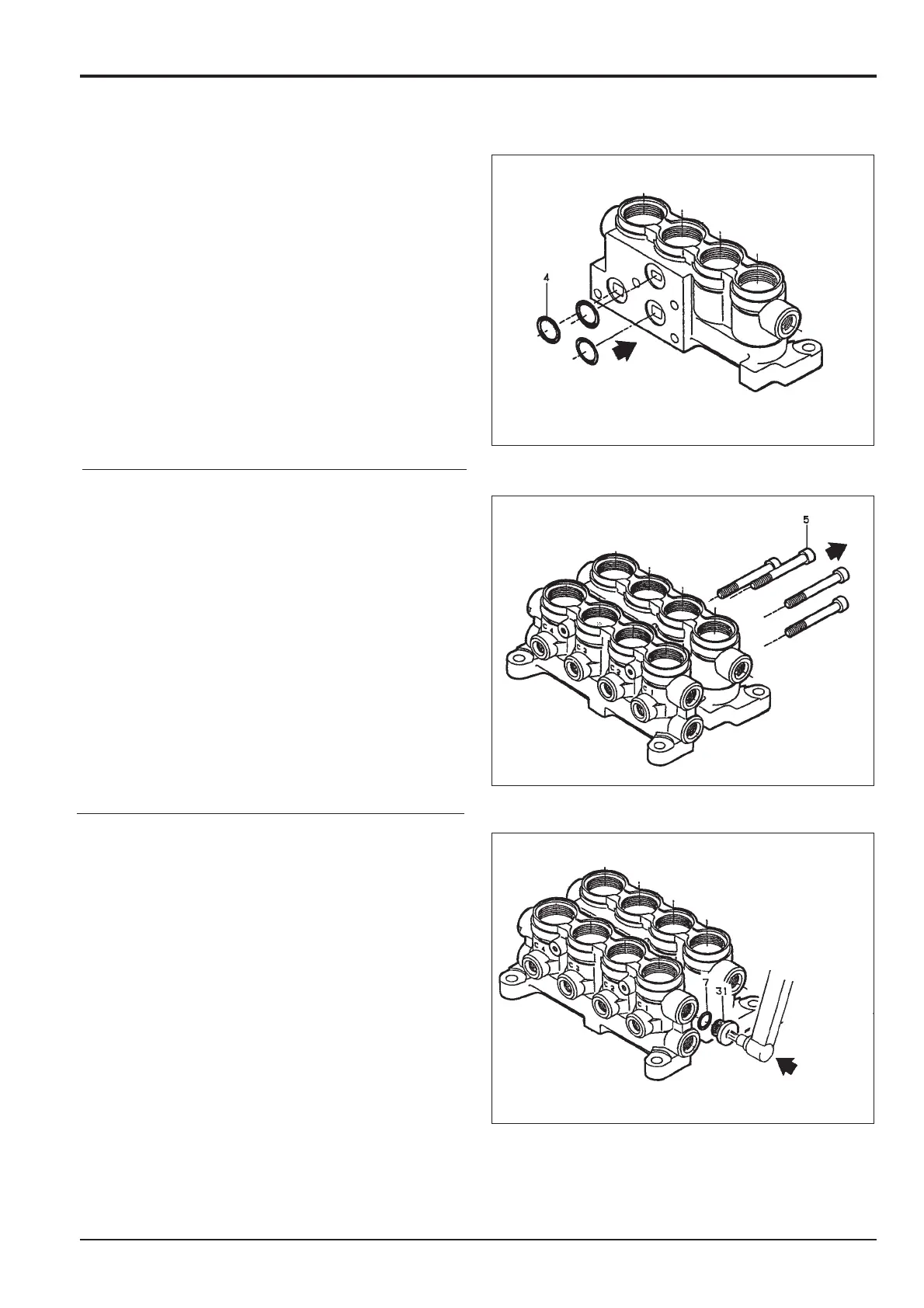

51 - 6
Assembly
1.
Install the 'O'-ring (4) on the housing (1).
2.
Use the socket head bolt for housing (1) and (2) and
tighten to 24.5 + 4.9 Nm (18.08 + 0.5 kgf m).
- 0 Nm
- 0 kgf m
3.
Install the 'O'-ring (7) on the plug (31) and assemble to
the housing, tighten to 19.6 + 4.9 Nm (14.47 + 0.5 kgf
m).
-0 Nm
-0 kgf m)
Section E
Hydraulics
9803/6400
Section E
51 - 6
Issue 2*
Solenoid Valve (8-spool)
*
*
