Dipper Ram
(continued)
6.

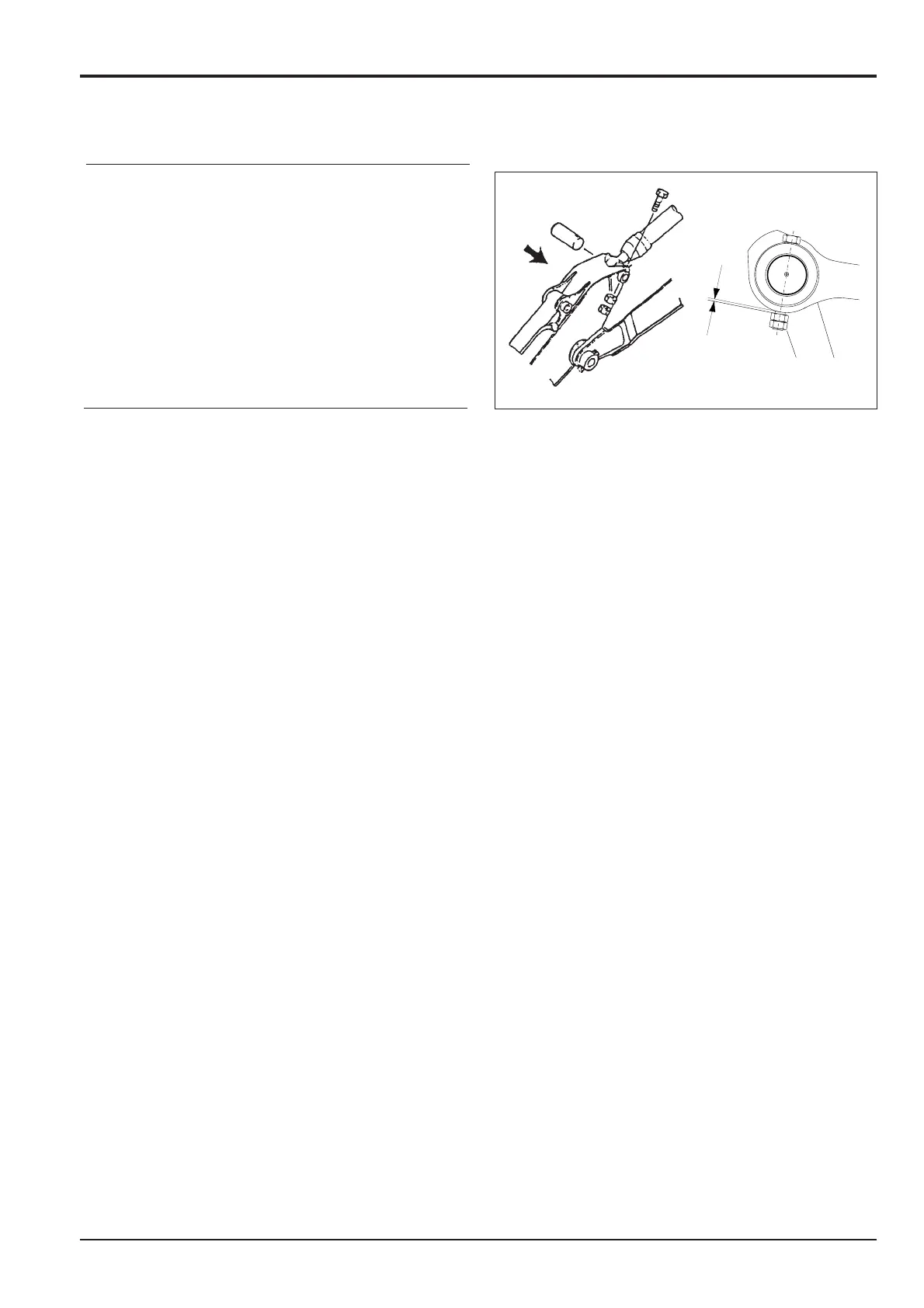

Install the pin, bolt and nuts. When checking or refitting
JS machine pivot pins, the retaining nuts and bolts
should not be fastened up tight but must have
approximately 3mm of play so that the pin is free from
tension.
Note:
Stroke the ram to release entrapped air
. After releasing
the air
, check for oil leakage.
73 - 5
Section E
Hydraulics
9803/6400
Section E
73 - 5
Issue 2*
Hydraulic Rams
3mm
*
347
349
