Boom Ram
(continued)
8.

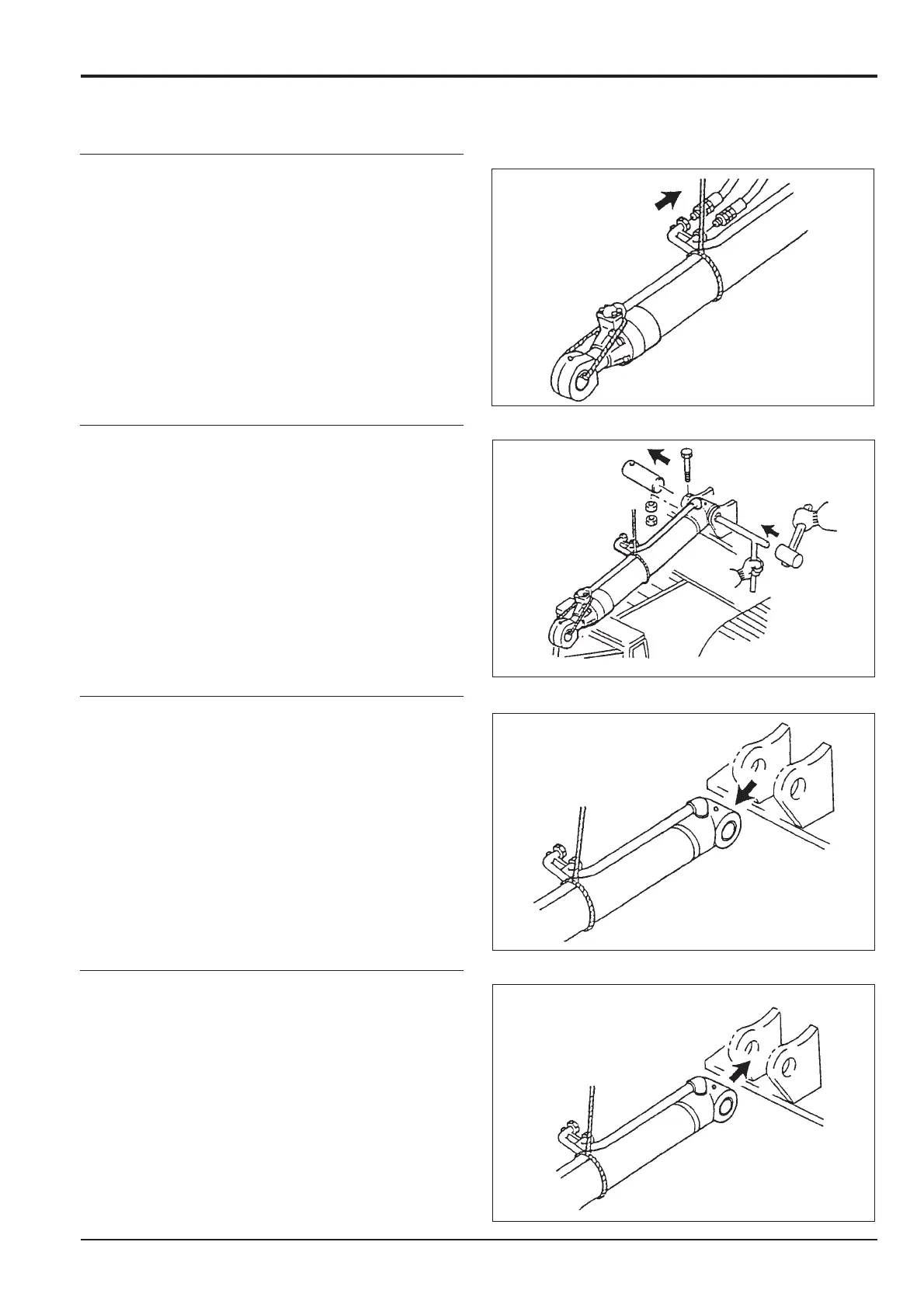

Remove the boom ram hoses, and install plugs or caps
to prevent contamination.
9.
Remove the nut and bolt and push out the pin with a
hammer and bar.
10.
Lift the boom ram away from the unit.
Installation
1.
Attach a sling to lift the boom ram.
Align the main frame to the installation position.
74 - 3
Section E
Hydraulics
9803/6400
Section E
74 - 3
Issue 1
Hydraulic Rams
350
