77 - 9
Section E
Hydraulics
9803/6400
Section E
77 - 9
Issue 1
Hydraulic Rams
Reconditioning (continued)
Bush Assembly (continued)
At the press, push on the bolt head of the adjuster and
gradually press-fit the bushing into the specified position
in the cylinder head.
The press load should be less than 5 tons.
Verify that the bushing end surface is below the snap ring
groove.
After the press-fitting of the bushing is completed, remove
the retainer and chuck assembly from the cylinder head.
Continue attaching the seals and press-fitting the wiper
ring.
Verify that the bushing is press-fitted correctly.

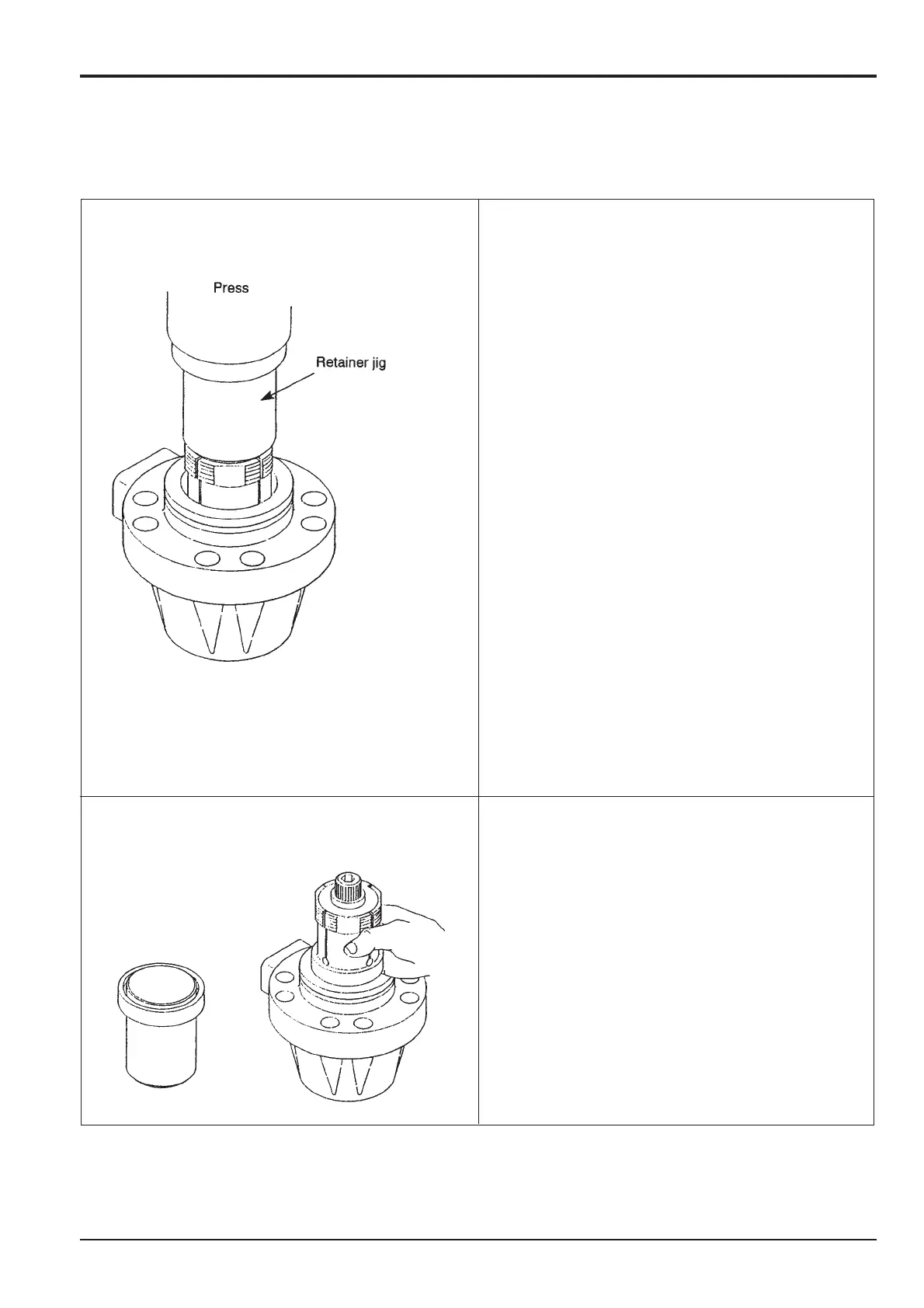

6. Press-fitting the bushing
7. Removal of retainer (jig) and chuck assembly (jig)
