jcb JS210 Service Manual

82 - 6

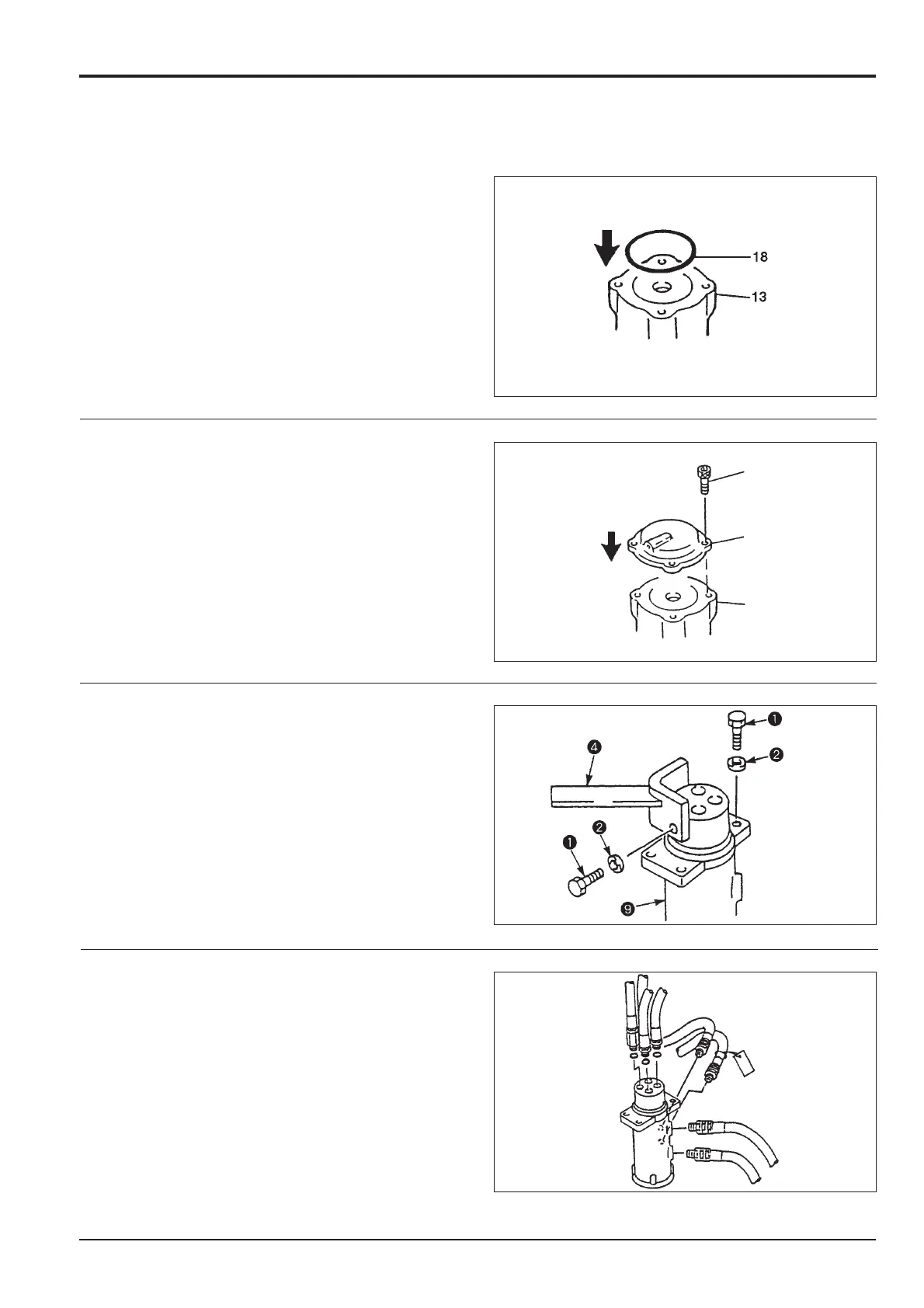

Assembly JS200/JS240 (continued)
7. Install the 'O'-ring.
8. Install the cover.
9. Align the coupling (9) to the lower frame and tighten the
rotating joint installation bolt (1) and.
Tighten the lock bar installation bolt (1) and washer (2) to
the specified torque, 109-127 Nm (11.1-12.9 Kgf/m,
80.28-93.28 lb/ft) and install the lock bar.
10. Reconnect the hoses, and install the access cover,
remove the wooden block, lower the machine to the
ground.
Start the machine and check for leaks.
Section E
Hydraulics
9803/6400
Section E
82 - 6
Issue 1
Rotary Coupling
20
19
13
