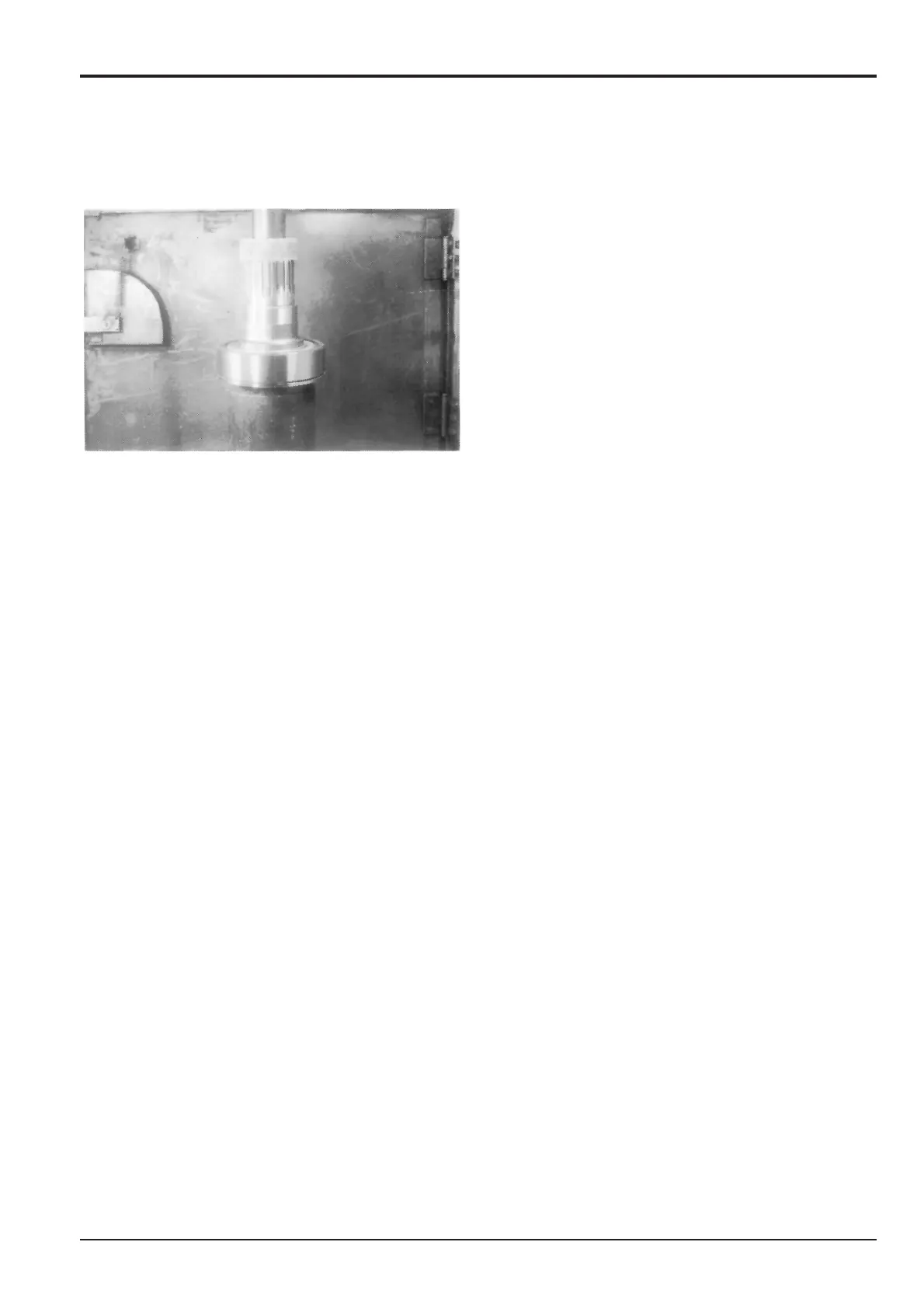

94 - 4
Section E
Hydraulics
9803/6400
Section E
94 - 4
Issue 2*
Slew Motor
*
13
Carry out the following procedure only when bearing
57
is damaged or badly worn, and dismantling is
necessary.
Support the self aligning roller bearing
57
, then press
the motor end of shaft
53
to remove bearing
57
, plate
56
and collar
54
from the shaft
53
.
Reduction Gear
Dismantling (cont’d)
429
431
