4 - 1
Section F
Transmission
9803/6400
Section F
4 - 1
Issue 1
Motor/Gearbox
Precautions during Installation
Before installation, check the overall condition of the axial piston motor, are any parts loose, are P1, P2 drain ports and pilot
ports completely sealed so that contaminants cannot enter the axial piston.
Rotation Direction
The relationship between the flow direction of the hydraulic oil and the rotation direction is as shown below.

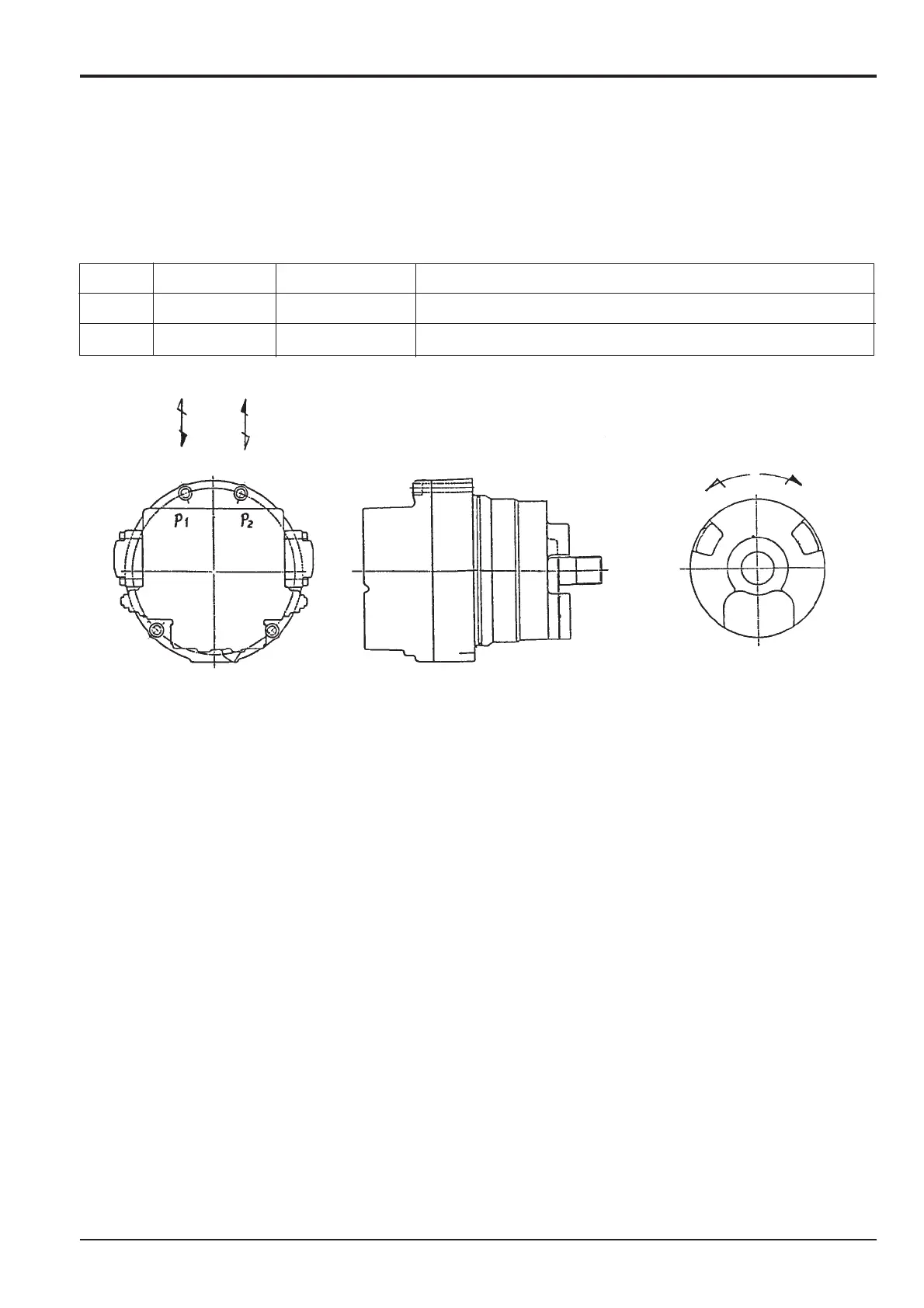

Fig 9. Rotational Direction
Arrow Oil input port Oil output port Rotation direction (viewed from output shaft end of motor)
P1 P2 Rotation to right (clockwise)
P2 P1 Rotation to left (counterclockwise)
