Assembly
(continued)
7.

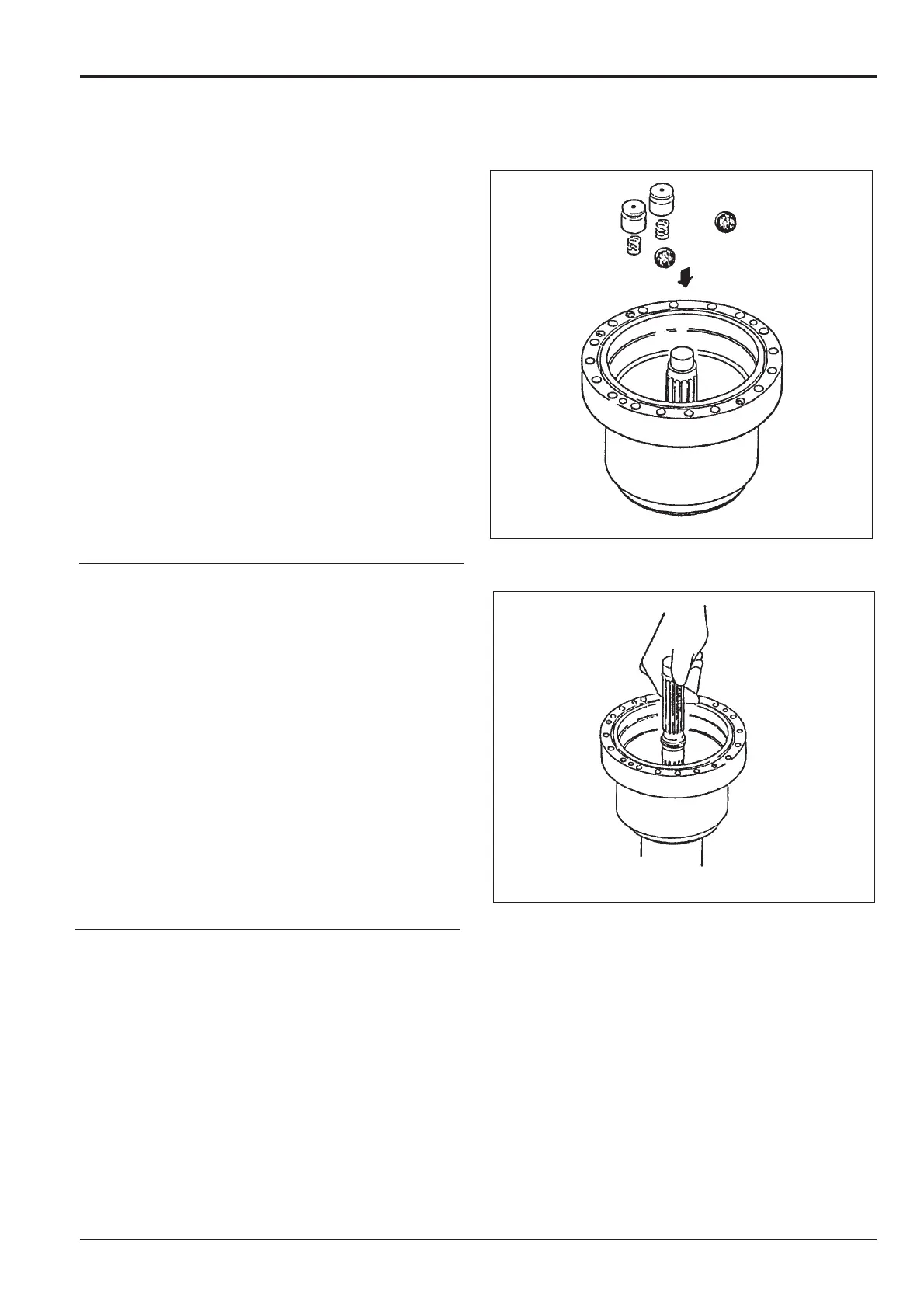

Assemble the (10) steel balls, (40) spring and (11)
piston into the (1) case.
8.
Install the (3) shaft into the (1) case.
Note:
Be careful not to damage the oil seal lip.
Section F
T
ransmission
9803/6400
Section F
7 - 10
Issue 1
Motor
475
477
