Dismantling
Note: The numbers in the following section refer to the
illustration at the start of this Section. Before starting
dismantling drain the oil. (See Routine Maintenance.) Clean
all surfaces with a suitable solvent and dry with compressed
air.
Discard all ‘O’-rings and seals which are disturbed during
dismantling.

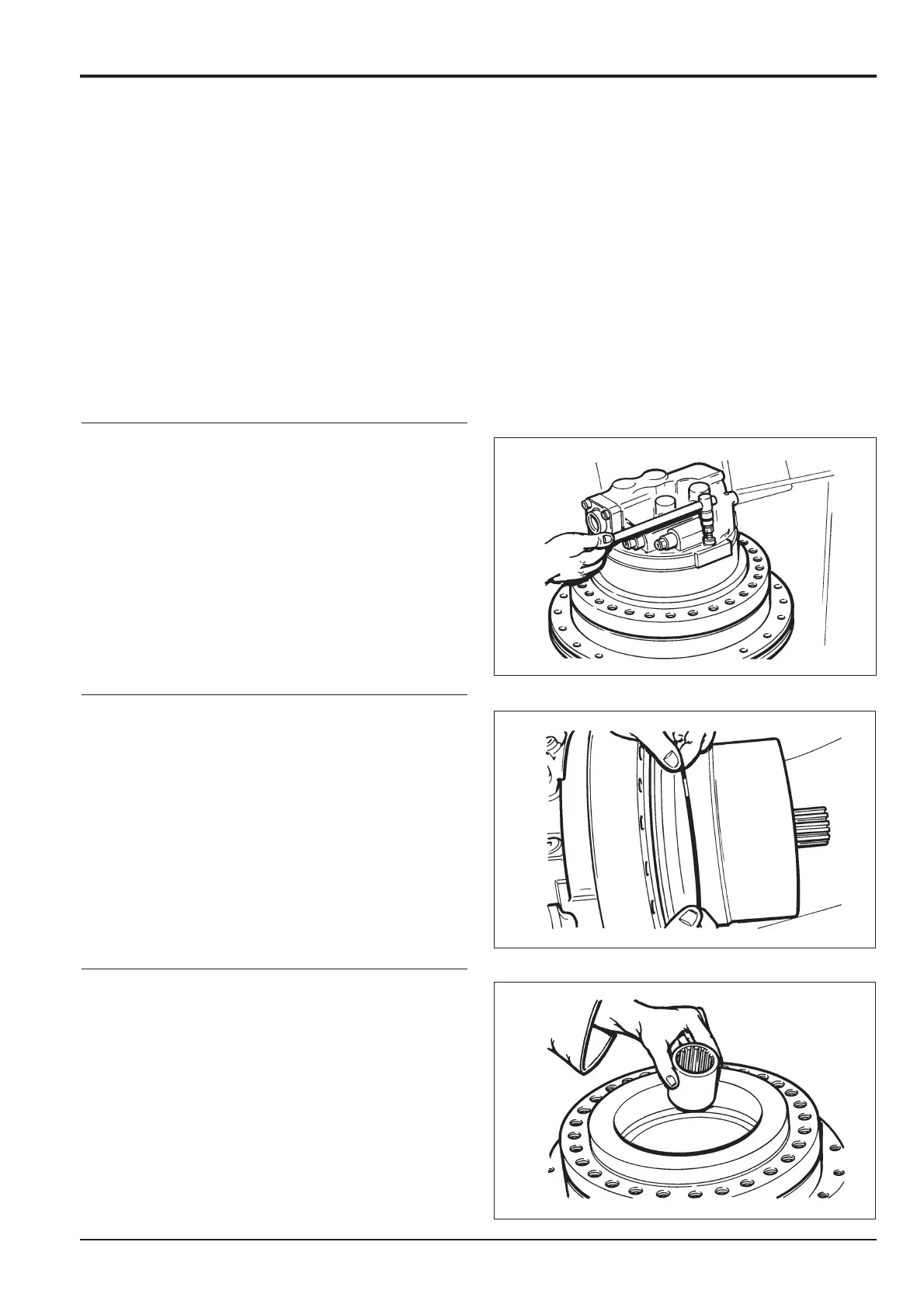

1. Remove the (22) three socket head screws, and
remove the hydraulic motor from the gearbox.
2. Remove the (18) ‘O’-ring, from its groove on the
(21) motor.
3. Remove the (19) coupling.
