9 - 5
Dismantling (continued)

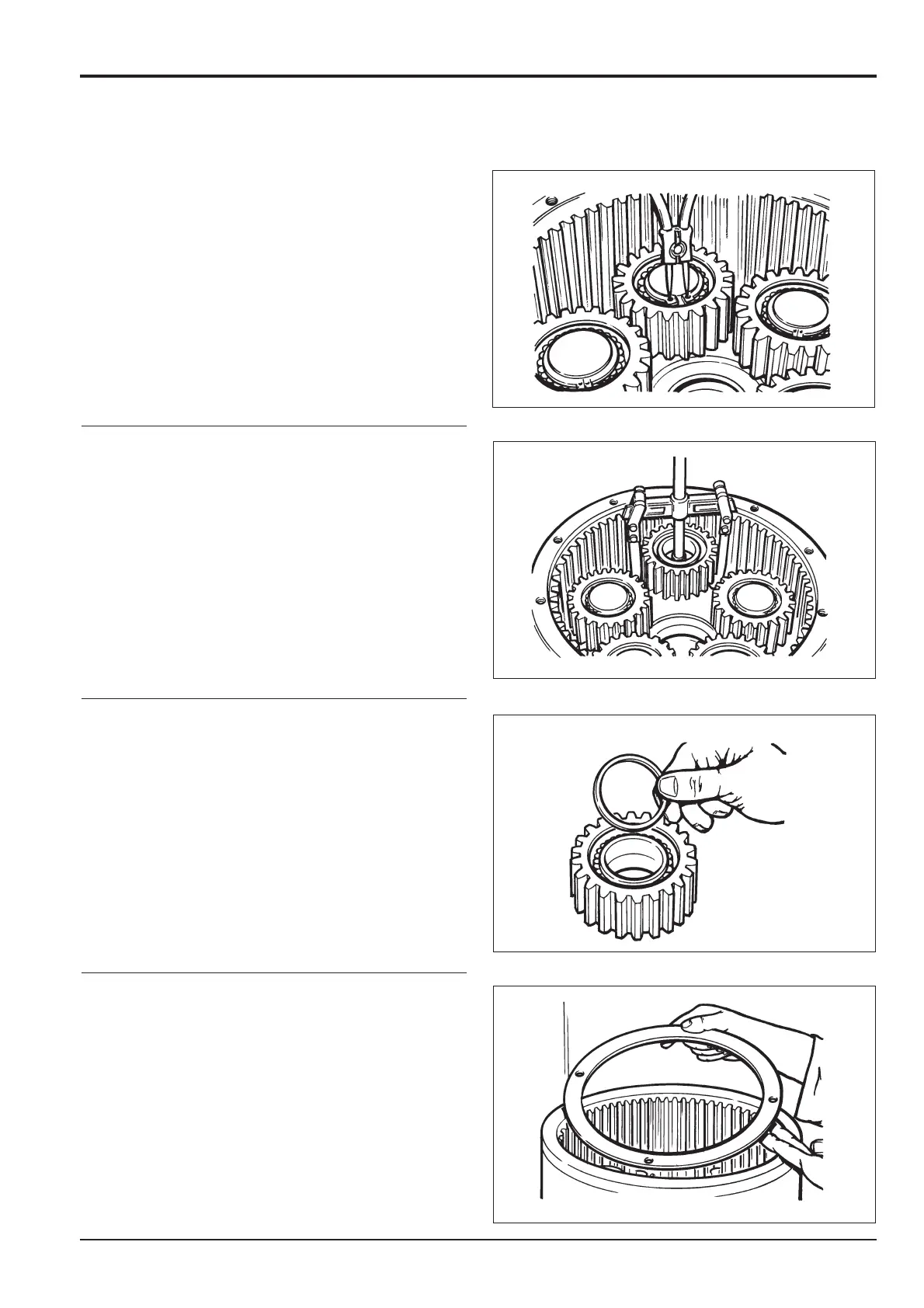

12. Remove the (10) circlip, from the planet assembly
of the third reduction assembly.
13. Use a puller and remove the (11) five planet gears off the
third reduction assembly.
14. Remove the (12) spacers, positioned on the back of the
planet gears of the third reduction assembly.
15. Using a punch, remove the deformed section of the
(13) ring nut. Use the special tool, unscrew the (13)
ring nut.
Section F
Transmission
9803/6400
Section F
9 - 5
Issue 1
Gearbox
