9 - 8
Assembly
(continued
)

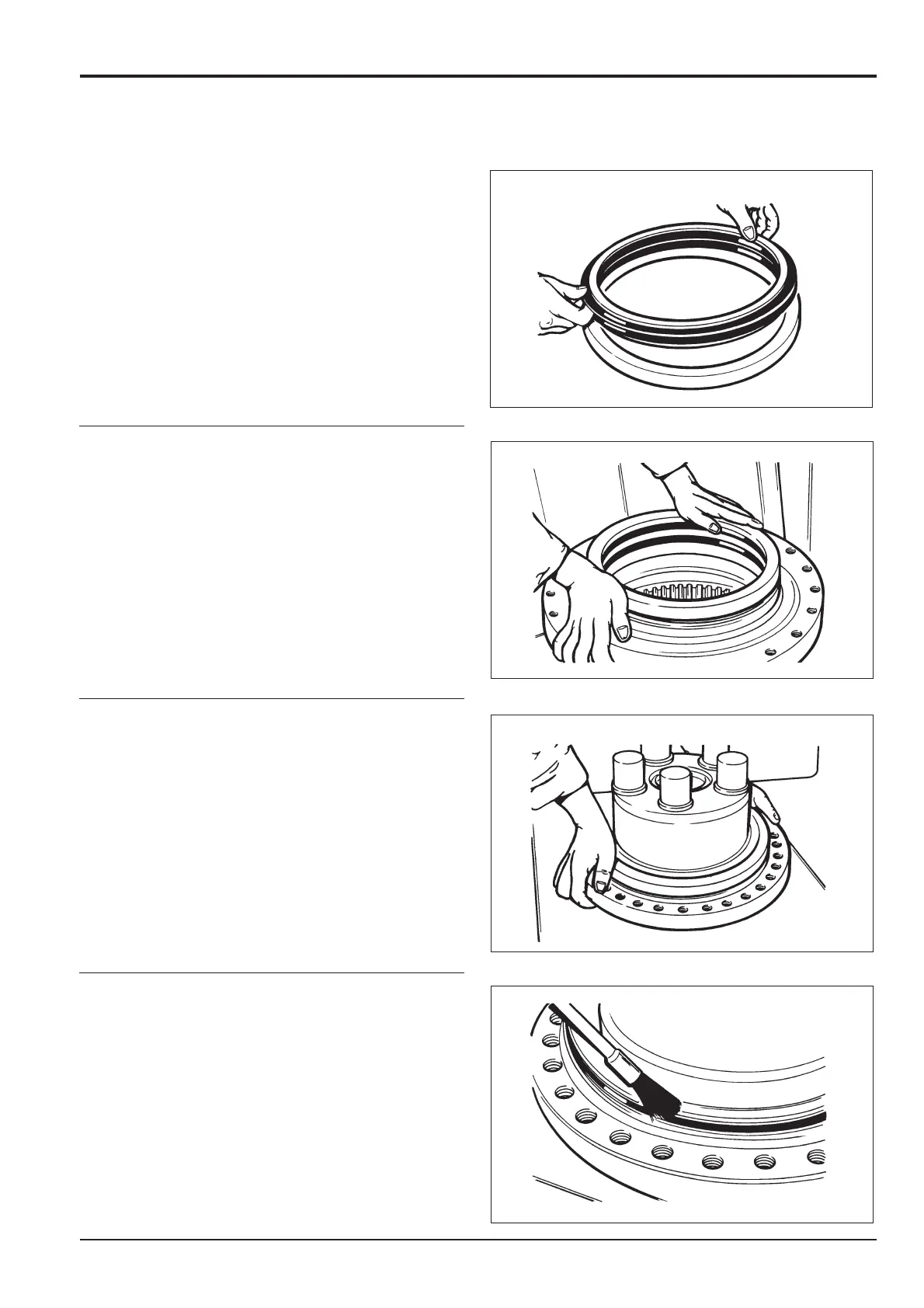

1.
Fit a (15) half seal, on the tool.
2.
Fit the (15) half seal, inside the (14) gearbox housing.
3.
Assemble, by using the same tool, the (15) half seal,
on the (17) flanged hub.
Carefully clean the metal faces of the half seals.
4.
Lubricate the metallic face of the half seal with a thin film
of oil.
Section F
T
ransmission
9803/6400
Section F
9 - 8
Issue 1
Gearbox
491
