Assembly (continued)

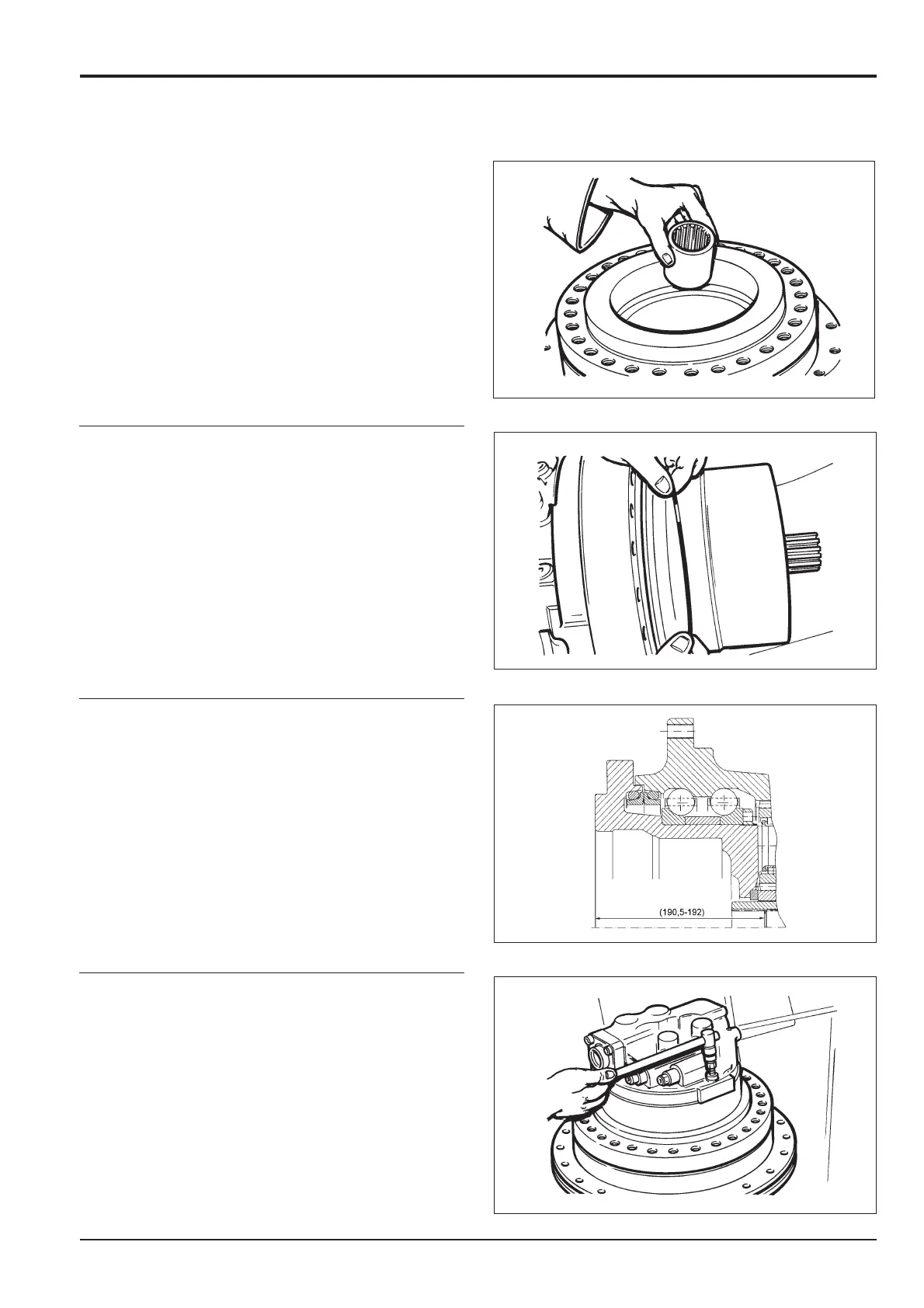

21. Insert the (19) coupling.
22. Fit the (18) O-ring into the groove on the (21) hydraulic
motor.
23. After mounting the (17) hub into the (14) bearing
assembly, check the axial dimension of the
gearbox determined by the input side shoulder of the (17)
hub, with the (20) circlip, inside the (19) coupling.
24. Position the (21) hydraulic motor into the gearbox
and secure the (22) socket screws.
The gearbox should now be filled with the correct amount
and grade of oil. See Lubricants and Capacities. The
assembly is now complete.
