jcb JS210 Service Manual

3 - 3

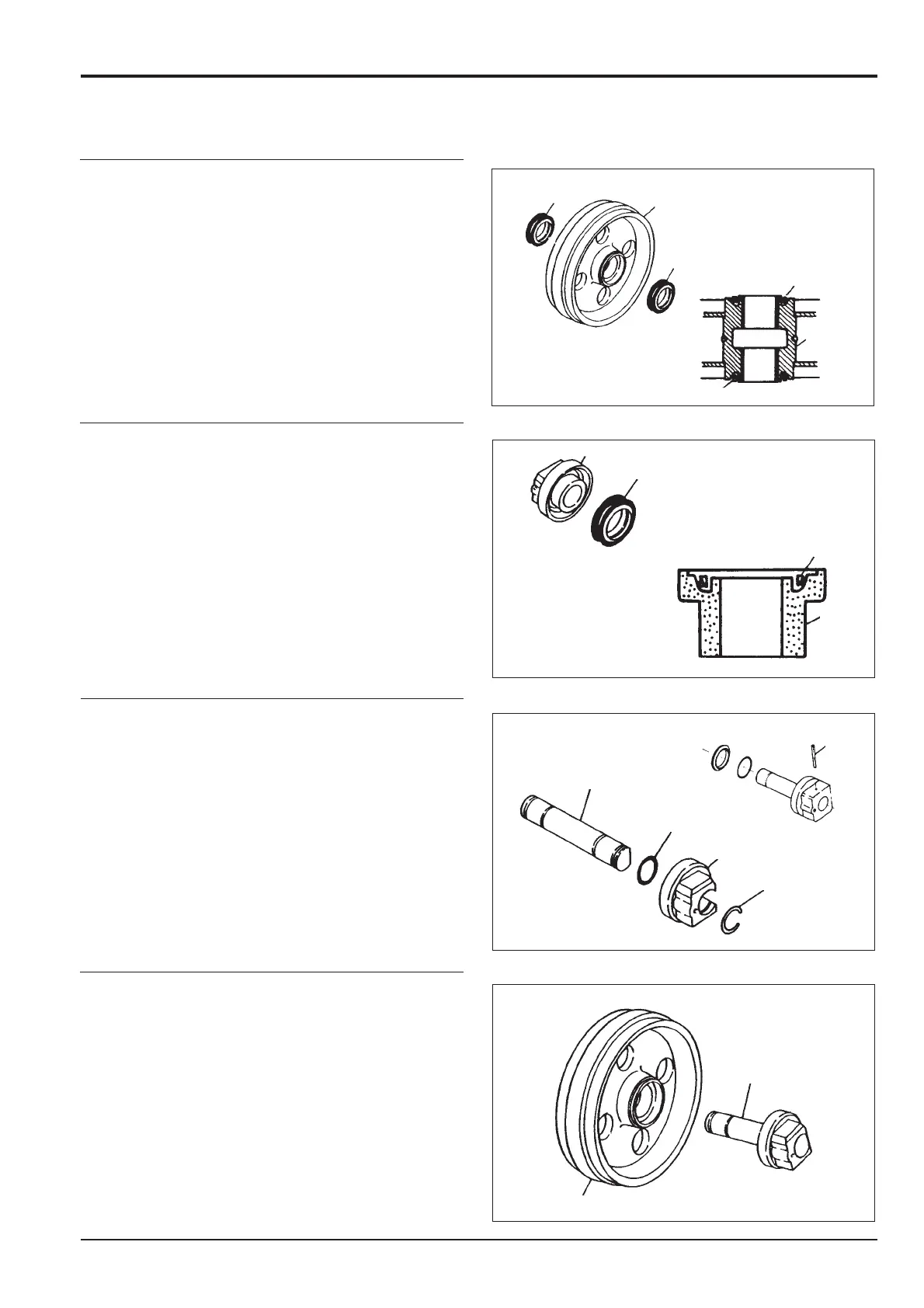

Assembly (continued)
2. Apply a coating of grease and install a new floating seal
J into each side of the idler wheel G.
3. Apply a coating of grease and install a new floating seal
J into hub C.
4. Grease a new 'O'-ring I and install on one end only of
shaft D. Install shaft D into hub C. Fit new wire clip E or
roll pin F.
5. Coat shaft D with grease. Clean the metallic face of the
seal, coat the metallic face with engine oil and insert the
shaft into the idler wheel G.
Section J
Track and Running Gear
9803/6400
Section J
3 - 3
Issue 1
Idler Wheel (continued)
J
G
J
C
J
J
J
G
J
C
D
I
F
C
E
D
G
