Dismantling
Note: The following procedure is applicable to all bottom
rollers, but as there are visual differences, the illustrations
show only a typical unit.

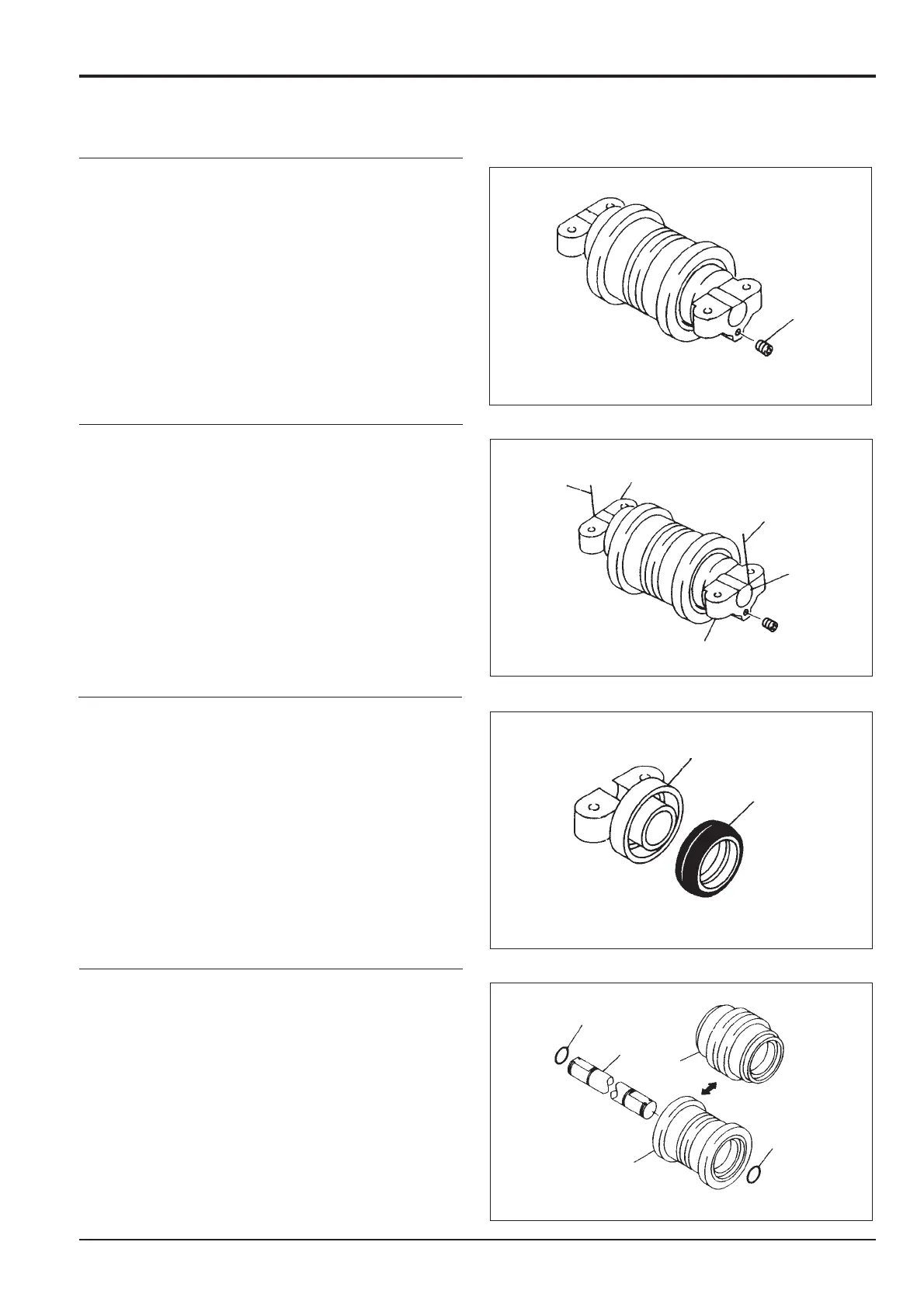

1. Clean the roller with a suitable solvent. Remove the plug
A and drain the oil.
2. Remove locking wire B from each end of the shaft C.
Remove brackets D and E from shaft C.
3. Remove seal F from brackets D and E, using a pry bar.
4. Remove 'O'-rings G from shaft C.
Pull out shaft C from roller H or J.
Section J
Track and Running Gear
9803/6400
Section J
13 - 2
Issue 1
Bottom Roller (continued)
