41 - 8
Assembly
(continued)

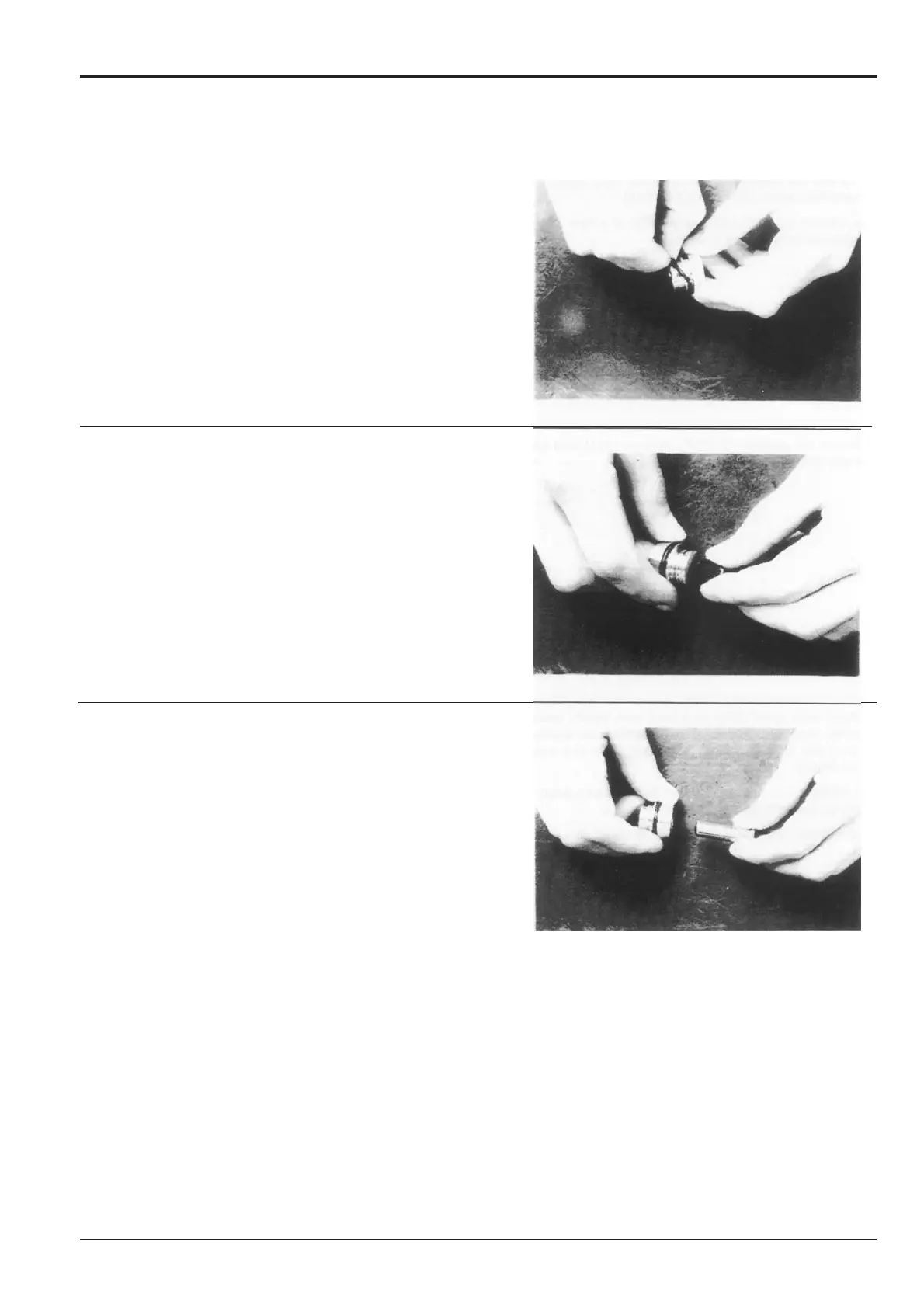

7.
Mount the 'O'-rings (214) into the plug (211).
8.
Mount the seals (213) into the plug (211).
Note:
Mount the seals so that the lips are as shown in the
illustration.
9.
Mount the push rods (212) into the plug (211).
Note:
Apply hydraulic oil to the surfaces of the push rods.
Section E
Hydraulics
9803/6020
Section E
41 - 8
Issue 1
Remote Control V
alve
210
212
