41 - 9

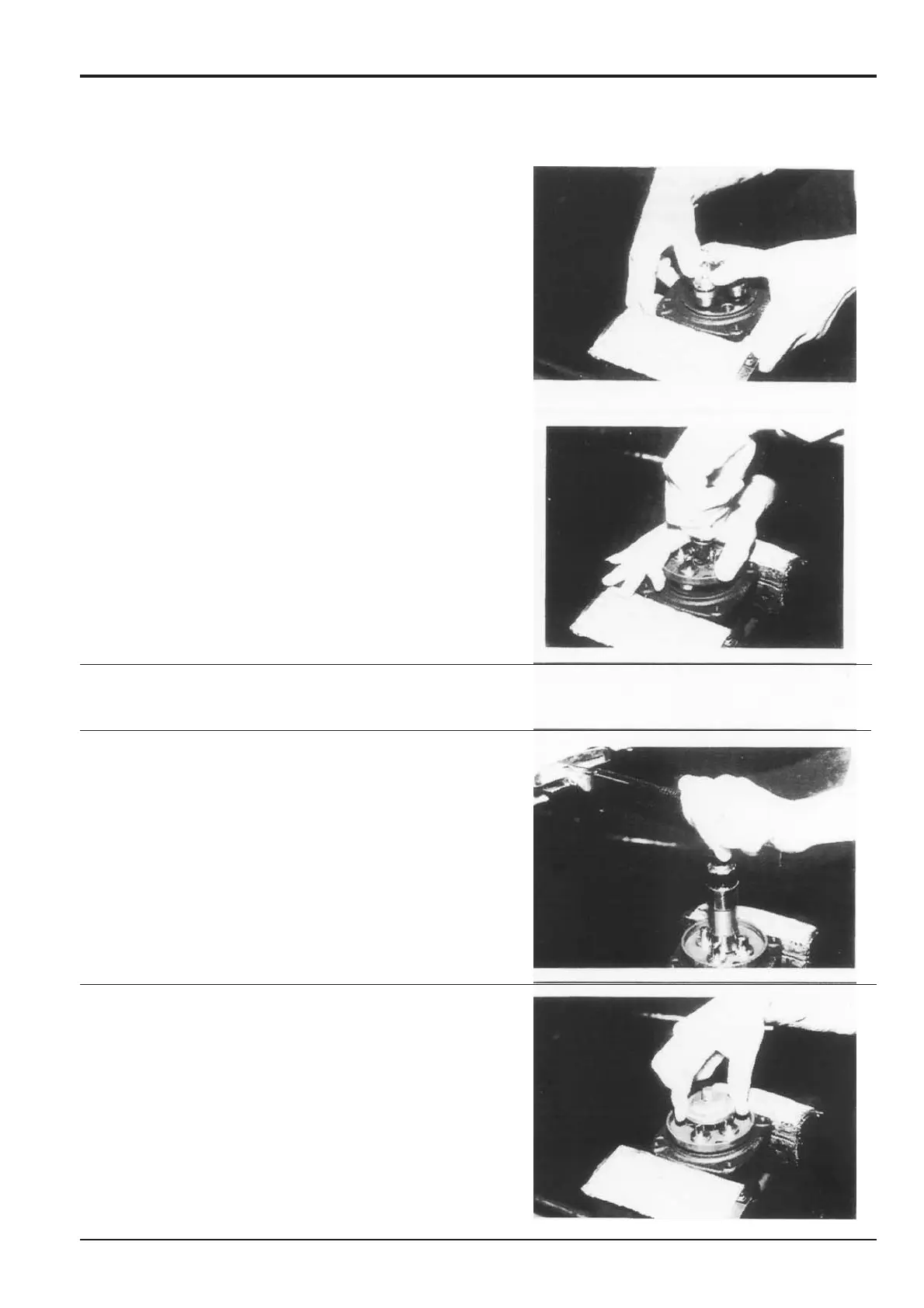

Assembly (continued)
10. Mount the plug assembly into the casing.
If the return springs are weak, the sliding resistance of
the 'O'-rings will hold the plugs in place in the casing.
11. Mount the plate (151).
12. Tighten the joint (301) into the casing to the specified
torque with the jig. Tightening torque 47 ± 2.9 Nm
(34 ± 2.1 lbf ft ).
13. Mount the disk (302) to the joint.
Note: Screw in the disk until it is in equal contact with all
four push rods. (Do not over tighten).
Section E Hydraulics
9803/6020
Section E
41 - 9
Issue 1
Remote Control Valve
To Next Page
