8 - 6
Section F Transmission
9803/6020
Section F
8 - 6
Issue 1
Track Gearbox
Dismantling (cont’d)

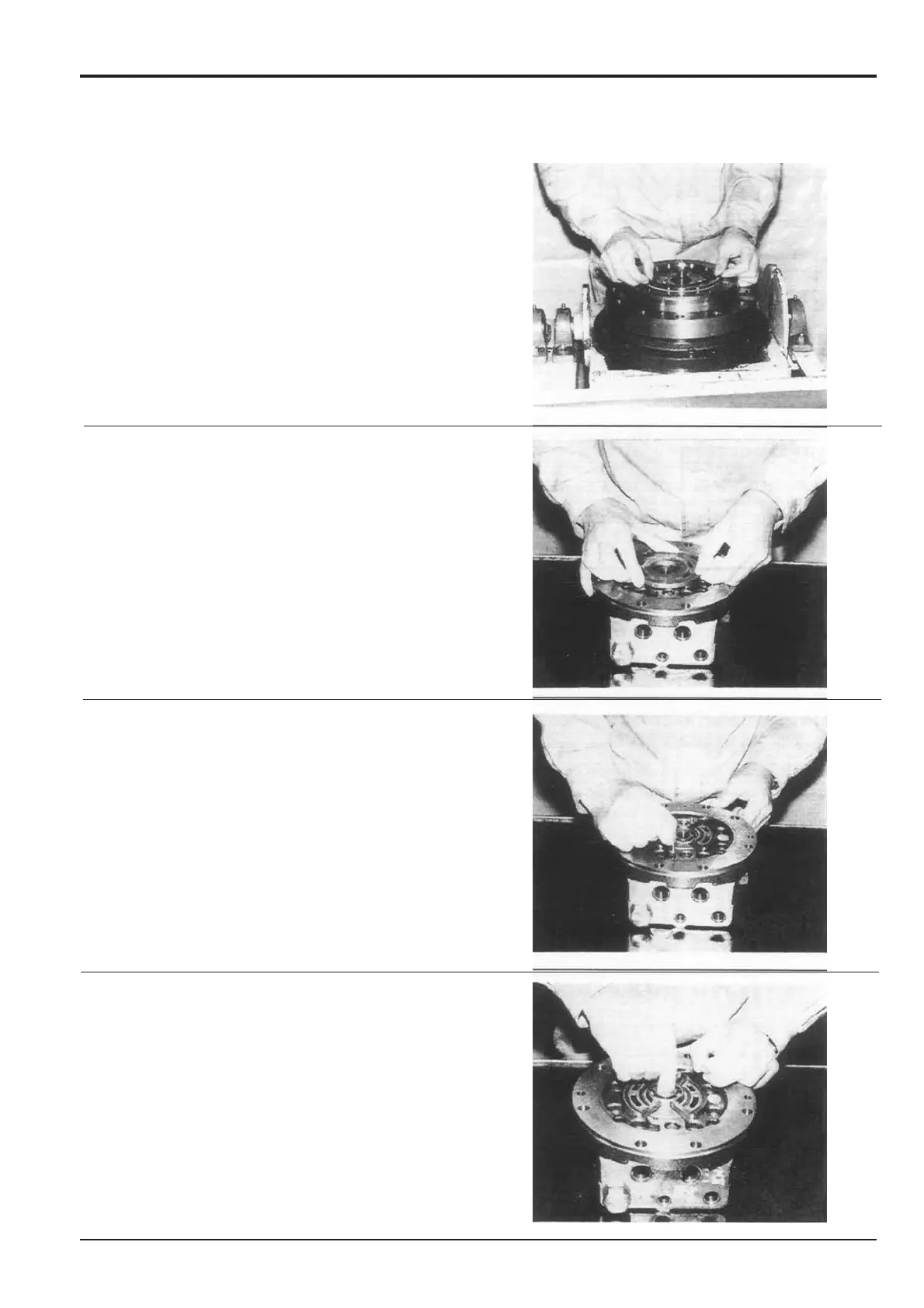

21 Remove 'O' ring 30 from spindle 2.
22 Place the rear flange 101 on the bench with its mating
face upwards. Remove timing plate 109.
Note: If necessary due to the plate sticking, insert a knife
into the groove around the edge of the plate and lever the
timing plate upwards. Do not use a screwdriver or other tool
which could damage the mating surface.
23 Remove the two parallel pins 141 from the rear flange
101.
24 Extract bearing 150 from rear flange 101.
Note: Only carry out steps 25 to 28 if a fault is suspected.
