Dismantling (cont’d)

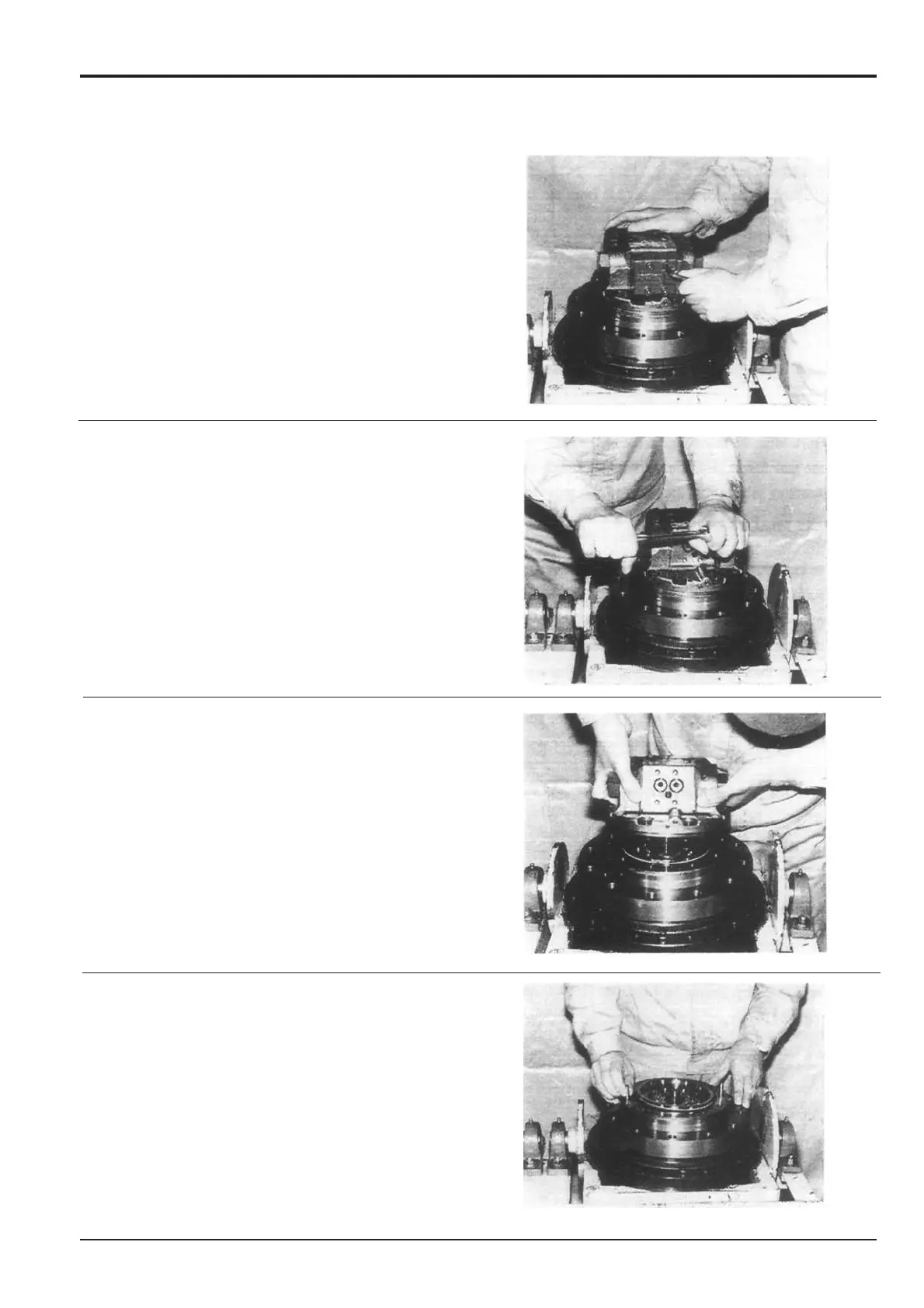

17 Unscrew the four socket head bolts 170 and remove
body 155 from flange 101. Remove and discard 'O'
rings 138 (2 off) and 140.
18 Unscrew the eight socket head bolts 143 from spindle 2.
19 Remove rear flange 101 from spindle 2. Discard the two
'O' rings 27. Make sure timing plate 109 does not fall
out.
20 Remove the eight springs 113. Remove parallel pin 142
from spindle 2.
