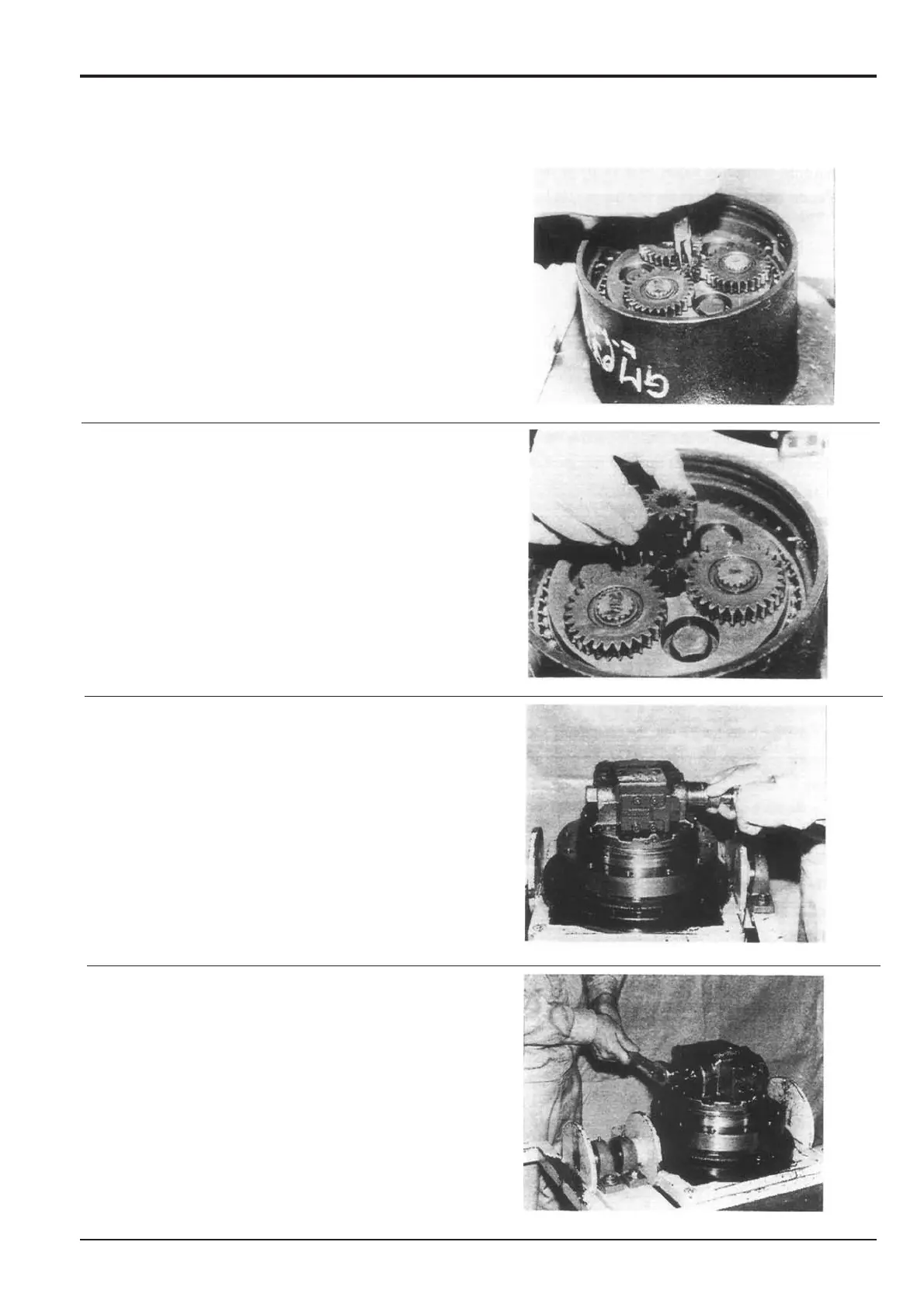

8 - 4
Dismantling (cont’d)
13
Remove snap ring
24
from shaft
102
.
14
Remove input gear
6
from shaft
102
.
Note:
Steps 15 and 16 should only be carried out if rear
flange
101
is to be dismantled (see Steps 26 to 29).
15
Loosen the two plugs
124
so that they can be tur
ned by
hand.
16
Loosen the two plugs
126
so that they can be tur
ned by
hand.
Section F
T
ransmission
9803/6020
Section F
8 - 4
Issue 1
T
rack Gearbox
309
