8 - 13

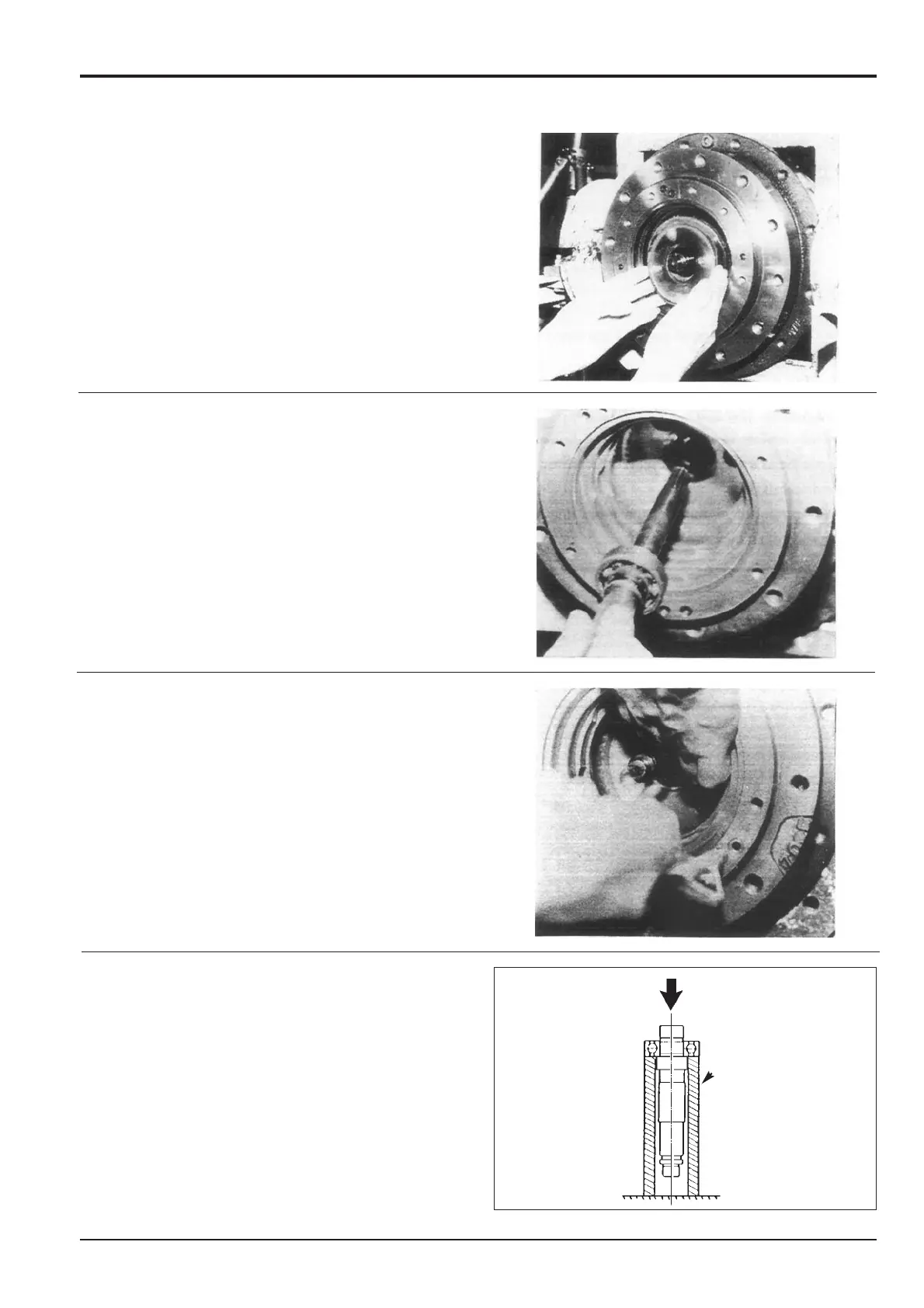

Dismantling (cont’d)
48 Remove swash plate 103.
49 Tap shaft 102 from the reduction gear side and remove
from spindle 2 complete with bearing 149.
50 Connect a hydraulic hand pump (see Service Tools,
Section 1) to the speed change port of the spindle and
use it to force out piston 161/piston shoe 162 assembly.
The whole assembly must be replaced in the event of
damage to either part.
51 Remove bearing 149 from shaft 102 only if it is to be
renewed. To remove it use special tool II (B) (see Special
Tools, Section 1) as shown. Press out the shaft from the
bearing.
Section F Transmission
9803/6020
Section F
8 - 13
Issue 1
Track Gearbox
BB
