Dismantling (cont’d)

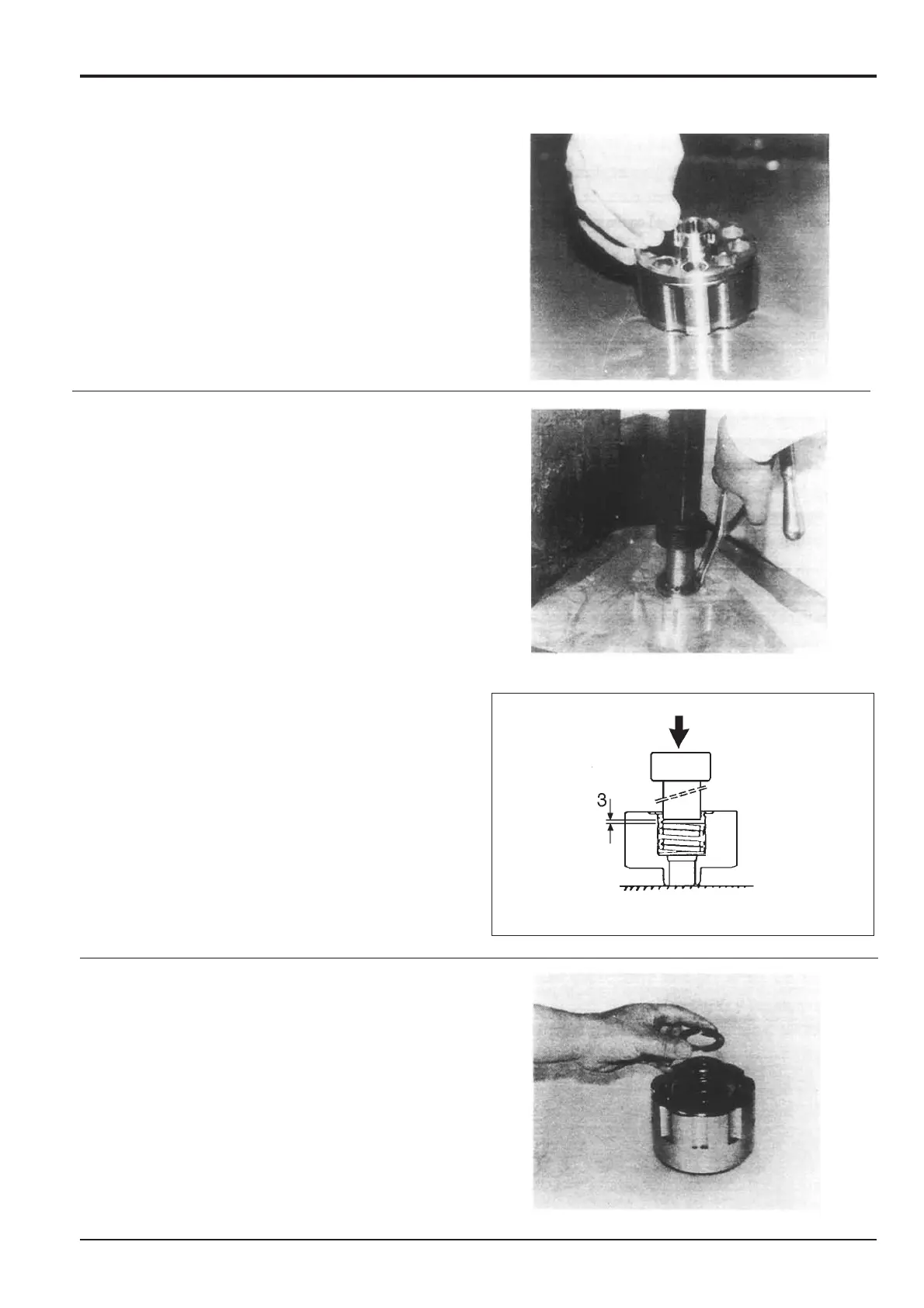

45 Remove the three parallel pins 151 from cylinder block
104.
Note: Only carry out steps 46 and 47 if you intend to replace
spring 114.
46 Working with the cylinder block on a press bench or,
alternatively, in a vice, use special tool I (A) (see Special
Tools, Section 1) to compress washer 110 and spring
114. Remove snap ring 145 from its groove.
47 Decompress the spring, taking care that the cylinder
block does not twist and get damaged. Remove the
cylinder block from the compression device and remove
snap ring 145, washer 110, spring 114 and second
washer 110.
Section F Transmission
9803/6020
Section F
8 - 12
Issue 1
Track Gearbox
