8 - 11
Dismantling (cont’d)

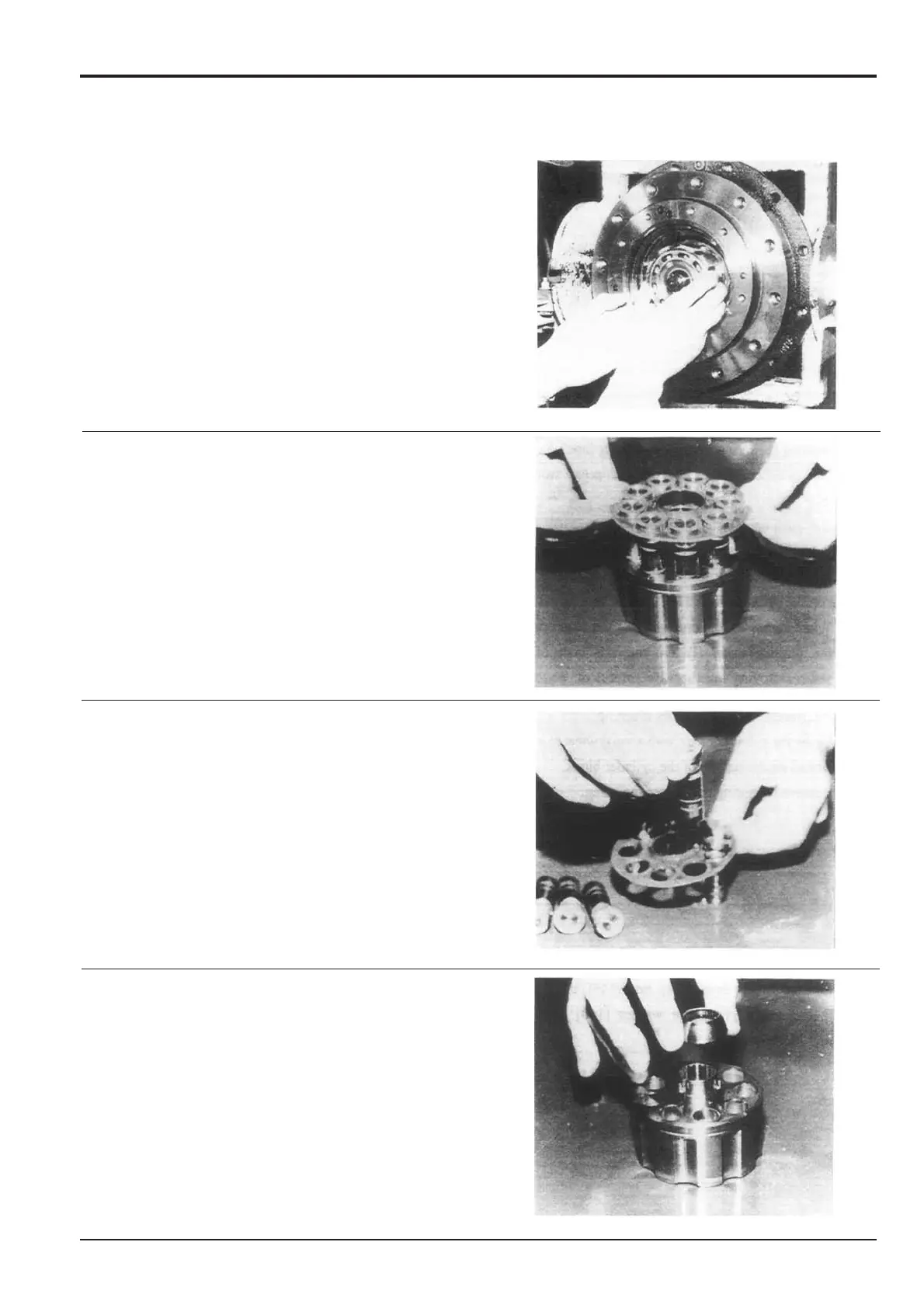

41 Turn the track motor on its side. By hand, turn the
cylinder block 104 back and forth a few times to release
the piston shoes 106 from swash plate 103. Remove the
cylinder block from spindle 102, complete with piston
105, piston shoes 106, brake plates 116 and friction
plates 115.
42 Remove the brake plates 116 and friction plates 115
from the cylinder block 104.
Use the retainer plate 107 to remove the nine
piston/piston shoe assemblies from the cylinder block,
noting which piston belongs to which cylinder block
bore.
43 Remove the piston/piston shoe assemblies from the
retainer plate.
44 Remove thrust ball 108 from the cylinder block.
Section F Transmission
9803/6020
Section F
8 - 11
Issue 1
Track Gearbox
