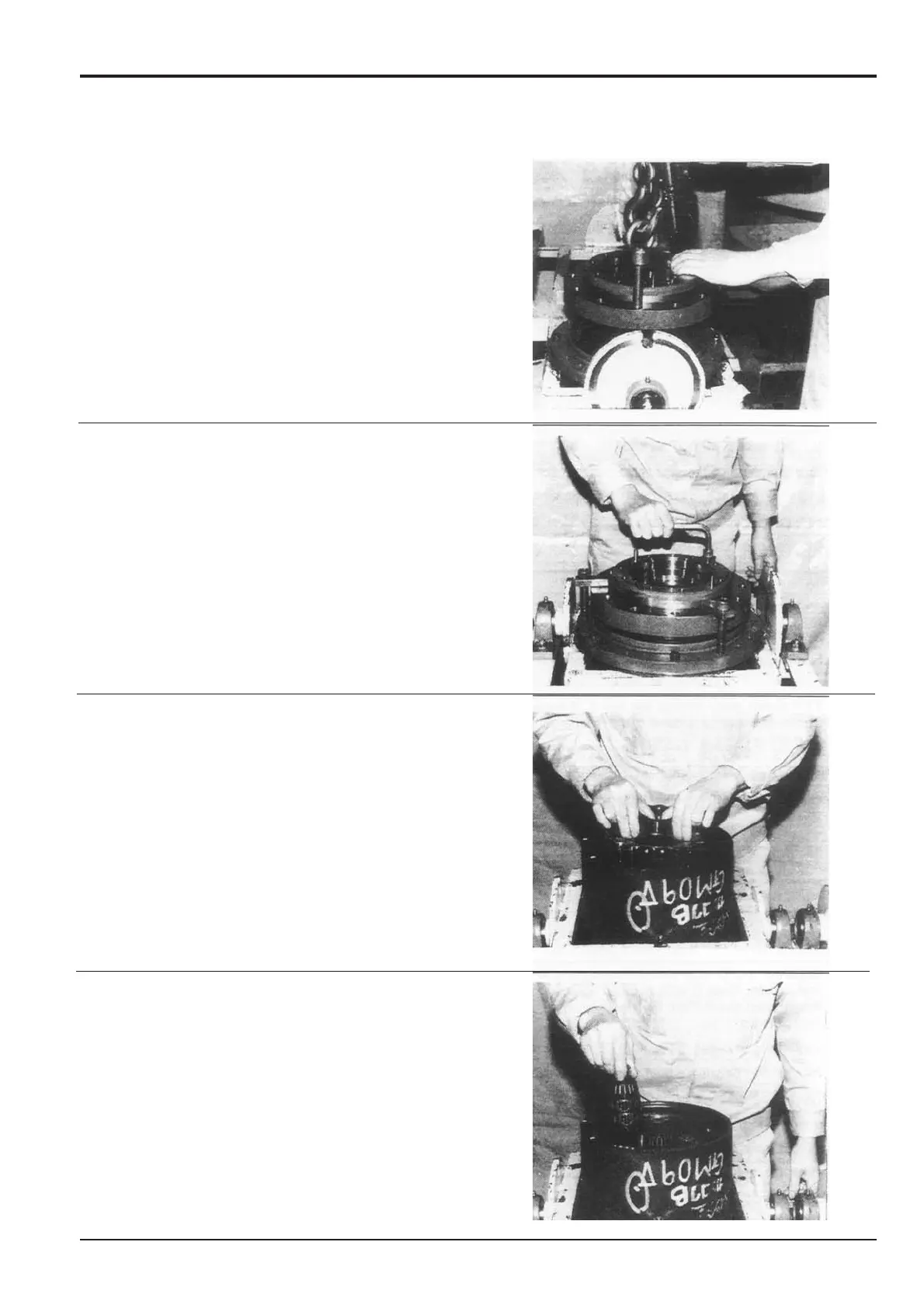

Assembly (cont’d)
8 Fit two eyebolts into diametrically opposite tapped holes
in spindle 2. Install the spindle into hub 1.
9 Use three hub/spindle securing jigs (see Service Tools,
Section 1), equally spaced, to clamp the hub 1 and
spindle 2 together.
10 Turn the hub/spindle assembly over.
Insert the three outer shells of bearings 22 into the
spindle recesses.
11 Install the crankshaft/reduction gear assembly onto the
hub, taking care to locate the roller bearings 22 with the
outer shells installed in step 10.
8 - 25
Section F Transmission
9803/6020
Section F
8 - 25
Issue 1
Track Gearbox
