8 - 35

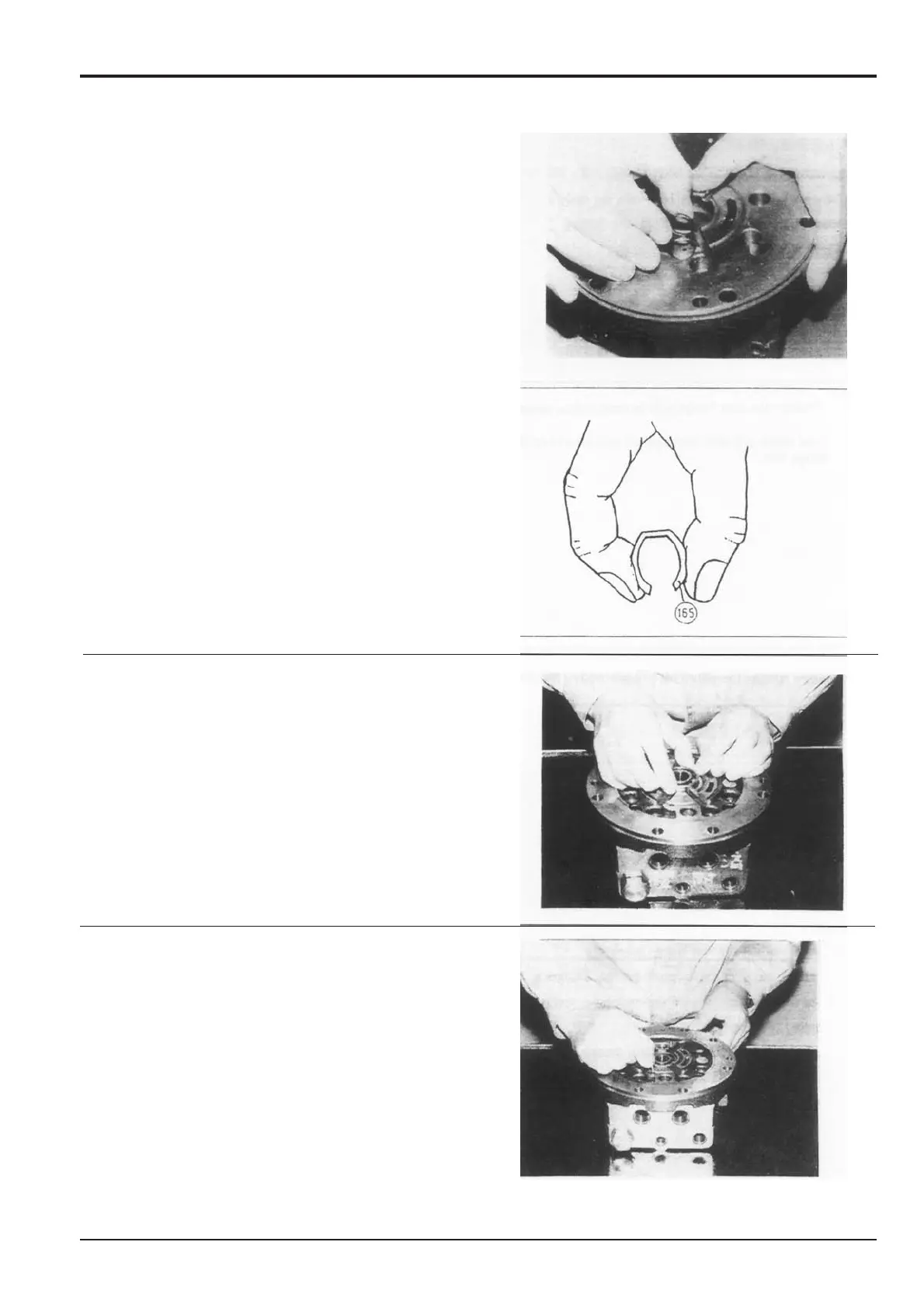

Assembly (cont’d)
46
Slightly compress the open ends of new ring
165
and
install in the groove in the r
ear flange. Correct fitting of
the ring is important, otherwise high/low speed
switching will not be possible.
47
Coat bearing
150
with hydraulic oil and insert into the
rear flange
101
.
48
Insert two parallel pins
141
into the holes in the rear
flange
101
.
Section F
T
ransmission
9803/6020
Section F
8 - 35
Issue 1
T
rack Gearbox
340
342
