8 - 36
Assembly (cont’d)

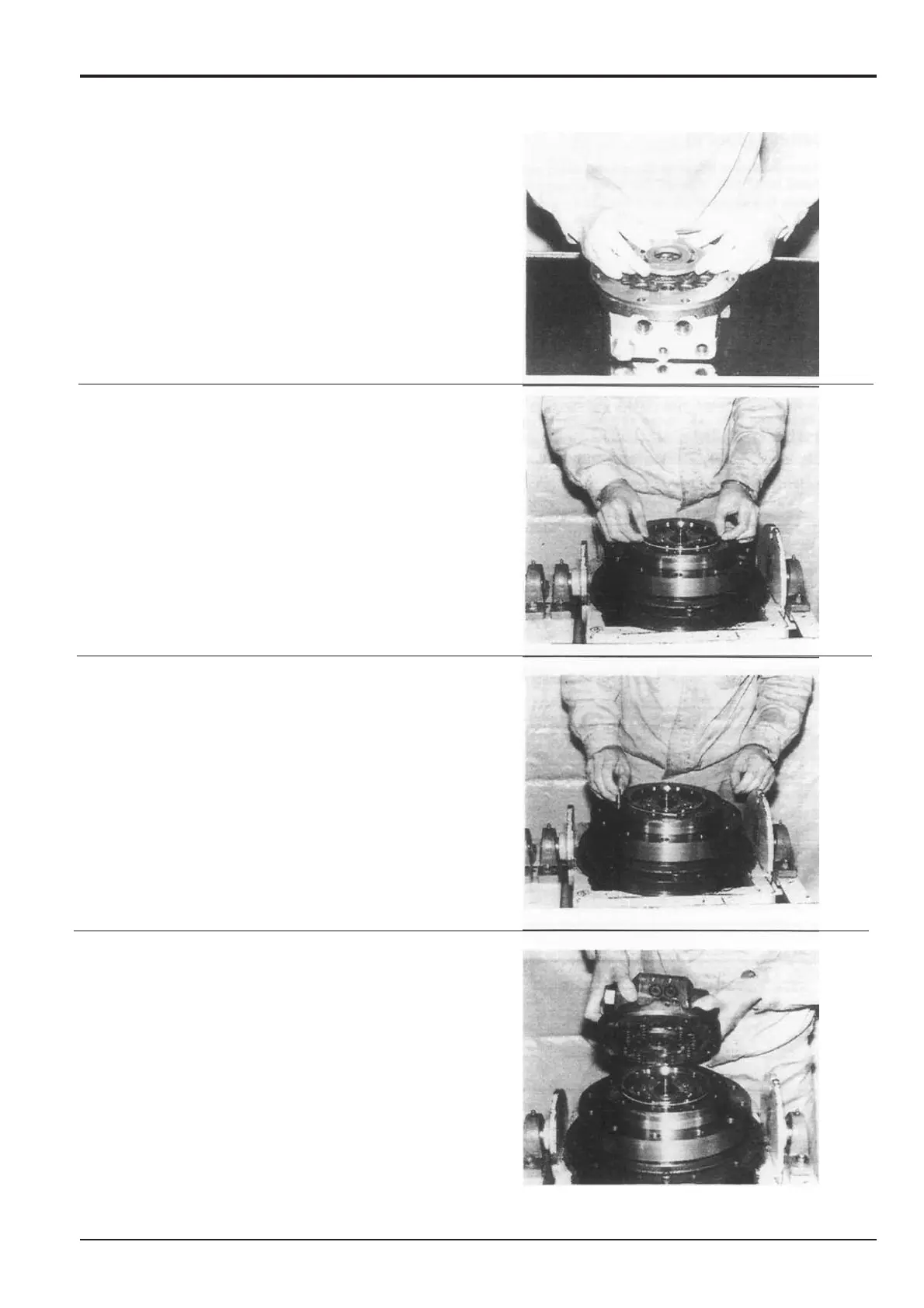

49 Coat one side of timing plate 109 and, using pins 141 as
a guide, fit the plate to the rear flange.
50 Position the track gearbox with its mating surface
upwards. Grease and install two new 'O' rings 27. Install
an ungreased new 'O' ring 30.
51 Fit two parallel pins 142 into spindle 2.
Pour 0.55 litres (0.12 gal) of hydraulic oil into the spindle
2.
52 Coat one end of the eight springs 113 with grease and
install the greased end on the back of rear flange 101.
Assemble the rear flange to the spindle 2, locating the
flange with the parallel pins 142 already installed in the
spindle.
Section F Transmission
9803/6020
Section F
8 - 36
Issue 1
Track Gearbox
