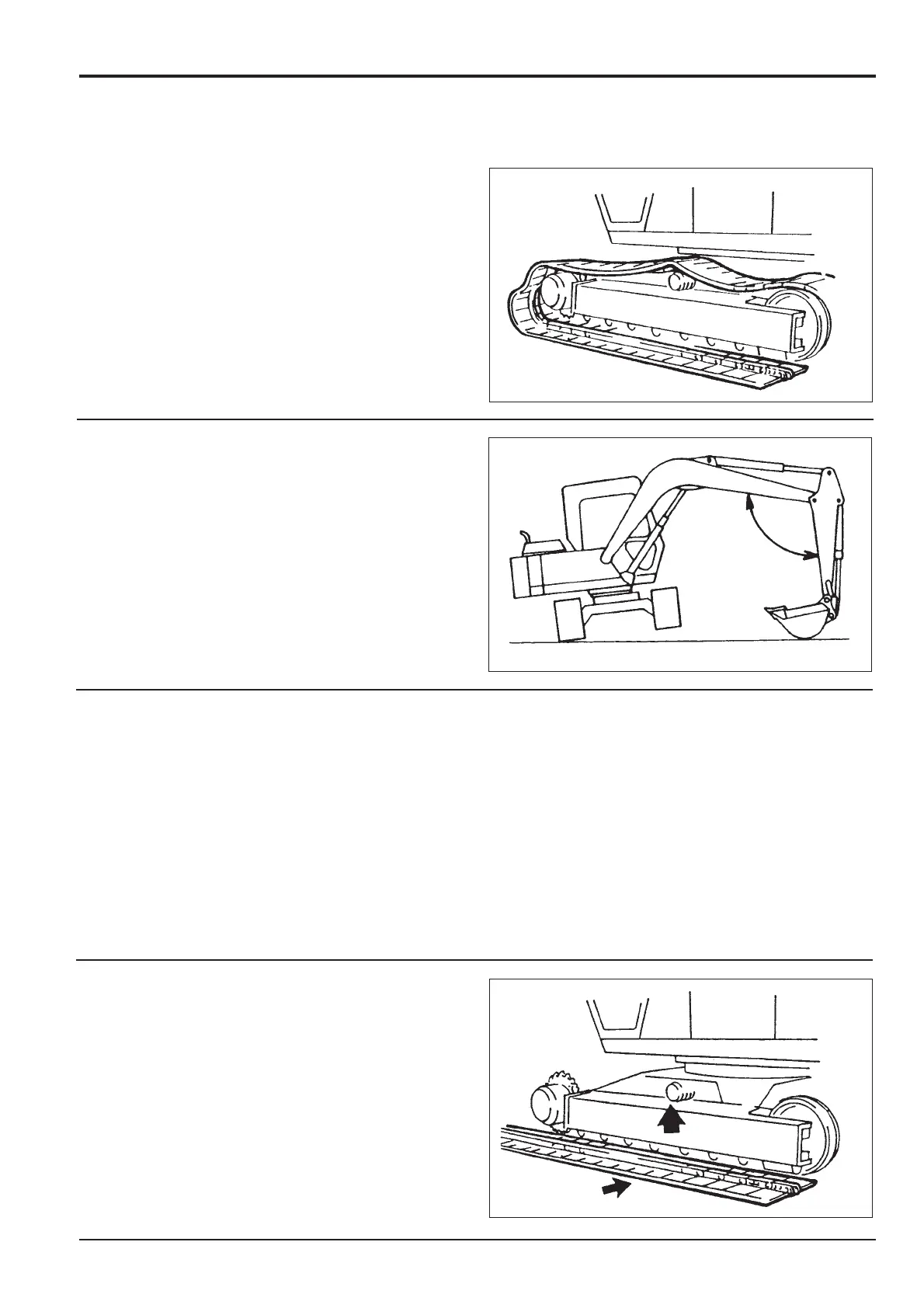

Removal (continued)
5 Drive the machine forward until the track is positioned
as shown.
6 Raise the side of the machine using the boom and
dipper.
Put wooden support blocks under the frame.
Remove the track.
Replacement
1 Raise the side of the machine using the boom and
dipper and put wooden support blocks under the frame.
Place the track on the ground beneath the lower rollers
with one end under the idler wheel.
Section J Track and Running Gear
9803/6020
Section J
2 - 2
Issue 1
Track
284070
284080
284100
