10 - 4
Assembly (cont’d)

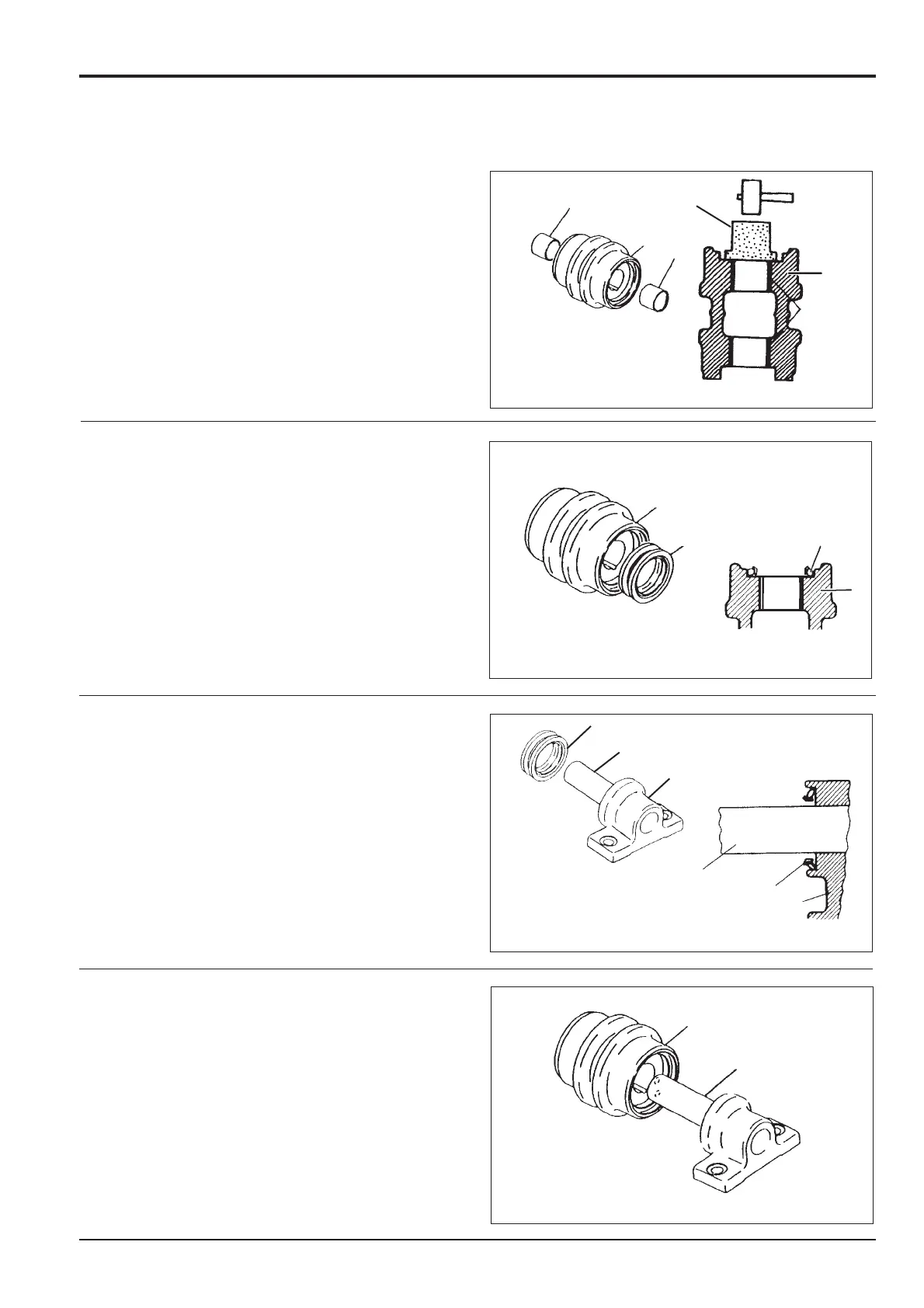

2 If the bushes are to be replaced, use a jig M, and
hammer, insert the bushes I and J into the roller A.
3 Install a new floating seal H into the roller A.
Coat the metallic face of the seal with engine oil.
4 Install a new seal H into the bracket K.
Coat the metallic face of the seal with engine oil.
5 Coat the shaft G with grease. Install the roller A onto
the shaft G.
Section J Track and Running Gear
9803/6020
Section J
10 - 4
Issue 1
Top Roller
A
A
H
H
H
G
K
K
G
H
A
G
286740
286710
286870
286700
I
M
A
J
A
I,J
To Next Page
