jcb JS70 Service Manual

1 - 1
Section B Body & Framework
9803/6020
Section B
1 - 1
Issue 1

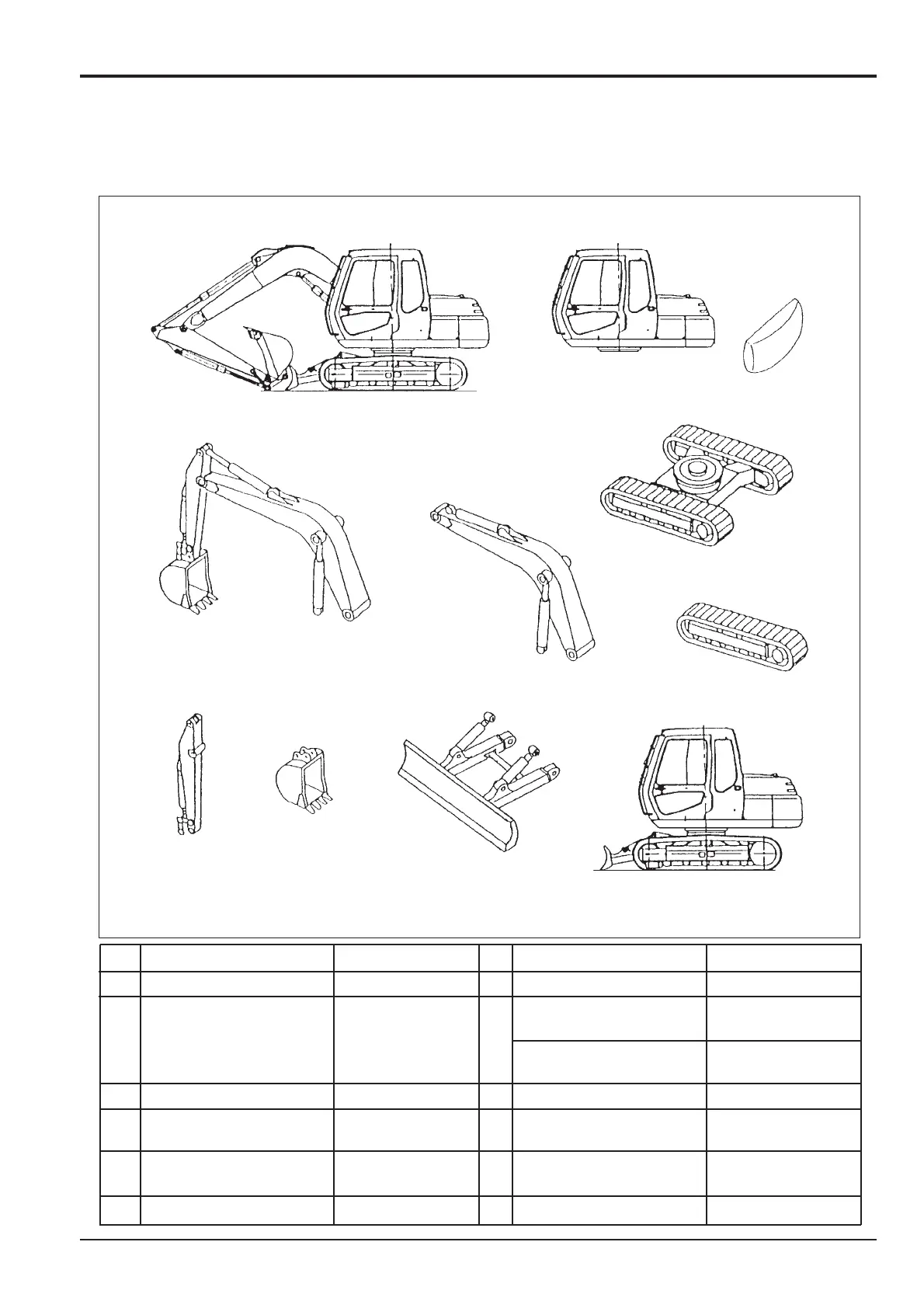

Weights
Weights
A
G
I
J
K
H
B
C
D
E
F
Description Weight kg (lb) Description Weight kg (lb)
A Overall mass 6700 (14773) G Attachment 1075 (2370)
B Upper mechanism 3115 (6868) H Boom 620 (1367)
Includes (including ram)
Counterweight and I Dipper 250 (551)
Slew ring (including ram and link)
C Counterweight 700 (1543) J Bucket 206 (454)
D Lower mechanism 2510 (5534) K Blade 305 (672)
(with grouser shoe) (including ram)
E Shoe (one side) 400 (882)
(450 mm grouser)
F Machine main body 5625 (12403)
