BLUEWAVE™DX DOWNLOAD
The JCM BlueWave™DX Tool (P/N 214780) offers an alternate method for
updating the Firmware on the GEN5 Printer. To do so, proceed as follows:
S ETUP FOR THE B LUE W AVE DX T OOL
1. Within the BlueWaveDX Tool’s SD Card root directory, create a new folder
labeled
"GEN5 System".
2. Place the Firmware files for the GEN5 Printer within the new
"GEN5 System"
folder.
U PDATING F IRMWARE U SING THE B LUE W AVE DX T OOL
1. Connect a standard USB Male "A" to Male "B" cable from the BlueWaveDX
Tool’s
USB Connector Type A (Figure 15 a) to the GEN5 Printer’s USB Update
Port
(refer to Figure 2 k on page 4).
2. Turn the BlueWaveDX Tool’s Power Switch
ON (Figure 15 b).
3. When the
Firmware Update screen appears, press the OK Button (Figure 15 c).
4. Press the
UP and DOWN arrow keys (Figure 15 d) to scroll through the list of
available GEN5 Firmware versions.
5. Press the
OK Button (Figure 15 c) to select the desired Firmware version.
6. Press the
OK Button again to start the download.
7. When the
Download Complete message is displayed, press the CLR Button
(Figure 15 e) to return to the Main Menu
OR
Press the
OK Button (Figure 15 c) to download Firmware to another Printer.
NOTE: Sub-folders are not recognized.
NOTE: The BlueWaveDX Tool Operator Guide (P/N 960-100942R) is available in the
Support section of the JCM Global website at www.jcmglobal.com.
a
b
c
d
e

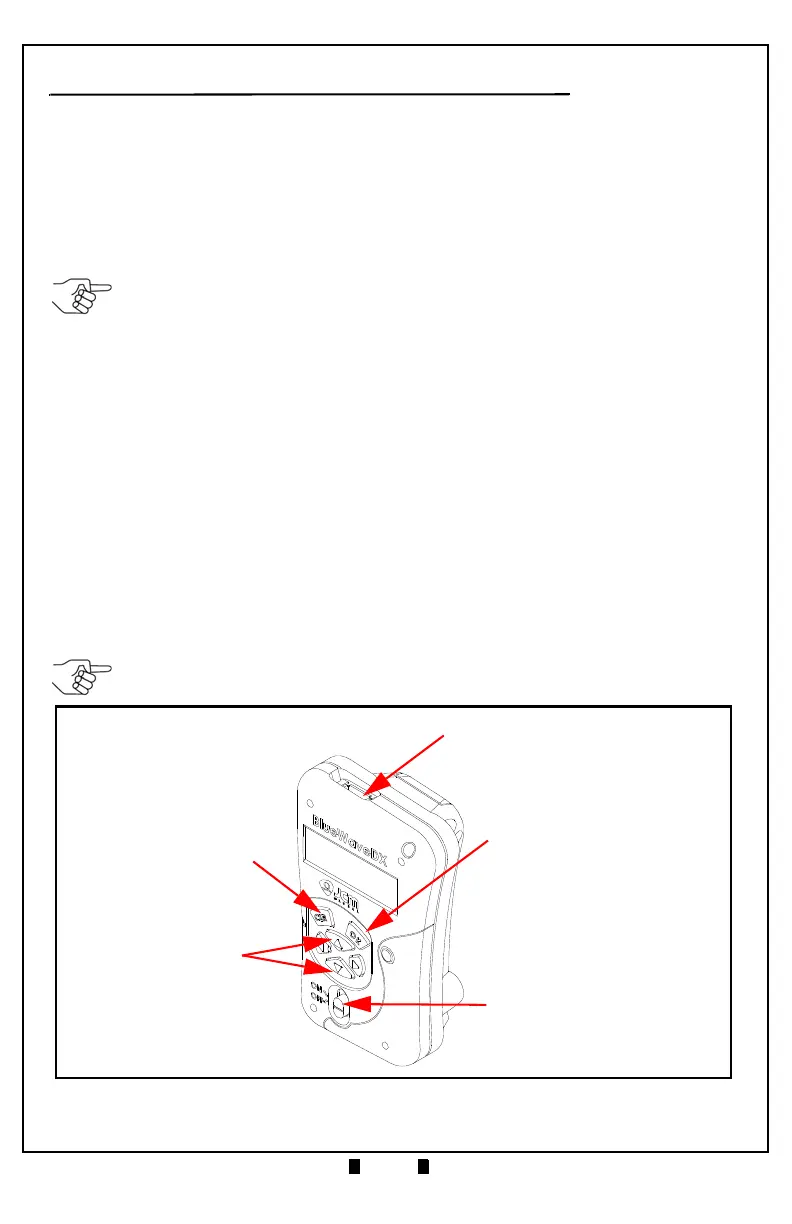

Figure 15 BlueWaveDX Tool (P/N 214780) Primary Controls
