17BOEING 787: FIBER INSPECTION AND CLEANING
FBP PROBE MICROSCOPE
JDSU FBP-series probes are portable video microscopes used to inspect ber optic connectivity. While most ber
microscopes are limited to inspecting male connectors, JDSU's FBP probe is designed to inspect both simplex and
multi-ber (ribbon) types of both male and female connectors, as well as optical devices such as transceivers. The
probe is specially designed to t and operate comfortably and easily in-hand, allowing the user to inspect hard-
to-reach connectors that are installed on the backside of patch panels or inside hardware devices. This eliminates
the need to disassemble hardware devices prior to inspection.

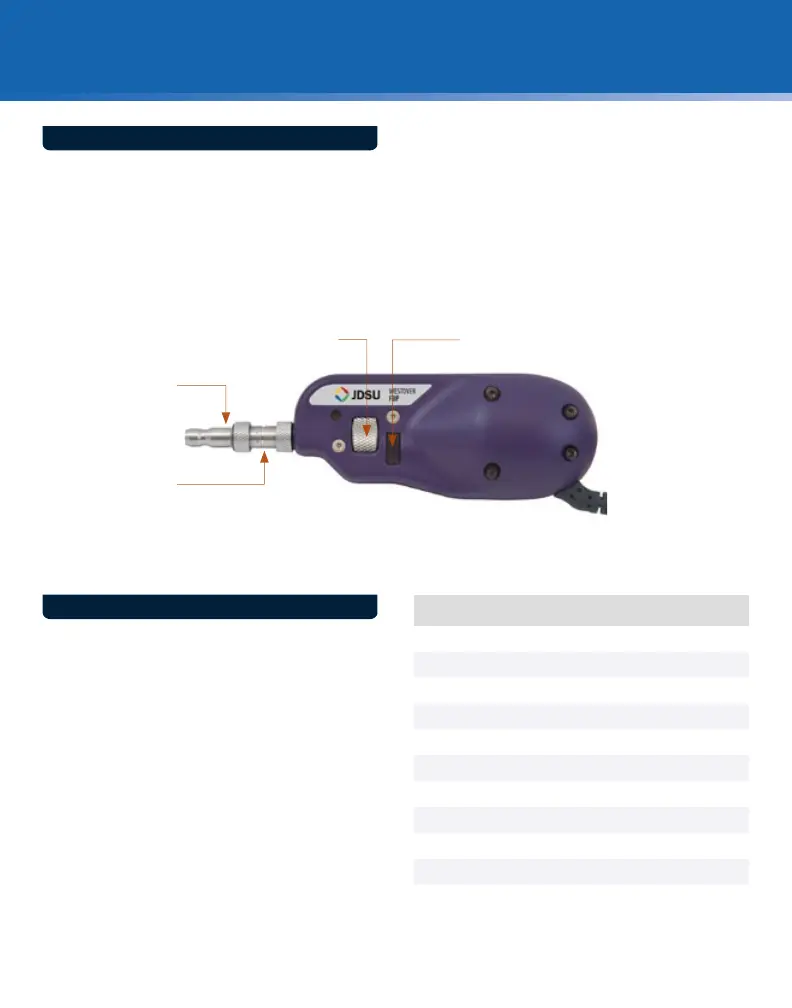

Focus Control Magnication Control
Inspection Tip
Barrel Assembly
FBP PROBE OVERVIEW
CONTROLS
Specications
Dimensions 140 x 46 x 43 mm (5.5 x 1.8 x 1.7 in)
Weight 180 g (6.3 oz)
Optical magnification 200X, 400X, 200/400X
Focus control Adjustable, in-probe
Cord length 240 cm (94-in)
Connector 4-pin Hirose™ male
Camera type 1/3-in CMOS Sensor
Video output NTSC or PAL
Light source Blue LED, 100,000+ hour life
Lighting technique Coaxial
Power source From the display device or USB module
The magnication control (available only on dual-
magnication probes) allows the user to switch
between LOW and HIGH magnications of the ber
end face image.
The focus control on the probe allows the user to
adjust focus manually of the live ber end face image
on the display.
