20 USER MANUAL
HD1 VIDEO DISPLAY
The JDSU HD1 Video Display is a durable,
lightweight, ergonomic, drop-tested display for use
with any NTSC FBP or FBP3 series probe. It features a
3.5-inch TFT active matrix LCD screen, which produces
a bright, clear and crisp, high-contrast image of the
ber end face. It can be powered by 100–240V AC or
a rechargeable Li-on battery (the Li-on battery must be
in the display for the unit to operate). The HD1 Display
features contrast adjustment, auto-shuto function
to preserve battery life, and a hanging accessory for
hands-free operation. The display uses a 4-pin Hirose™
connector, which routes power into the probe and
video out of the probe. A conversion cable is also
available for 6-pin QuickCapture™ analog probes.

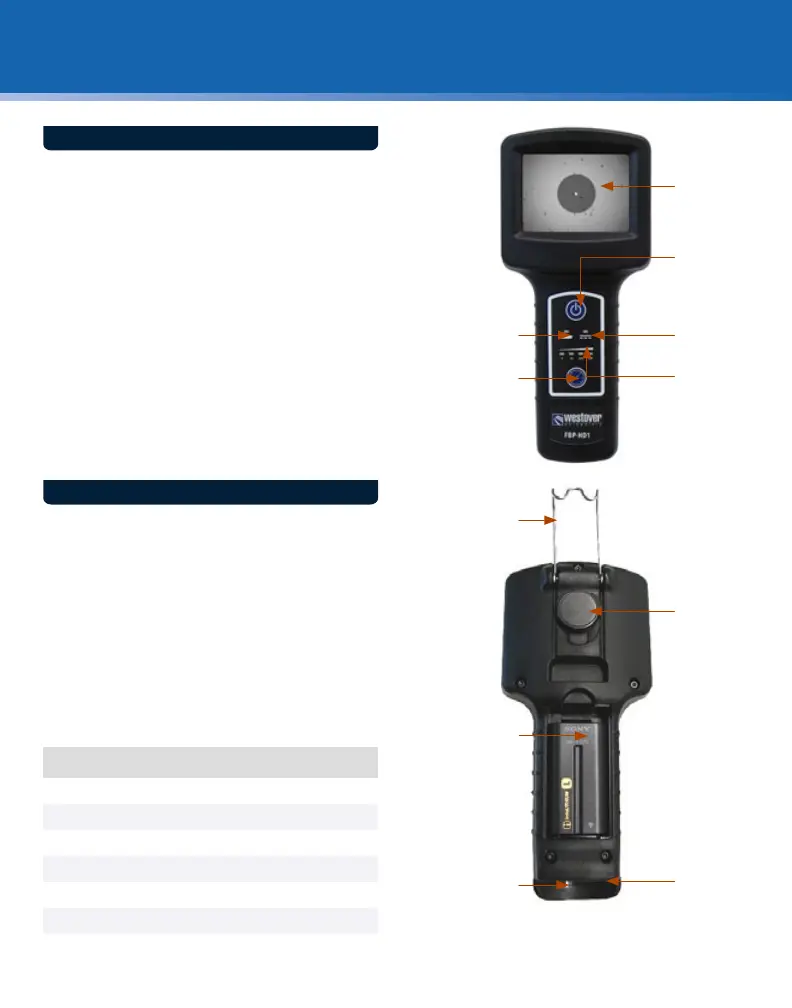

HD1 DISPLAY OVERVIEW
FEATURES
• 3.5-inch TFT LCD display
• Contrast control/adjustment
• Rechargeable Sony® Li-ion battery with 2 hours
continuous run time (extended when using
auto-shuto feature)
• Battery gauge (LED) showing remaining
battery life
• Built-in hanging accessory for hands-free
operation
3.5-inch TFT
LCD Screen
AC Power
LED
Battery Power
LED
ON/OFF
Control
Battery
Status and
Auto
Shut-down
Interval
LED's
Auto Shut-down
Interval and
Contrast Control
Hanging
Accessory
Removable
Magnet
(Optional)
AC Power
Input
Rechargeable
Li-on Battery
4-pin connector
to Probe
Specications
Dimensions 45.7 x 43.2 x 140 mm
Weight 400 g
Video display 3.5-inch TFT LCD
Connectors 4-pin for FBP probe microscopes
Battery life 2-hours continuous use
Charging time 2-hours
