JDS Uniphase FBP Series User Manual

19BOEING 787: FIBER INSPECTION AND CLEANING
Standard Patch Cord Tips
Standard Bulkhead Tips
FBPP-BAP1
FBPP-BAP3
FBPP-BAP3-A6
FBPT-C130
Barrel Assembly
FBPT Inspection Tips
Alignment Guides
TIPS/GUIDE INSTALLATION GUIDE
FBP Probe Microscope

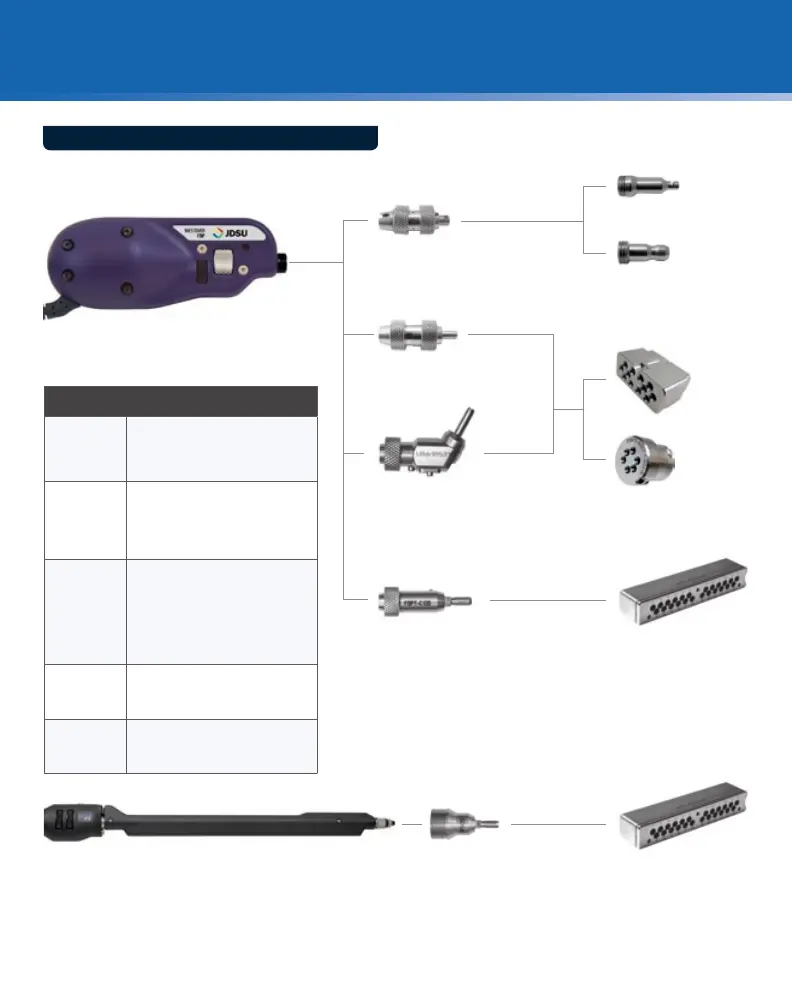

TIPS, GUIDES, AND BARREL ASSEMBLIES MAP
Typical Use: Inspecting the
Tray side of the AGU.
Typical Use: Inspecting the
Receptacle in the back tray
of a CCR Cabinet.
FBP3-C130
Alignment Guides
FBP3 Long Reach Probe Microscope
Typical Use: Inspecting
the Receptacle in the back
tray of a CCR Cabinet.
Description
FBPP-BAP1
Attach this barrel assembly directly
onto the P5 probe and use with
the various inspection tips for
inspecting ber connectors.
FBPP-BAP3
Attach this barrel assembly directly
onto the P5 probe and use with
the various alignment guides
for inspecting avionics ber
connectors.
FBPP-BAP3-A6
Attach this angled narrow barrel
assembly directly onto the P5
probe and use with the various
alignment guides for inspecting
avionics ber connectors. The 60
degree angle allows access into
tight areas, such as the AGU tray.
FBPT-C130
Attach this tip directly onto the P5
probe and use with select align-
ment guides.
FBP3-C130
Attach this tip on the end o the
Long Reach Video Probe (P3), for
use with select alignment guides.

JDS Uniphase FBP Series Specifications
