SPX532 – QUICKSTART GUIDE
10.2. CONDITIONS TO ENABLE OUTRIGGERS UP & DOWN
The following conditions must be respected to enable the outriggers up & down functions:
• Crane must be in parking position (0° or 180° ±3°);
• Main boom telescopic FULLY RETRACTED;
• Main boom angle ≤ 45°;
• NO LOAD on tip of the boom;
• If hydraulic jib is installed, it must be fully retracted.

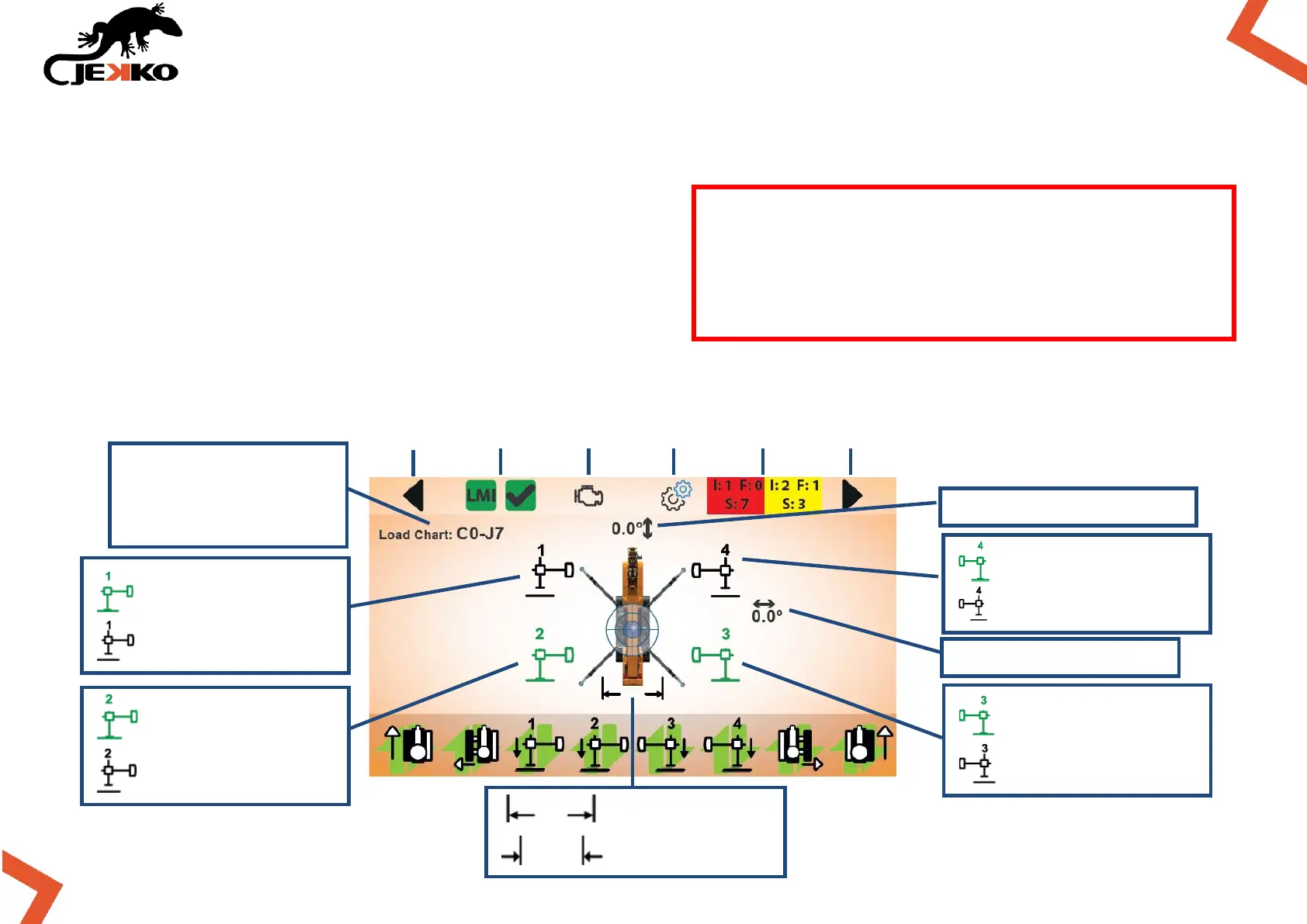

10.3. OUTRIGGERS UP & DOWN SCREEN APPEREANCE
If these conditions are not respected, the
icons of the levers won’t appear on bottom
of the screen and it won’t be possible to
LOAD CHART
C = CONFIGURATION
ON THE GROUND
TRACKS EXTENDED
ON THE GROUND
ON THE GROUND
ON THE GROUND
To Next Page
