24
SPX532 – QUICKSTART GUIDE
11.2. CONDITIONS TO ENABLE CRANE
The following conditions must be respected to enable the crane functions:
• All 4 outriggers on the ground;
• All 4 outriggers opening angles (swing) must be
acceptable values (locking pin correctly inserted).

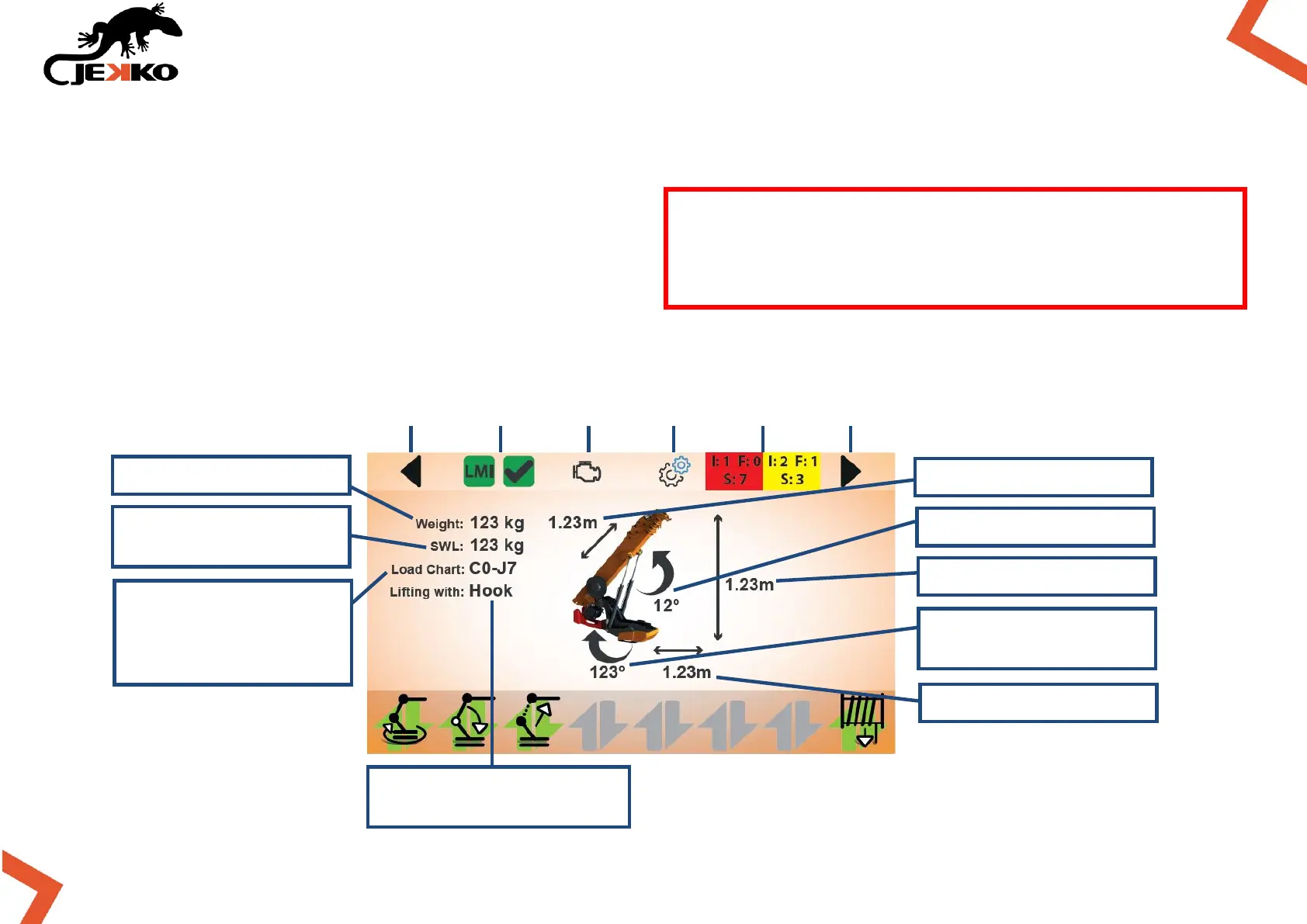

11.3. CRANE SCREEN APPEREANCE
If these conditions are not respected, the icons
of the levers won’t appear on the display and it
won’t be possible to operate the functions
LMI config
page
Engine
page
Settings
page
Warning &
alarms page
Next
page
MAIN BOOM LENGTH
MAIN BOOM ANGLE
MAIN BOOM HEIGTH
CRANE TURRET ROTATION
ANGLE
RADIUS
ACTUAL LOAD LIFTED
MAX LOAD LIFTABLE IN
THE ACTUAL POSITION
ACTUAL CONFIG. AND
LOAD CHART
C = CONFIGURATION
J = LOAD CHART
CONFIGURATION
(HOOK, ROPE LINES NUMBER)
Previous
page
