Wiring

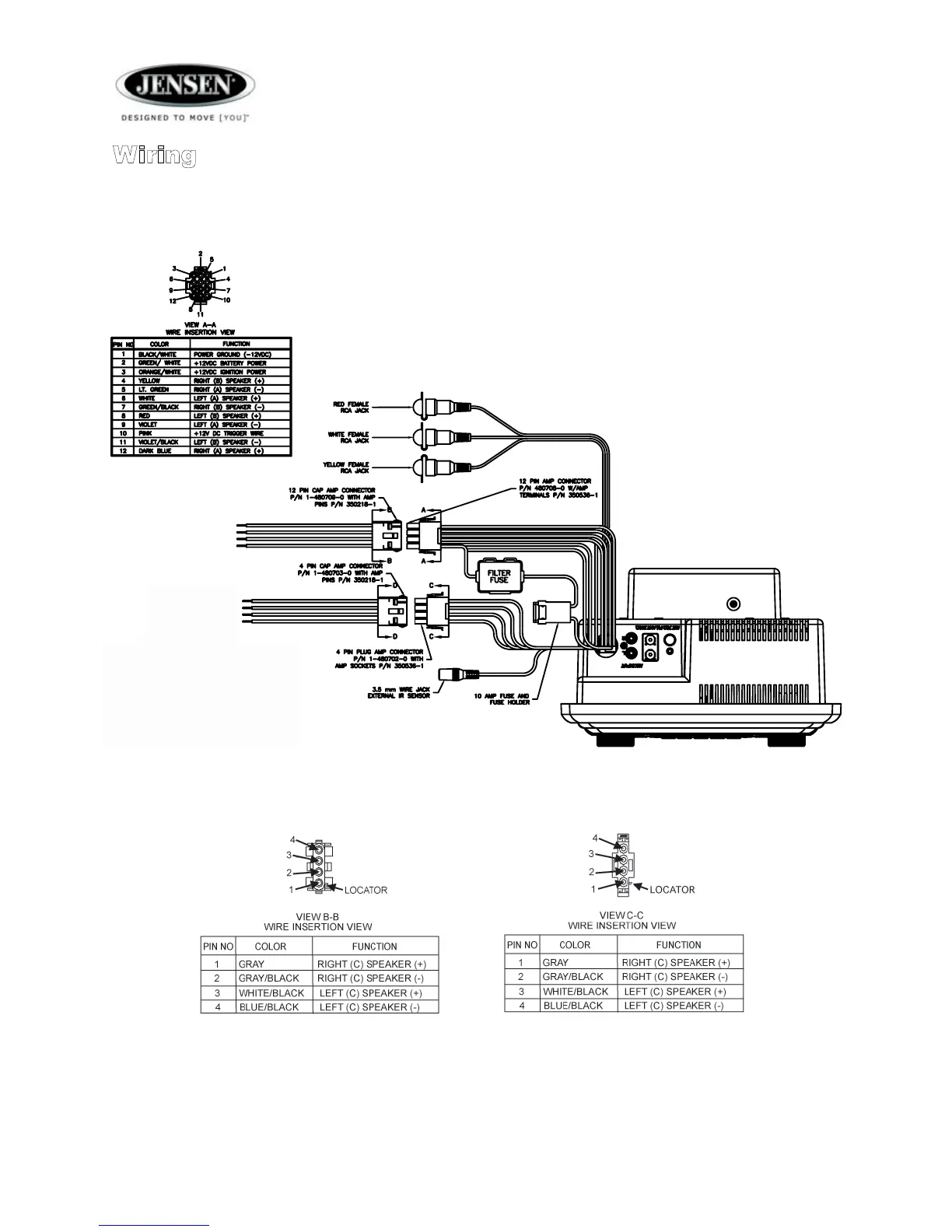

The wiring diagram depicts all the wiring connections required for proper operation of the unit.

Jensen AWM960 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	11-16VDC
total system power	75 Watts Maximum

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<2.5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<15uV

Amplifier

output power	75 Watts Total (25 Watts per Channel)
output wiring	2/6 Speaker and Headphone System
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

DVD

frequency response	20-20, 000 Hz
channel separation	50dB
s/n ratio	70dB

Weight and Dimensions

overall dimensions	265mm(W)x178mm(H)x159mm(D)
mounting dimensions	235mm(W)x154mm(H)x133mm(D)
weight	3.75 lbs.(1.7 Kg)
