Jensen AWM960 User Manual

6

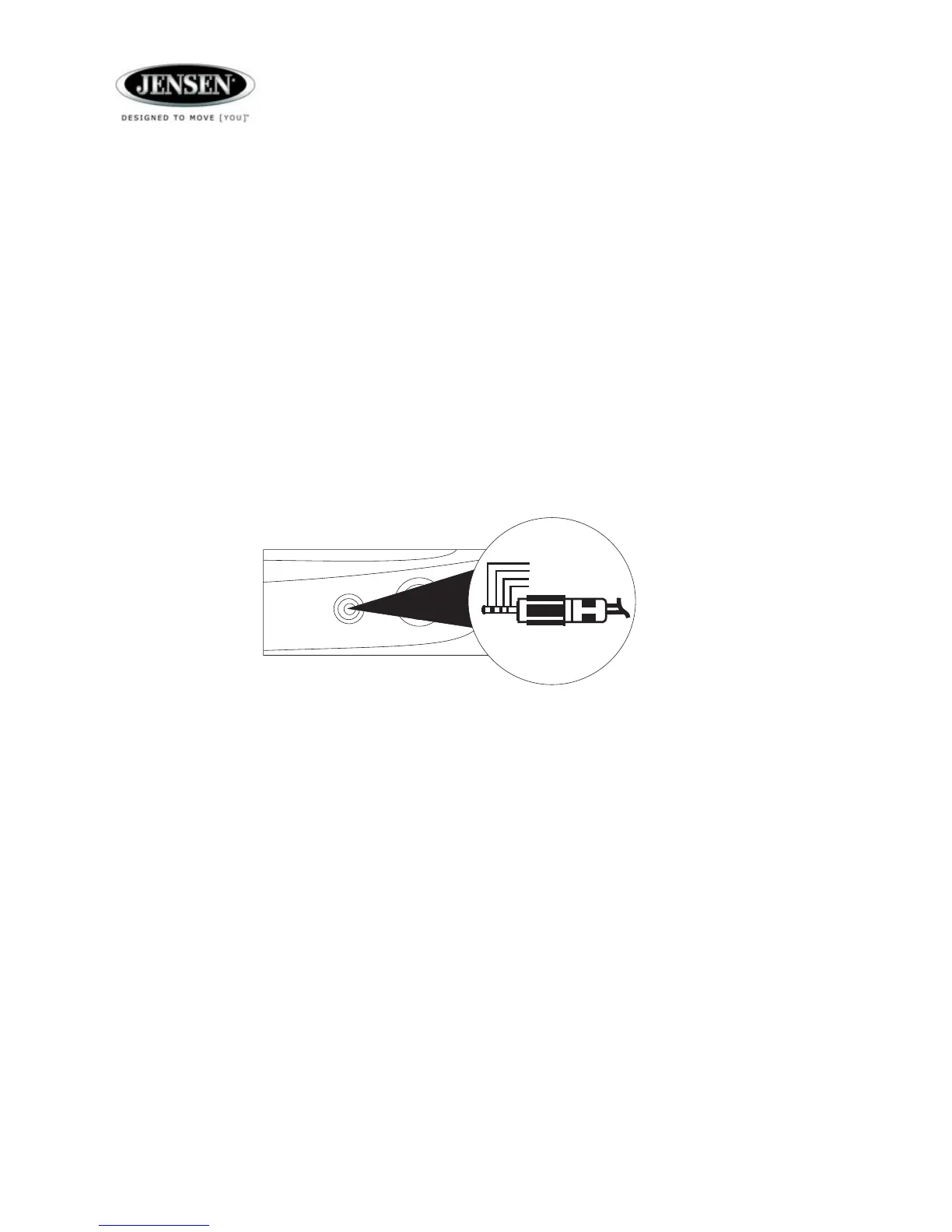

AUX A/V IN
3.5 mm A/V Cable (not included)
Left Audio
Right Audio
Ground
Video
4. Audio Adjustment
Press AUDIO (4) momentarily to step through the following audio adjustment options: Volume, Bass,
Treble, Balance (left to right) and Fader (front to back). When the desired option appears in the display,
rotate the volume control knob (1) to adjust that audio feature. When no adjustments have been made
for three seconds, the unit will resume normal operation.
5. Auxiliary Input Function
Press AUX (5) to directly access auxiliary input mode from any other function mode when portable
audio device is connected to the unit. To connect a portable audio device, insert a standard 3.5 mm
(audio line output or headphone output from your portable CD / MP3 / iPod or other media player) into
an “AUX IN” jack on the front or rear of the unit.
Note: For front panel A/V input, an external audio/video (A/V) source such as a video game
player, camera, etc. can be connected to the front panel A/V input with a separately purchased
3.5mm A/V cable adapter. Connect the device to the A/ input on the front panel, and press AUX
to engage the input circuit. Please note that there are several A/V cable "standards" which
differ from each other. The AWM960 is designed to support the Apple Video iPod
J cable type,
as shown in the inset drawing.
6. Time/Frequency Display
Press T/F (6) momentarily to display the time while in Tuner, CD, DVD or auxiliary input mode.
7. Setting the Clock
Press T/F (6) to display the clock. Press and hold T/F, and the number representing the hours will
flash. Rotate the TUN/TRK knob (7) to adjust the hour. Press T/F again briefly, and the number
representing the minutes will flash. Rotate the TUN/TRK knob to adjust the minutes. The new time will
be saved five seconds after the last adjustment is made.
8. Setting the Alarm
To set the alarm to a specific time, press ALARM SET (8a), and the alarm time will appear in the
display with the number representing the hours flashing. Rotate the TUN/TRK knob (7) to adjust the
hour. Press ALARM SET again, and the number representing the minutes will flash. Rotate the TUN/
TRK knob to adjust the minutes. Once a time is set, press ALARM ON/OFF (8b) to turn the alarm
function on or off.
9. Speaker Output
The three speaker output buttons (9) (SPEAKER A, SPEAKER B and SPEAKER C) control speaker
output from the radio. Press any of the three buttons to turn the corresponding speaker on or off. The
red light above each button will illuminate when that speaker is turned on.

Jensen AWM960 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	11-16VDC
total system power	75 Watts Maximum

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<2.5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<15uV

Amplifier

output power	75 Watts Total (25 Watts per Channel)
output wiring	2/6 Speaker and Headphone System
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

DVD

frequency response	20-20, 000 Hz
channel separation	50dB
s/n ratio	70dB

Weight and Dimensions

overall dimensions	265mm(W)x178mm(H)x159mm(D)
mounting dimensions	235mm(W)x154mm(H)x133mm(D)
weight	3.75 lbs.(1.7 Kg)
