Jensen AWM960 User Manual

AWM960
9
JENSEN
MP
3
CD-RW
AUX A/V IN
DVD/CD/MP3 PLAYER
SPEAKER
A
SPEAKER
B
SPEAKER
C
MENU
LANG
STOP
RDMINT
RPT
ENTER
1
2
3
4
5
6
ALARM
SET
ALARM
ON/OFF
AUD
AM/FM
DVD
AUX
T/F
MUTE
AS/PS
LOUD
PUSH ON/OFF
VOL
TUN/TRK
DN
UP
AWM960
14a15
14b
17
18
19
16
20
2122
23

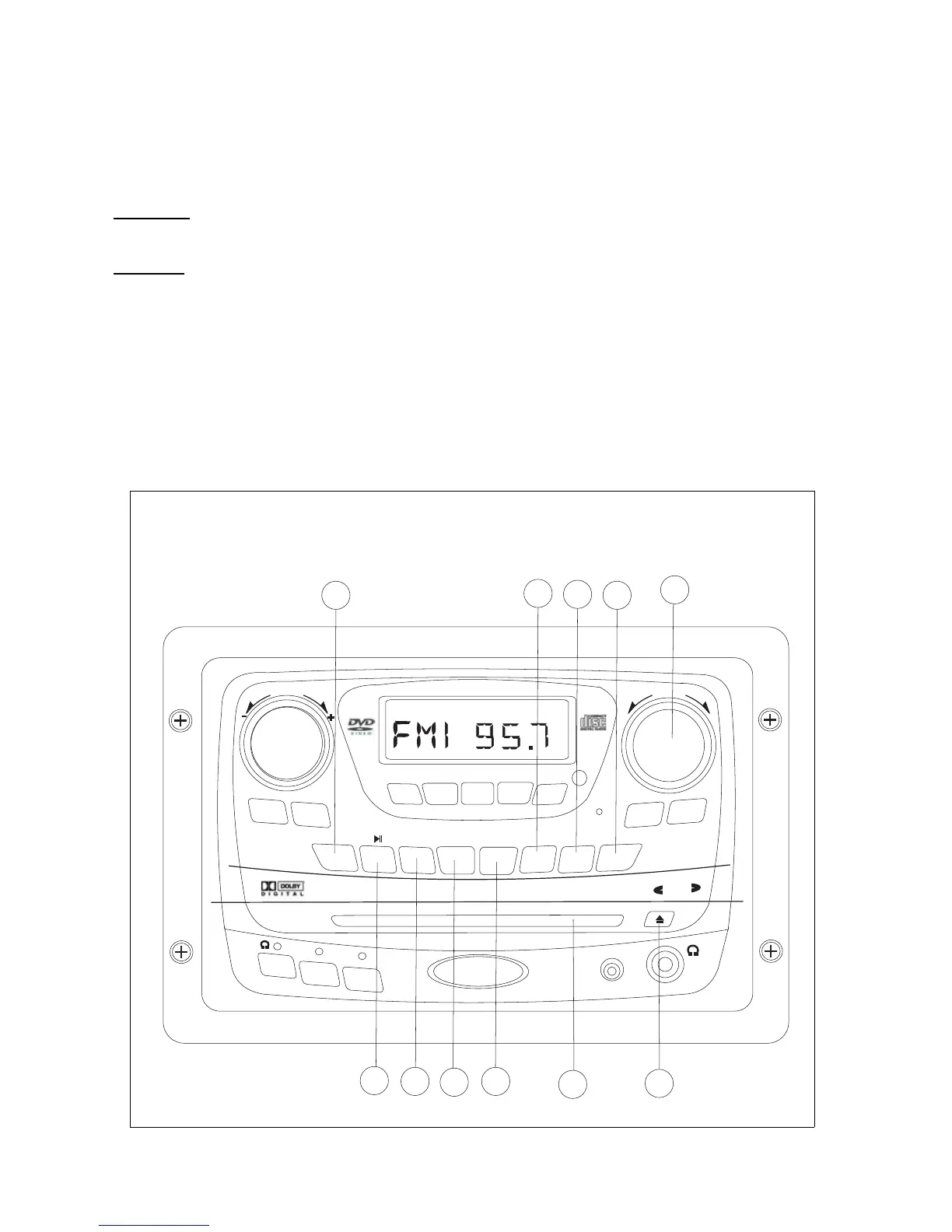

CD Operation
14. Insert and Eject CD
Insert CD
Insert a CD label-side up into the CD slot (14a), and the disc will begin to play.
Eject CD
Press the eject button (14b) to stop CD play and eject the CD.
15. Pause
Press the play/pause button (15) to suspend and resume disc play.
16. Track Select
Briefly rotate the TUN/TRK knob (16) o advance to the next or previous track on the CD. The selected track
number will appear on the display. Rotate the TUN/TRK knob for more than three seconds to fast forward
or fast reverse through the disc. CD play starts when the play/pause button is pressed.
CD & DVD Operation

Jensen AWM960 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
operating voltage	11-16VDC
total system power	75 Watts Maximum

FM Tuner

tuning range	87.5-107.9FM
sensitivity	<2.5uV
stereo separation at 1 kHz	>30dB

AM Tuner

tuning range	530-1710
sensitivity	<15uV

Amplifier

output power	75 Watts Total (25 Watts per Channel)
output wiring	2/6 Speaker and Headphone System
output impedance	Compatible with 4-8 Ohm Speakers, 4 Ohm Load Minimum

DVD

frequency response	20-20, 000 Hz
channel separation	50dB
s/n ratio	70dB

Weight and Dimensions

overall dimensions	265mm(W)x178mm(H)x159mm(D)
mounting dimensions	235mm(W)x154mm(H)x133mm(D)
weight	3.75 lbs.(1.7 Kg)
