Jensen JHD905 User Manual

JHD905
3
M4 Machine
Screws (4)
Self-Tapping
Screws (3)
Machine Screws
with Nuts (3)
JENSEN
HEAVY DUTY
JENSEN
MUTE
DISP
AM/FM
AUX
WB
TIMER
AM/FM/WB RECEIVER JHD905
AUDIO
MENU
VOL+
VOL-
TUN TUN
+
1
234
5
6
SEEK
SEEK
+
A
U
X
I
N
JHD905 Radio
Wiring Harness
Radio
Mounting Bracket
Auxiliary Input
Patch Cord
Owner’s Manual
Washers
JENSEN
HEAVY DUTY
JENSEN
MUTE
DISP
AM/FM
AUX
WB
TIMER
AM/FM/WB RECEIVER JHD905
AUDIO
MENU
VOL+
VOL-
TUN TUN
+
1
234
5
6
SEEK
SEEK
+
A
U
X
I
N
FM
JHD905
Owner’s Manual
JHD905
2
Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s
manual clear and easy to follow.If you take a few minutes to look through it, you’ll learn how to use all
the features of your new Jensen receiver for maximum enjoyment.
SystemFeatures.......................................................... 2
Installation............................................................... 4
Wiring................................................................... 6
BasicOperation........................................................... 7
Tuner Operation ..................... ..................................... 9
Weather Band Operation . . . .......................................... ......10
Troubleshooting..................... .....................................11
Specifications............................................................12
Features
Features of the Jensen JHD905 mobile audio system include:
• Waterproof
• uV and Corrosion Resistant
• Electronic US/Euro AM/FM Tuner
• 30 Programmable Presets (12 AM, 18 FM)
• Non-Volatile Memory for User Settings and Preset Memories
• 7-Channel NOAA Weather Band
• Weather Alert
• Auxiliary Audio Input
• 2-Channel Amplified Audio Output
• Backlit Controls with Selectable Illumination Color
• Daylight Readable Display
• Clock with 30-day Backup Power
•WorkTimer
• Audible Beep Confirmation Tone

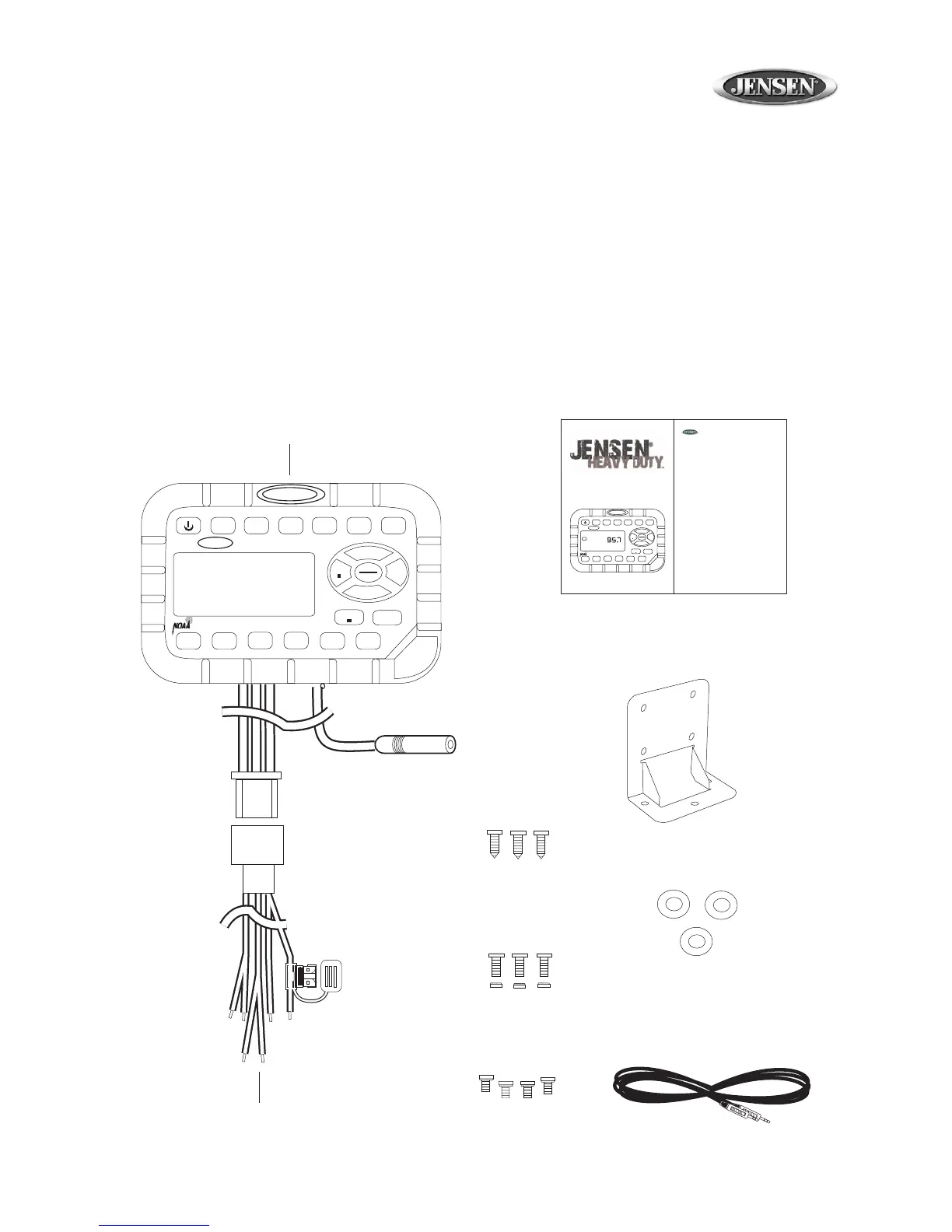

Package Contents
• JHD905 Radio
• Radio Mounting Bracket
• Three (3) 10-16 x 3/4” Stainless Steel PPH Screws
• Three (3) 10-32 x 5/8” Stainless Steel PPH Screws
• Three (3) 10-32 Stainless Steel Hex Nuts
• Three (3) #10 Stainless Steel Washers
• Four (4) M4 x .7 x 8MM Stainless Steel Hex Screws with Captivated Washers
• Wiring Harness
• Auxiliary Input Patch Cord
• Owner’s Manual

Jensen JHD905 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
current drain	1.5 Ampere (max)

Audio

loading impedance	4 -8 ohms per channel
tone controls bass	±10 dB at 100 Hz
tone controls treble	±10 dB at 10 kHz

FM Tuner

tuning range	87.5-108.0
fm mono sensitivity	1.5uV
stereo separation @ 1 kHz	>25dB

AM Tuner

tuning range	522-1710
sensitivity	<30uV

Weather Band

sensitivity	<1uV

Amplifier

total system power	15 Watts Maximum
signal to noise	>70dB

Weight and Dimensions

chassis dimensions	131.6 (W) x 47.5 (D) x 86 (H)
