Jensen JHD905 User Manual

JHD905
4
Regular
Mounting
Overhead
Mounting
Machine Screws
with Nuts
Self-Tapping
Screws
(Hole size 7/32")
(Hole size 7/32")
Mounting machine screw
Bracket metal
Vehicle mounting surface
Washer
Nut
Mounting Stack

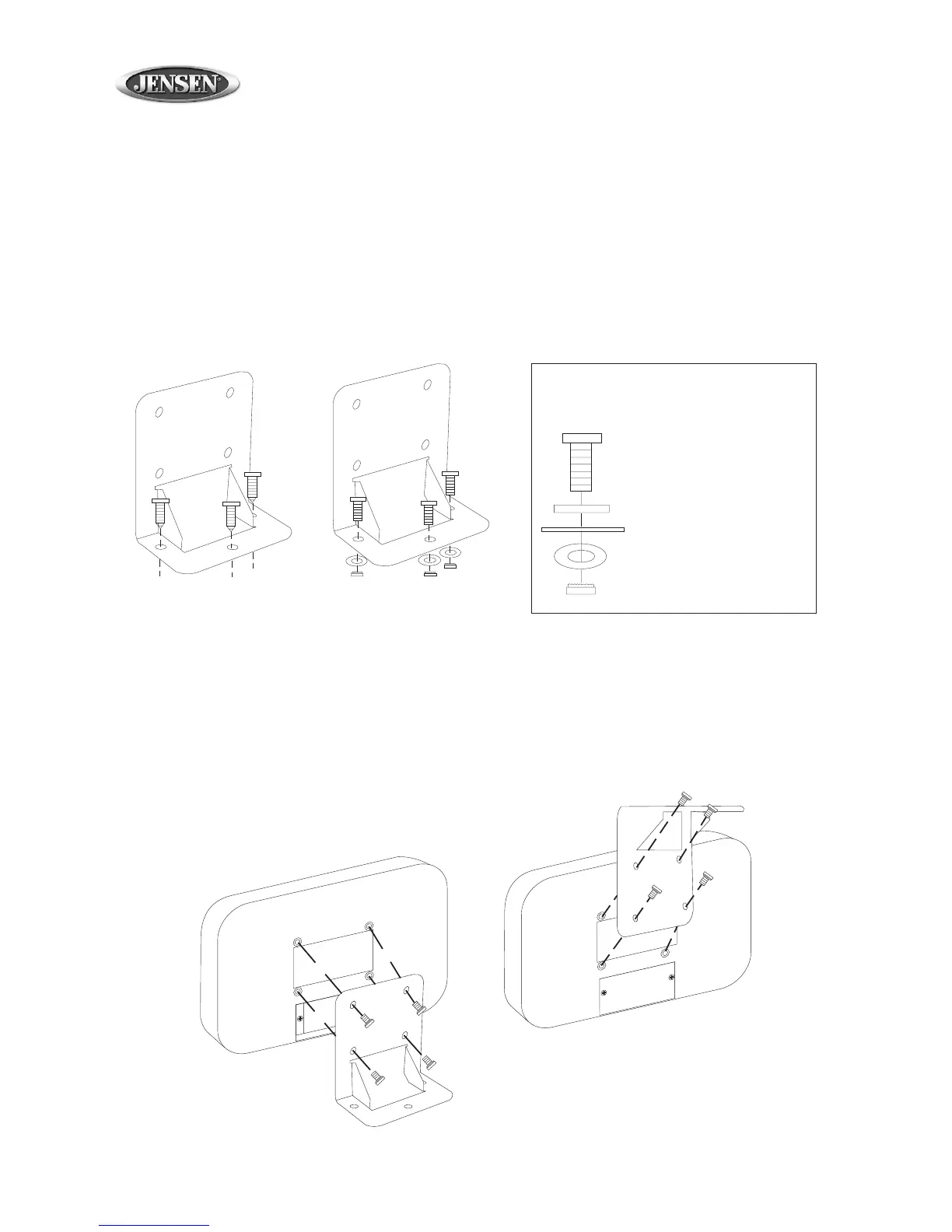

Installation
Mounting the Bracket
Two options are provided for mounting the bracket (self-tapping screws or machine screws with nuts)
to ensure a mounting option ideal for your mounting location. Avoid obstructing airflow to the rear
cooling fins on the radio.
NOTE: Mounting holes should be drilled to 7/32”. Before drilling the mounting holes, make sure
the area behind the panel where the holes are desired is clear of wires and fuel, vacuum and or
brake lines.
Attaching the Radio
Once the bracket is securely mounted, use the four included M4 machine screws to fasten the bracket
to the back of the radio. Alternately, the radio can be mounted directly to the instrument panel if access
to the rear of the instrument panel is available.
CAUTION! Do not over tighten the 4 mounting screws. Hand tighten only.

Jensen JHD905 Specifications

Power

power supply requirements	DC 12 Volts, Negative Ground
current drain	1.5 Ampere (max)

Audio

loading impedance	4 -8 ohms per channel
tone controls bass	±10 dB at 100 Hz
tone controls treble	±10 dB at 10 kHz

FM Tuner

tuning range	87.5-108.0
fm mono sensitivity	1.5uV
stereo separation @ 1 kHz	>25dB

AM Tuner

tuning range	522-1710
sensitivity	<30uV

Weather Band

sensitivity	<1uV

Amplifier

total system power	15 Watts Maximum
signal to noise	>70dB

Weight and Dimensions

chassis dimensions	131.6 (W) x 47.5 (D) x 86 (H)
