3
®
LXA600
Supplies and Tools Needed
Supplies:
Speaker wire (12 gauge for subwoofers, 16-18
gauge for other speakers)
Sheet metal type screws for mounting amplifier
Electrical tape
Solderless crimp connectors
1/2" thick plywood or particle board to mount
amplifier on
Tools:
Flat and Phillips screwdrivers
Wire cutters
Wire strippers
Cordless or standard electric drill and drill bit set
Crimping tool (if using solderless crimp connec-
tors)
12-volt test light or digital multimeter
Wire brush or scraper (to remove paint for a
good ground connection to vehicle)
Soldering iron and rosin core solder (if you're
going to solder your connections)
Amplifier Installation Kit:
You will need an amplifier installation kit to
install your amp properly because it contains all
the wire and connectors that you will need to
hook up your new amp right the first time. If you
want to purchase these items separately you
will need the following:
20-25 feet of 8 gauge wire
50 amp fuse or circuit breaker (to be hooked up
at the battery)
20 feet of 18 gauge wire for the remote turn-on/
power antenna lead
RCA cable (for signal input from radio)
20 feet for trunk installation
12 feet for under-seat installation
Two 8 gauge ring terminals (one for the battery
connection and the other for the ground connec-
tion at the amp). You may need two additional
ring terminals if you are using a circuit breaker
at the battery.
Two 8 gauge barrel connectors (you may need
these depending on what type of fuse holder
you have)
Two 8 gauge spade terminals (to hook up power
at the amp)
Four 12 gauge spade terminals for subwoofers
or 16-18 gauge spade terminals for other
speaker connections to amp
One 18 gauge spade terminal for remote turn-
on/power antenna lead

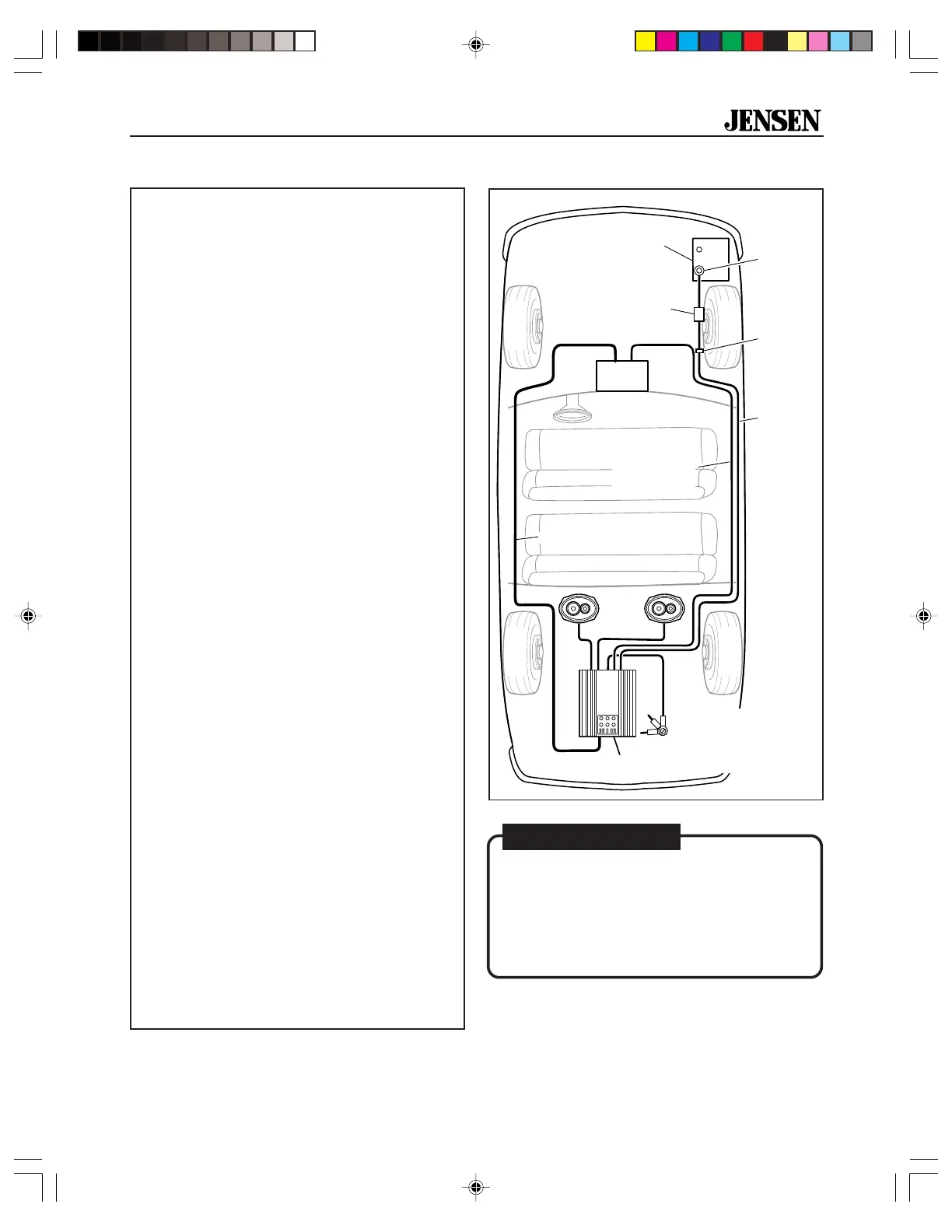

Routing Wires
Professional Tip
Bigger is better
Stereo installation dealers sell extra thick
power and speaker wires to ensure best
sound. Look for 8 gauge power wire, espe-
cially if you have several amplifiers.
Speakers
Amplifier
Battery
Connector
Fuse or
Circuit
Breaker
Battery
Power Wire
(8 gauge
wire or
larger)
Power Antenna
Turn-on Wire
(18 gauge wire)
RCA Cables
Ground Screw
Drill 1/8" hole in
chassis sheet metal
Use the same ground if
using multiple amplifiers
Grommet
To prevent
damage to
power wire
Receiver
6022Eamp.p65 02/08/01, 4:27 PM3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Jensen LXA600 and is the answer not in the manual?

Jensen LXA600 Specifications

Power Output IconPower Output
power output at 4 ohms75 Watts per channel RMS
power output at 2 ohms100 Watts per channel RMS
power output bridged at 4 ohms200 Watts per channel RMS
Audio Performance IconAudio Performance
frequency response20 Hz-20 kHz ± 3 dB
signal to noise ratio>100 dB
channel separation>65 dB at 1 kHz
Impedance IconImpedance
speaker impedance2-8 ohms
input impedance20 k ohms
crossover frequencies40-240 Hz
Power Requirements IconPower Requirements
power requirement14.4 VDC (10.8-15.6 VDC allowable)
fuse requirementstwo 25 amp blade-type fuses
Weight and Dimensions IconWeight and Dimensions
dimensions3" x 11.125" x 13" (76mm x 283mm x 330mm)
