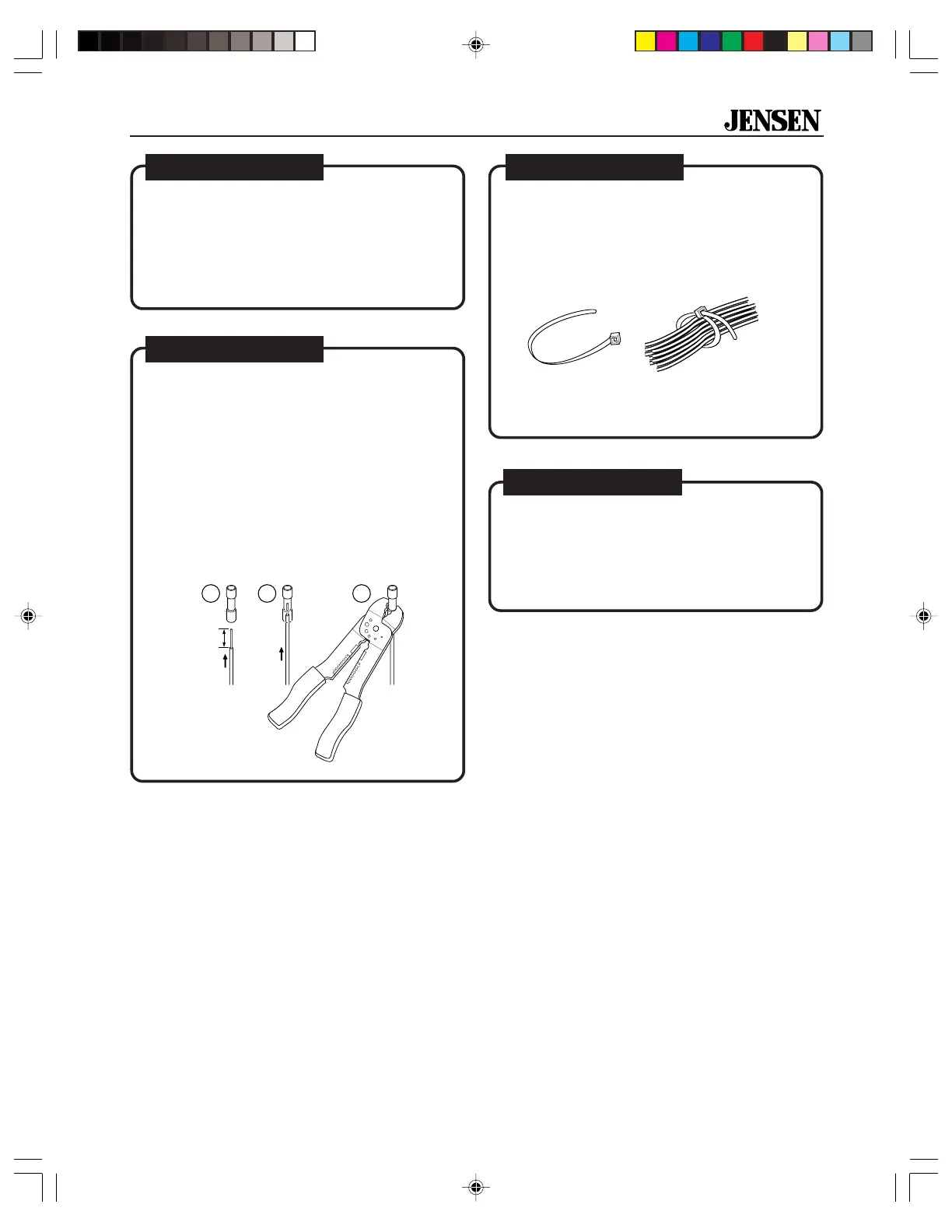

Professional Tip
Crimp Connections
Purchase crimp connectors and crimping
tool. Connectors are color coded.
1. Strip 1/4 inch (6mm) of insulation from
both wires.
2. Insert into connector.
3. Crimp tightly.
You can make permanent splices (using butt
connectors) or select connectors that can be
removed and reinstalled.
321
Strip wire
1/4" (6mm)
Speaker and Power Wires
Do not run speaker and power wires next to
each other. Power wires can generate a
“siren” sound in the speakers. Run speaker
and power wires on opposite sides of the car.
Professional Tip
Professional Tip
Securing Wires
Be proud of your installation! Use wire ties to
bundle wires together when possible. (But
never bundle speaker wires and power wires
together!)
Secure loose wires to the vehicle to make
sure they don’t rub or rattle.
Installing in Trunk
When installing the amplifier in the trunk, run
the power wires along the same path as the
other vehicle wiring. Many cars have insulated
channels for wiring. You will have to remove
the door sill trim and the carpet.
Professional Tip
6022Eamp.p65 02/08/01, 4:27 PM11

Jensen LXA600 Specifications

Power Output

power output at 4 ohms	75 Watts per channel RMS
power output at 2 ohms	100 Watts per channel RMS
power output bridged at 4 ohms	200 Watts per channel RMS

Audio Performance

frequency response	20 Hz-20 kHz ± 3 dB
signal to noise ratio	>100 dB
channel separation	>65 dB at 1 kHz

Impedance

speaker impedance	2-8 ohms
input impedance	20 k ohms
crossover frequencies	40-240 Hz

Power Requirements

power requirement	14.4 VDC (10.8-15.6 VDC allowable)
fuse requirements	two 25 amp blade-type fuses

Weight and Dimensions

dimensions	3" x 11.125" x 13" (76mm x 283mm x 330mm)
