Jensen LXA600 User Manual

4
®
LXA600

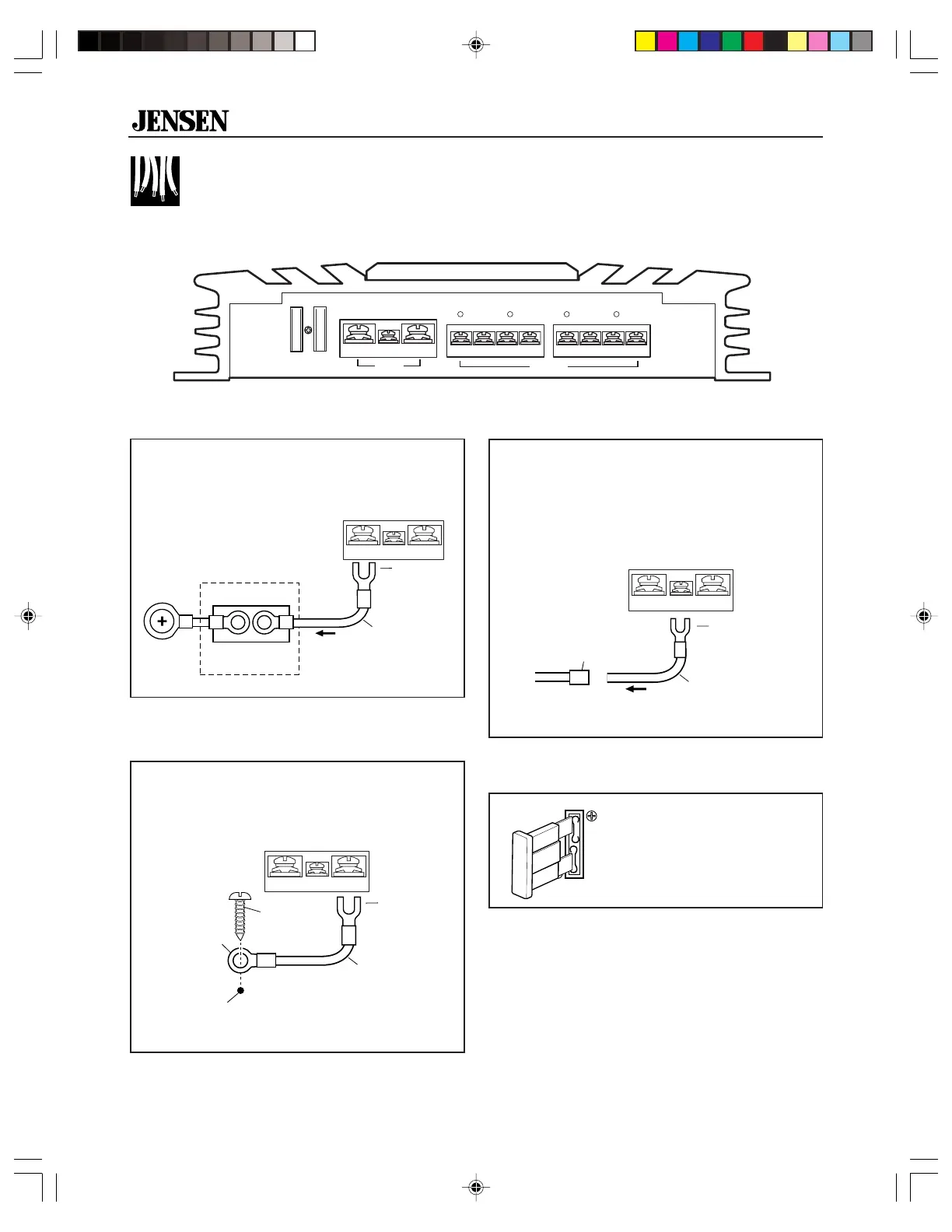

Wiring
Power and Outputs
Remote Terminal (RMT +12V)Power Terminal (BATT +12V)
Connect directly to the vehicle battery+
terminal with 8 gauge wire (minimum).
Ground Terminal (GND)
Connect to a good chassis ground. The ground
connection should be to clean, unpainted metal
to provide a good electrical connection.
Connect the radio power antenna lead from
the receiver to the amplifier remote (RMT)
terminal. This turns the amplifier on whenever
the receiver is turned on. If a power antenna
lead is not available, connect this wire to the
radio or accessory fuse.
Use only two 25 amp
blade-type fuses.
Fuses
25A
FUSE
Ring
Connector
Drill 1/8" hole
in chassis
sheet metal
Sheet Metal
Screw
(supplied)
Spade
Connector
8 Gauge
Wire
RMT GND+ 12V
To Receiver
Power
Antenna Lead
Butt
Connector
(not supplied)
Spade
Connector
18 Gauge
Wire
RMT GND+ 12V
Spade
Connector
8 Gauge
Wire
To Battery+
Terminal
50 amp Fuse
or Circuit Breaker
Battery
Terminal
Adapter
Install as close
to the battery
as possible
Not Supplied
RMT GND+ 12V
RMT
POWER
GND+ 12V
SPEAKER
A-CH B-CH C-CH D-CH
+ –
–
+ + –
–
+
FUSE
25A 25A
6022Eamp.p65 02/08/01, 4:27 PM4

Jensen LXA600 Specifications

Power Output

power output at 4 ohms	75 Watts per channel RMS
power output at 2 ohms	100 Watts per channel RMS
power output bridged at 4 ohms	200 Watts per channel RMS

Audio Performance

frequency response	20 Hz-20 kHz ± 3 dB
signal to noise ratio	>100 dB
channel separation	>65 dB at 1 kHz

Impedance

speaker impedance	2-8 ohms
input impedance	20 k ohms
crossover frequencies	40-240 Hz

Power Requirements

power requirement	14.4 VDC (10.8-15.6 VDC allowable)
fuse requirements	two 25 amp blade-type fuses

Weight and Dimensions

dimensions	3" x 11.125" x 13" (76mm x 283mm x 330mm)
