Jensen LXA600 User Manual

5
®
LXA600

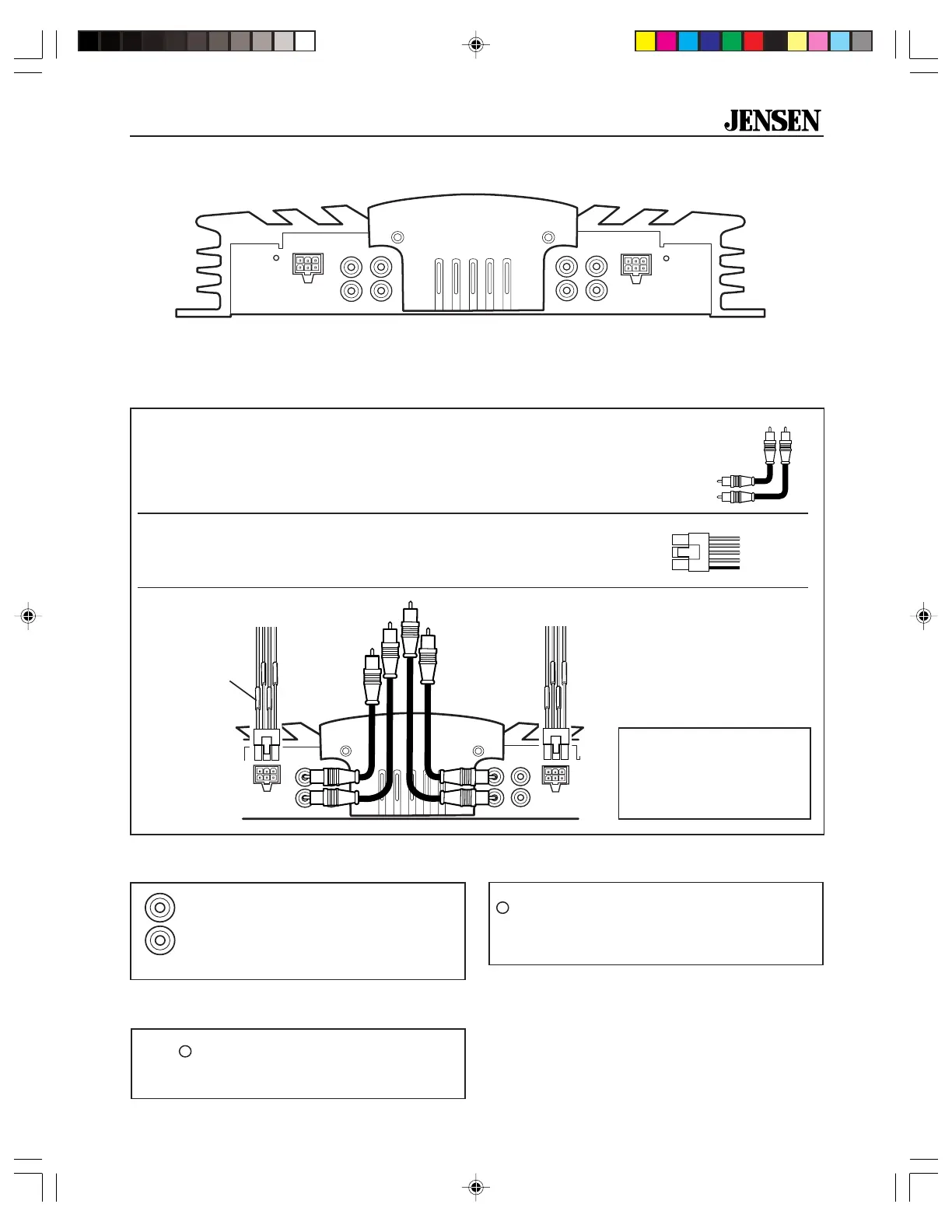

Inputs and Controls
Input Wiring
Low Level Input
Use a pair of shielded stereo audio cables with RCA type jacks. Most trunk-mount
amplifier installations require 20-foot RCA cables. Most under-seat and pickup truck
installations use 12-foot cables.
Connect RCA cables from your receiver to the RCA input jacks on the amplifier.
High Level Input
Connect left and right speaker wires coming from radio to high level input plug
as shown.
Inputs may be high level (from the receiver's speaker) or low level (from special low level outputs). Low
level input is preferred for best performance.
POWER
HI INPUT
LOW INPUT
A
A
PROTECT
PASS
HI INPUT
B
B
LOW INPUT
C
C
PASS
D
D
HI INPUT
LOW INPUT
A
A
PAS S
HI INPUT
B
B
LOW INPUT
C
C
PASS
D
D
White-Left (+)
White/Black-Left (–)
Gray-Right (+)
Gray/Black-Right (–)
Black (ground)
The power light comes on when
12 volt power is available at both
the battery +12 volt and RMT wires.
Power Light
The red protect light comes on
when the amplifier shuts down
from overheating or a short circuit
(speaker failure).
Protect Light
Pass Output
Use pass through (PASS) connectors
for adding other amplifiers.
POWER
PROTECT
PASS
Important
Use only the low level or
high level input, do not
use both at one time.
Splice
(as necessary)
6022Eamp.p65 02/08/01, 4:27 PM5

Jensen LXA600 Specifications

Power Output

power output at 4 ohms	75 Watts per channel RMS
power output at 2 ohms	100 Watts per channel RMS
power output bridged at 4 ohms	200 Watts per channel RMS

Audio Performance

frequency response	20 Hz-20 kHz ± 3 dB
signal to noise ratio	>100 dB
channel separation	>65 dB at 1 kHz

Impedance

speaker impedance	2-8 ohms
input impedance	20 k ohms
crossover frequencies	40-240 Hz

Power Requirements

power requirement	14.4 VDC (10.8-15.6 VDC allowable)
fuse requirements	two 25 amp blade-type fuses

Weight and Dimensions

dimensions	3" x 11.125" x 13" (76mm x 283mm x 330mm)
