Jensen LXA600 User Manual

2
®
LXA600
Amplifier Location
The LXA600 amplifier’s compact design allows
greater flexibility in mounting. It can be
mounted under a seat or in the trunk.
When selecting a location, remember that
amplifiers generate heat. Select a location
where air can circulate around the amplifier.
Do not cover the LXA600 with carpets or
enclose it behind interior trim panels. Do not
mount the amplifier in an inverted or upside
down configuration. Every installation will be
a bit different based upon vehicle design.
Check all locations and placements carefully
before making any cuts or connections.
Important
Allow air circulation around the amplifier.
Installation

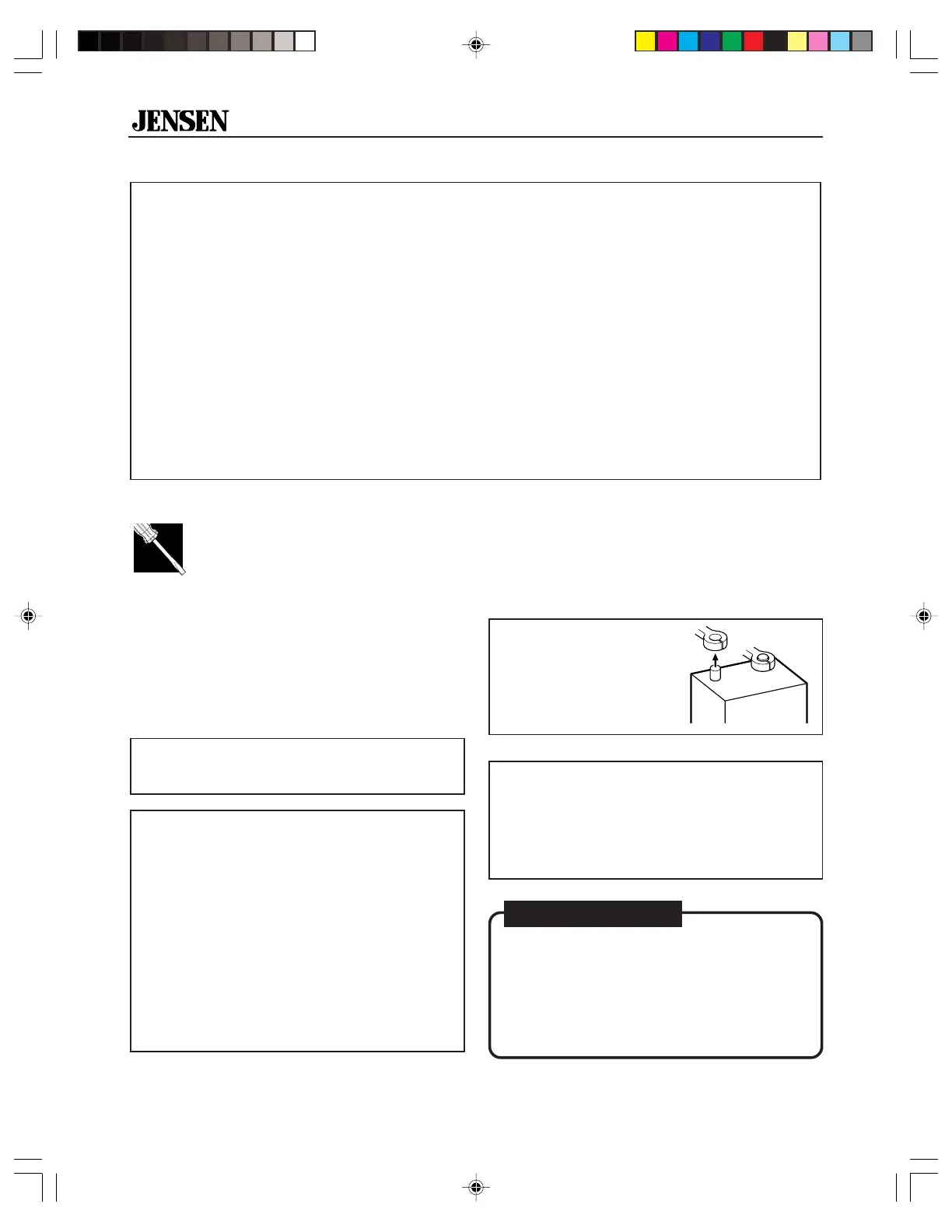

Disconnect Battery
Before you begin, always
disconnect the battery
negative terminal.
+
–
Professional Tip
Amplifier Installation Kit
Your installation job will be much easier if you
purchase an amplifier installation kit. These
kits often include low-level RCA cables, extra
large power and ground wires, a fuse or circuit
breaker and connector for the battery.
Before You Begin Installation
Before you begin, you will need tools, supplies
and adapters. It is best to make sure you have
everything you need before you start. There is a
list of supplies and tools on the next page.
Features
• 2 x 200 watts RMS bridged into a 4 ohm
load
• Bridgeable design to direct full power to two
speakers
Audio Amplifiers
Amplification offers two advantages:
• The LXA600 amplifier can make the sound
of your receiver fuller and richer, even at low
volume levels.
• Many automotive receivers provide four to
10 watts at maximum power. At 75 watts
RMS per channel (200 watts bridged), the
LXA600 can be played substantially louder,
permitting the use of more powerful
speakers.
The Jensen LXA600 power amplifier is a four-
channel 600-watt total system power automotive
amplifier. The LXA600 includes:
• RCA inputs
• High level inputs
• Continuously variable low pass or high
pass crossover
• Bass boost feature
• Remote turn on/off
• Electronic protection circuitry to protect the
amplifier from short circuit, DC offset and
thermal overload
• Unique, super-efficient heat sink design
• 4 x 75 watts RMS per channel
(4 x 125 watts peak)
Important
If wiring connections are made wrong, the unit
will not operate properly and it could be
damaged. Follow the installation instructions
carefully, or have the installation handled by
an experienced technician.
6022Eamp.p65 02/12/01, 2:53 PM2

Jensen LXA600 Specifications

Power Output

power output at 4 ohms	75 Watts per channel RMS
power output at 2 ohms	100 Watts per channel RMS
power output bridged at 4 ohms	200 Watts per channel RMS

Audio Performance

frequency response	20 Hz-20 kHz ± 3 dB
signal to noise ratio	>100 dB
channel separation	>65 dB at 1 kHz

Impedance

speaker impedance	2-8 ohms
input impedance	20 k ohms
crossover frequencies	40-240 Hz

Power Requirements

power requirement	14.4 VDC (10.8-15.6 VDC allowable)
fuse requirements	two 25 amp blade-type fuses

Weight and Dimensions

dimensions	3" x 11.125" x 13" (76mm x 283mm x 330mm)
