XCH 6RF

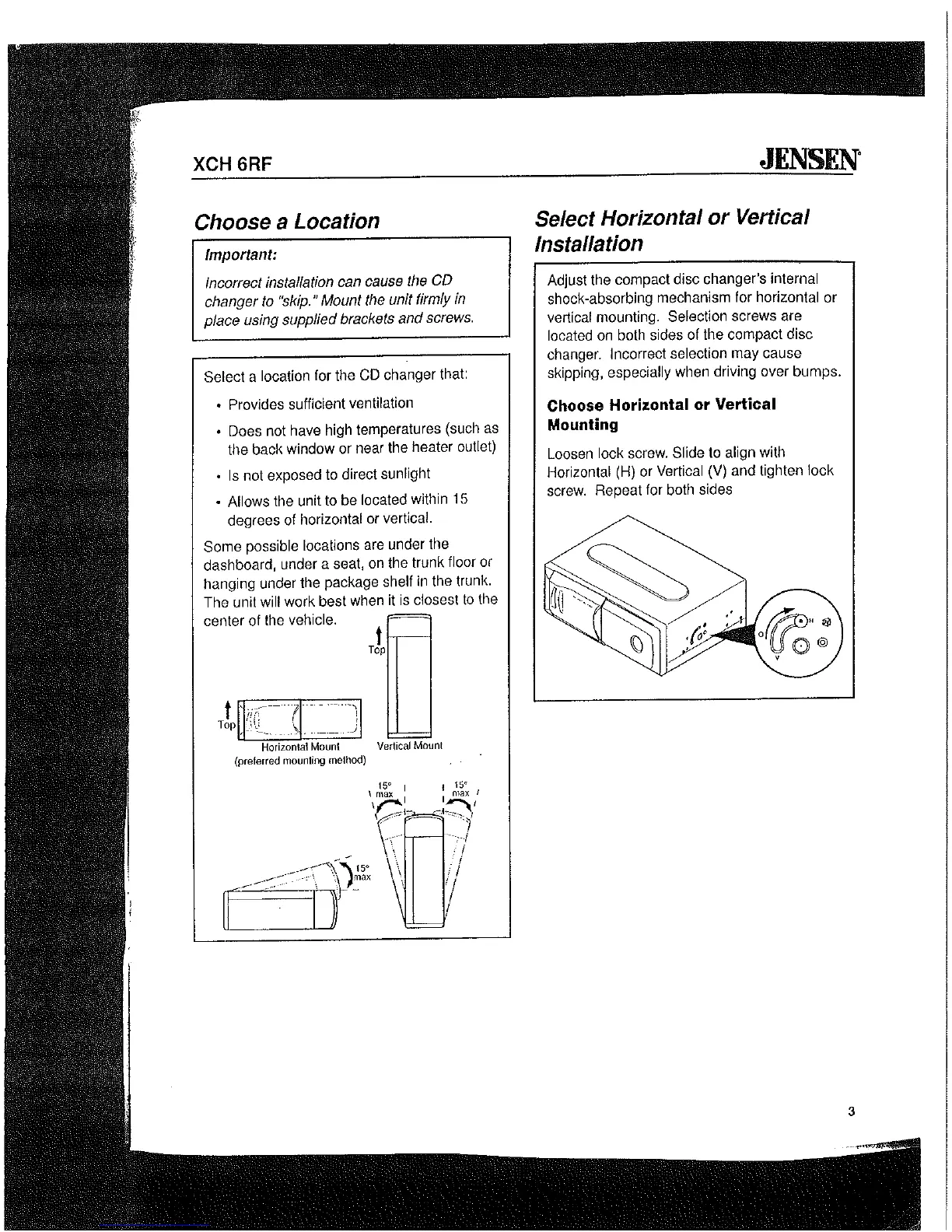

Choose a Location
Important:
Incorrect instal/ation can cause the CD
changer to "skip." Mount the unit firmly in
place using supplied brackets and screws.
Select a location for the CD changer that:
• Provides sufficient ventilation
• Does not have high temperatures (such as
the back window or near the heater outlet)
• Is not exposed to direct sunlight
• Allows the unit to be located within 15
degrees of horizontal or vertical.
Some possible
locations are under the
dashboard, under a seat,
on the trunk floor or
hanging under the package shelf in the trunk.
The unit
will work best when it is closest to the
center of the vehicle. P==
t ~
Top
t Il;;;-ll-.~"I
Top ~;iL_, ___ .'~. -' .
Horizonlal Mount Verti~unt
(preferred mounting method)
JENSEN'
Select Horizontal or Vertical
Installation
Adjust the compact disc changer's internal
shock-absorbing mechanism for horizontal or
vertical mounting. Selection screws are
located on both sides of the compact disc
changer. Incorrect selection may cause
skipping, especially wilen driving over bumps.
Choose Horizontal or Vertical
Mounting
Loosen lock screw. Slide to align with
Horizontal (H) or
Vertical (V) and tighten lock
screw. Repeat for both sides
3
