Section 4: Operation
5376000277 4-39

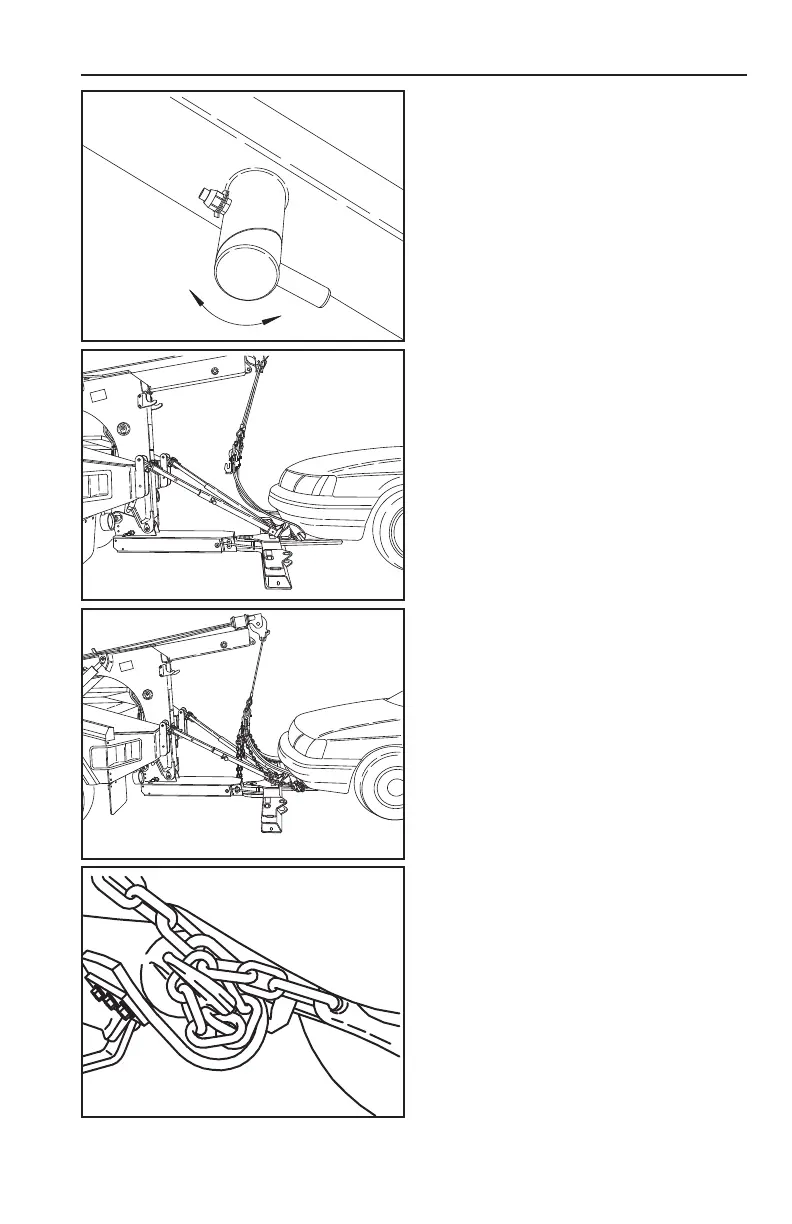

12. Rotate the “CAM” handles on
the hold back bars 180° to the
open position.
13. Maneuver the sling under the
vehicle to be towed, far enough
under so the vehicle will ride on
the rubber belts.
14. Attach hook-up chains. The
chain J hooks must be secured
fi rmly around the axle or the
frame of the towed vehicle.
When fastening the J hook, be
sure that it is attached to the
towed vehicle in such a manner
as to prevent any damage to the
brake lines or other functional
parts of the vehicle.
15. With the chain securely fastened
in the hook on each side of the
bottom bar assembly, the chain
should then be wrapped around
the bottom bar. Secure the
remaining chain to the hook at
the top of the tow sling.
